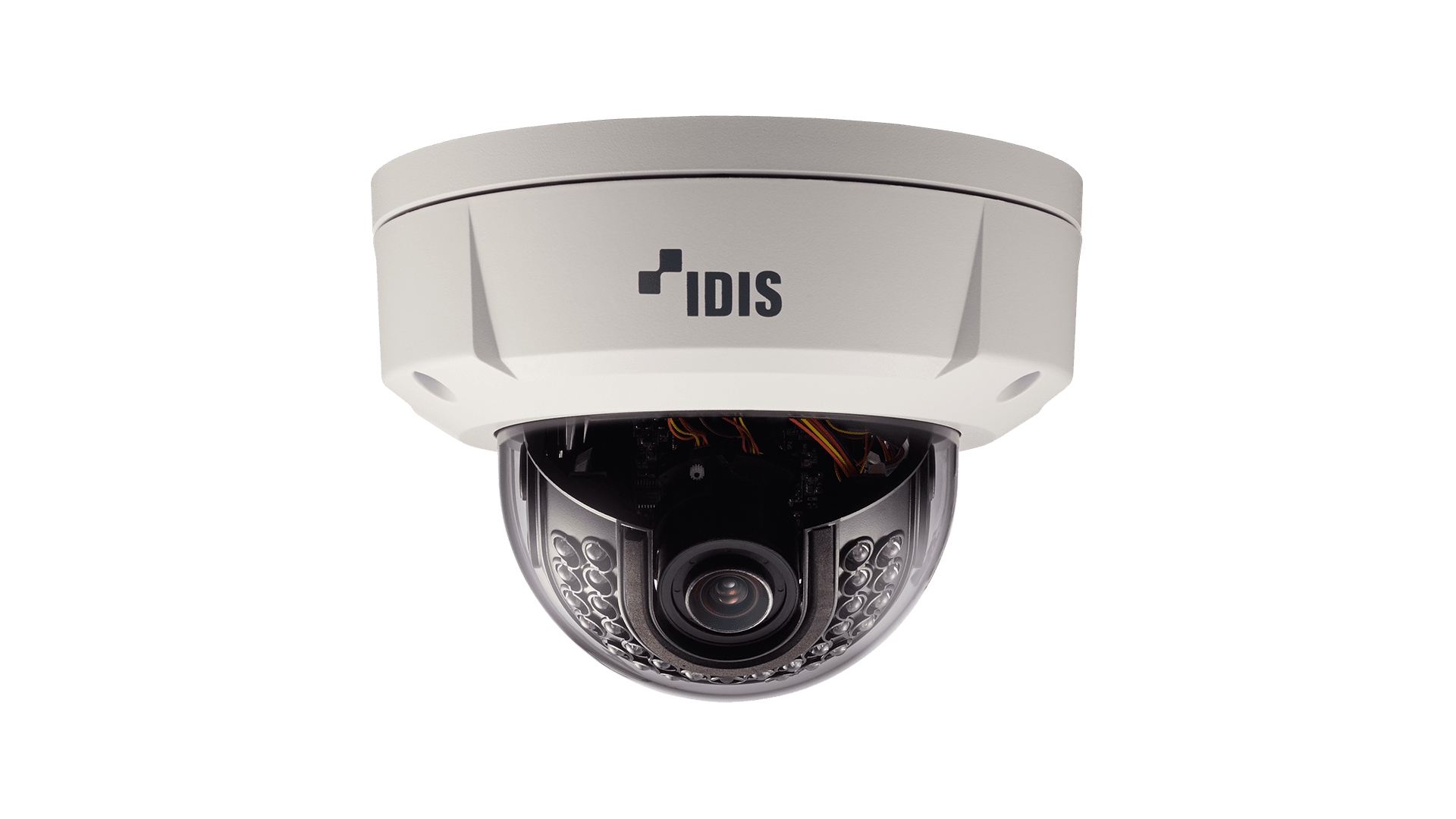

DC-D2233WHX

Full HD Vandal-resistant IR Dome Camera
  • Easy installation with DirectIP NVR
  • Full HD (1080p) resolution
  • Motorized Vari-focal(f=3.3 - 10mm)
  • micro SD/SDHC
  • two-way audio
  • Alarm in / out
  • Vandal proof/IP66 supports
  • Built-in heater
  • PoE(IEEE 802.3af class 3), 12V DC
  • Day&night (ICR)
  • True WDR
  • DIS (Digital Image Stabilzer)
  • IR LED (Distance : 20m)
  • 3-axis mechanical design for installation
  • Supports ONVIF

DC-D2233WHX

Full HD Vandal-resistant IR Dome Camera
  • Direct IP

  • PoE

  • Day & Night

  • ONVIF

CASE STUDY

Retail

Education

Commercial

Residential

Video
Image Sensor 1/2.8" CMOS
Max. Resolution 1920 x 1080
Scanning Mode Progressive Scan
Lens Type Motorized Vari-focal
Focal Length f=3.3 - 10mm
Aperture F=1.3 - 2.5
Iris Control DC Auto Iris
Angular Field of View Wide : 99.8º(H), 52.2º(V), 118.2º(D) Tele : 33.5º(H), 18.6º(V), 38.3º(D)
Pan/Tilt Range Pan: -176° ~ 176°, Tilt: 0° ~ 66°, Rotate: -90° ~ 90°
Min. Illumination COLOR : 0.05 lux@F1.3 B/W : 0 lux (IR LED ON)
Dynamic Range 120dB (True WDR)
Electronic Shutter Speed Auto / Manual (1/30 ~ 1/10000), Anti-Flicker, Slow Shutter ( 1 ~ 1/5, 1/7.5, 1/15)
Day and Night IR cut filter with auto switch
IR Distance (LEDs) 20 m / 65.6 ft (28 ea)
Image Setting Configurable Exposure, White Balance, Sharpness
Digital Noise Reduction Configurable 2DNR/3DNR
Backlight Compensation -
Mirroring / Pivot Horizontal / Vertical
Image Stabilizer Yes (DIS)
De-fog
Privacy Masking 16 Zones
Intelligent Video Video Motion Detection, Face Detection,  Active Tampering Alarm
Video Out 1 BNC(Accessory)
Network
Video Compression H.264 (MP), M-JPEG
Intelligent Codec -
Bitrate Control H.264 - VBR
Audio Compression G.726, G.711 u-Law, G.711 a-Law
Two-way Audio Yes
IP Camera Protocol DirectIP™ Mode : DirectIP Compatibility Mode : IDIS ONVIF Profile S
Max. Frame Rate DirectIP™ Mode : 30ips : 1920 x 1080(WDR) Compatibility Mode : 60ips : 1920 x 1080 30ips : 1920 x 1080(WDR)
Supports Resolution DirectIP™ Mode : 1920x1080, 1280x720, 704x480, 640x360, 352x240 Compatibility Mode : 1920x1080, 1280x720, 704x480, 352x240
Multi-video Streaming DirectIP™ Mode : Quadruple Streaming Compatibility Mode : Quadruple Streaming
Network Protocols DirectIP™ Mode : DirectIP Protocol Compatibility Mode : RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP
Security DirectIP™ Mode : SSL Encryption Compatibility Mode : Multi-user Authority, IEEE 802.1x  IP Filtering, HTTPS, SSL Encryption
Remote Access Client DirectIP™ Mode : DirectIP NVR Connection Compatibility Mode : IDIS Web, IDIS Mobile, IDIS Solution Suite
Ethernet RJ45 (10/100/1000BASE-T)
Recording Session Buffer Yes (Up to 60MB)
Edge Storage micro SD/SDHC, Smart Failover (Up to 32GB)
ALARM AND EVENT
Trigger Event Motion Detection, Face Detection, Alarm in, Tampering
Event Notification Remote S/W, Email (with Image)
Audio In/ Out Line-in 1ea / Line-out 1ea
Alarm In / Out Input 1ea / Output 1ea
Environmental
Vandal Proof Casing IK10
Outdoor Ready IP66, Heater
Operating Temperature -40°C ~ +50°C (-40°F ~ +122°F)
Operating Humidity 0% ~ 90%
Electrical
Power Source 12VDC, PoE (IEEE 802.3af Class 3)
Power Consumption HEATER ON 12V=, 1.6A, 19.2W HEATER OFF 12V=, 0.6A, 7.2W PoE, IEEE 802.3af(Class 3)
Approval FCC, CE, KC
Mechanical

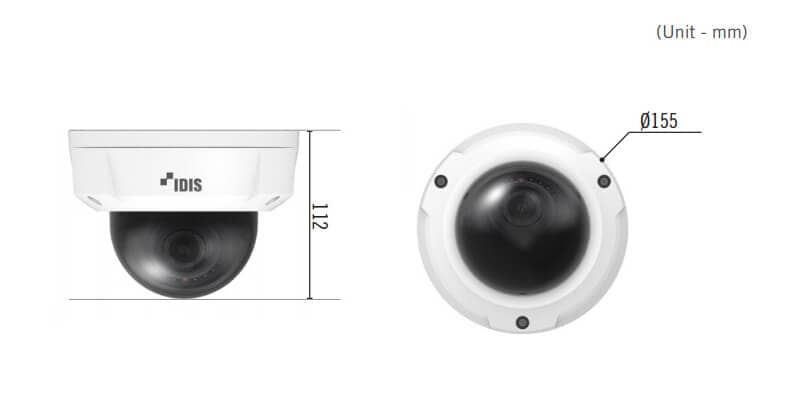

Dimensions (Ø x H) Ø155mm x 111.5mm (Ø6.11" x 4.39")
Weight 0.9 kg
