DC-T4236HRX

Full HD IR Bullet Camera with Heater
/ NDAA Compliant
  • Easy installation with DirectIP NVR
  • Full HD (1080p) resolution
  • Motorized Vari-focal lens (f=2.8 - 12mm)
  • micro SD/SDHC/SDXC
  • Two-way audio
  • Alarm in / out
  • IK10 / IP67 supports
  • Built-in heater
  • PoE (IEEE 802.3af Class 3), 12V DC
  • Day and night (ICR)
  • True wide dynamic range (WDR)
  • IR LED (Distance : 30m / 98.4ft)
  • 3-axis mechanical design for installation
  • Supports ONVIF

DC-T4236HRX

Full HD IR Bullet Camera with Heater
/ NDAA Compliant
  • PoE

  • Motorized Vari-focal lens

  • Weather & Vandal Proof

  • ICR

Video
Image Sensor1/2.8” CMOS
Max. Resolution1920 x 1080
Scanning ModeProgressive Scan
Lens TypeMotorized Vari-focal
Focal Lengthf=2.8-12mm
ApertureF 1.4~2.8
Iris ControlDC IRIS
Angular Field of ViewWide : 98°(H) 51°(V) 116°(D)
Tele : 33°(H) 19°(V) 38°(D)
Min. IlluminationCOLOR : 0.1 lux @ F1.4
B/W : 0 lux (IR LED ON)
Dynamic Range120dB (True WDR)
Electronic Shutter SpeedAuto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15)
Day and Night IR cut filter with auto switch
IR Distance (LEDs)30m / 98.4 ft(6 ea)
Image SettingExposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control)
Backlight CompensationOn / Off
Mirroring / PivotHorizontal / Vertical / Pivot
Image Stabilizer-
De-fog-
Privacy Masking8 Zones
Intelligent VideoVideo Motion Detection, Active Tampering Alarm, Trip Zone
Video Out -
Network
Video Compression H.265, H.264 (MP) M-JPEG
Intelligent CodecSupported
Bitrate ControlH.265 - CBR / VBR, H.264 - CBR / VBR
Audio CompressionADPCM 16K, G.726, G.711 u-Law, G.711 a-Law
Two-way AudioYes
IP Camera Protocol DirectIP 2.0, ONVIF Profile S
Max. Frame Rate30ips : 1920 x 1080(WDR)
Supported Resolution1920x1080, 1280x720, 640x360, 352x240
Multi-video StreamingQuadruple Streaming
Network Protocols DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp, SNMPv2
Security SSL Encryption, Multi-user Authority, IEEE 802.1x
IP Filtering, HTTPS
Remote Access Client DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite
EthernetRJ45 (10/100BASE-T)
Recording Session Buffer (NLTSrec)Yes (Up to 60MB)
Edge Storagemicro SD/SDHC/SDXC, Smart Failover (Up to 256GB)
ALARM AND EVENT
Trigger EventMotion Detection, Alarm in, Audio Detection, Tampering, Trip Zone
Event NotificationRemote S/W, Email (with Image)
Audio In/ Out1 / 1
Alarm In / Out1 / 1
Environmental
Vandal Proof CasingIK10
Outdoor ReadyIP67, Heater
Operating Temperature-40°C ~ 55°C (-40°F ~ 131°F)
*Starting up at above -20°C (-4°F)
Operating Humidity0% ~ 90%
Electrical
Power Source12VDC, PoE IEEE 802.3af (Class 3)
Power Consumption12V=, 0.78A, 9.3W
PoE, IEEE 802.3af (Class 3), 8.5W
ApprovalFCC, CE, KC
Mechanical

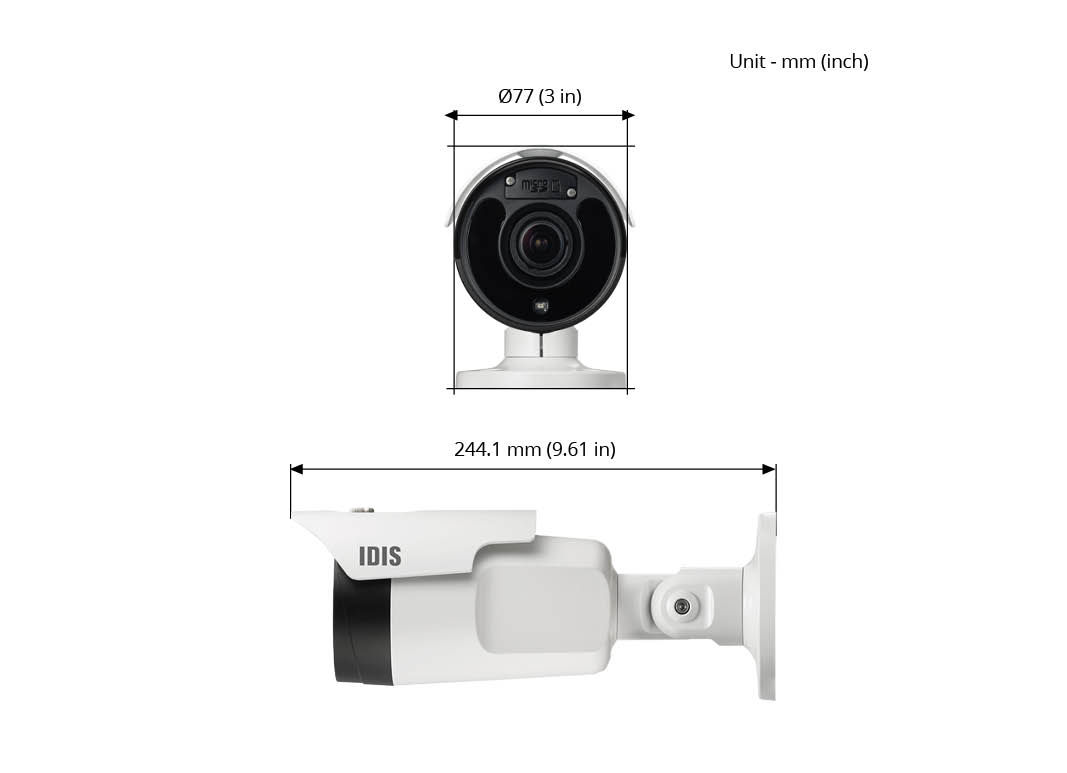

Dimensions (W x H)Φ 77mm X 244.1mm (Φ 3” x 9.61”)
Weight0.84 kg
Manual DC-T4236WRX/T4236HRX Quick Guide v1.3
Manual DC-T4236WRX/T4236HRX Operation Manual v1.3
Manual DC-T4236WRX/T4236HRX Installation Manual v1.3
A&E Specification DC-T4236HRX A&E Specification
Software DC-T4236 Firmware v1.5.0 _ JAPAN
Software DC-T4236 Firmware v1.5.0
Brochure DC-T4236HRX
