Full HD IR Bullet Camera
2MP
Motorized focus Lens
Weather Proof
IR LED
True WDR
Easy Installation
Two-way audio
IP67
PoE
IR Cut Filter Removable
NDAA & TAA Compliant
TAACompliant
| Video | |
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | Motorized Vari-focal |
| Focal Length | f=2.8-12mm |
| Aperture | F 1.4~2.8 |
| Iris Control | DC IRIS |
| Angular Field of View | Wide : 98°(H) 51°(V) 116°(D) Tele : 33°(H) 19°(V) 38°(D) |
| Min. Illumination | COLOR : 0.1 Lux @ F1.4, B/W : 0 Lux (IR LED ON) |
| S/N Ratio | More than 45dB |
| Dynamic Range | 120dB |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | IR cut filter with auto switch |
| IR Distance (LEDs) | 30m / 98.4 ft(6 ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | On / Off |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | - |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | - |
| Network | |
| Video Compression | H.265, H.264 (MP) M-JPEG, |
| Intelligent Codec | Supported |
| Video Compression Level (Quality) | Basic, Standard, High, Very High |
| Bitrate Control | H.265 - CBR / VBR, H.264 - CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S |
| Max. Frame Rate | 30ips : 1920 x 1080(WDR) |
| Supported Resolution | 1920x1080, 1280x720, 640x360, 352x240 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | SSL Encryption, Multi-user Authority, IEEE 802.1x ,IP Filtering, HTTPS |
| Remote Access Client | DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| ALARM AND EVENT | |
| Trigger Event | Motion Detection, Alarm in, Audio Detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio In/ Out | 1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67 |
| Material | Metal |
| Operating Temperature | -20°C ~ +55°C (-4°F ~ +131°F), Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | PoE (IEEE 802.3af Class 3), DC12V |
| Power Consumption | 12V=, 0.78A, 9.3W PoE, IEEE 802.3af (Class 3), 8.5W |
| Approval | FCC, CE, KC |
| Mechanical | |

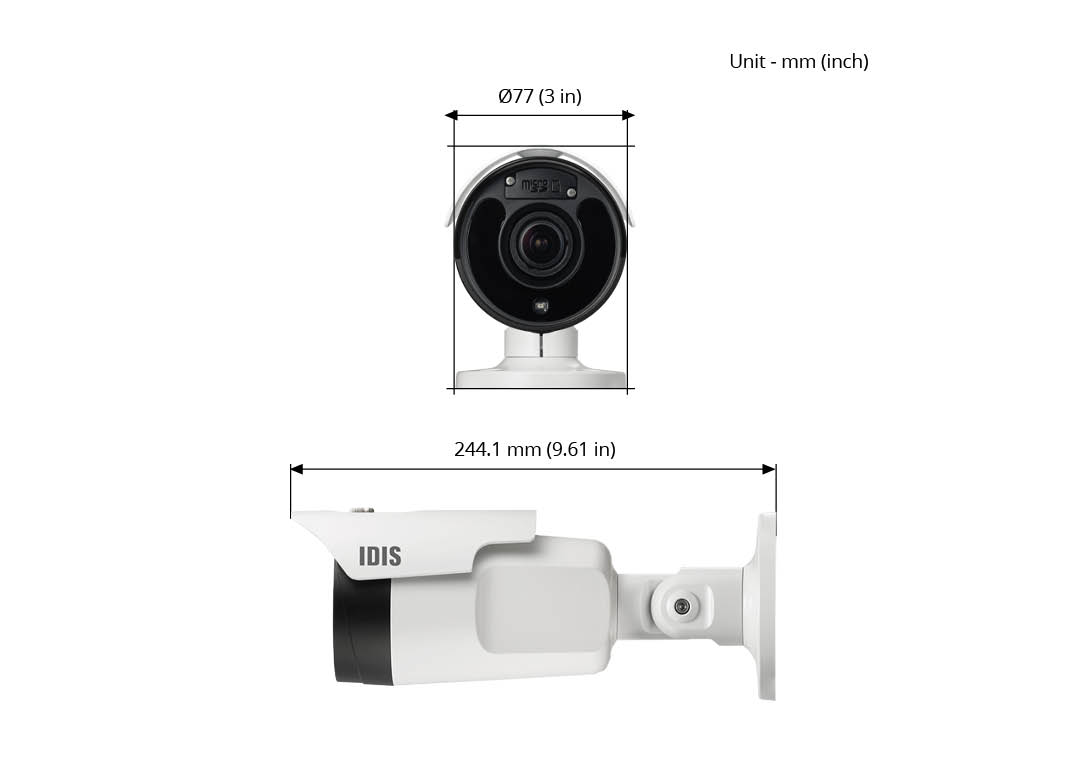

| Dimensions (W x H) | Φ 77mm X 244.1mm (Φ 3" x 9.61") |
| Weight | 0.84 kg |
Wall mount bracket and matching adapter combination for vertical exterior or interior walls.
Ceiling mount and pendant adapter combination for overhead installation.
Corner mount adapter combination for structure edges and corners.
Pole mount adapter combination for vertical cylindrical or square poles.
