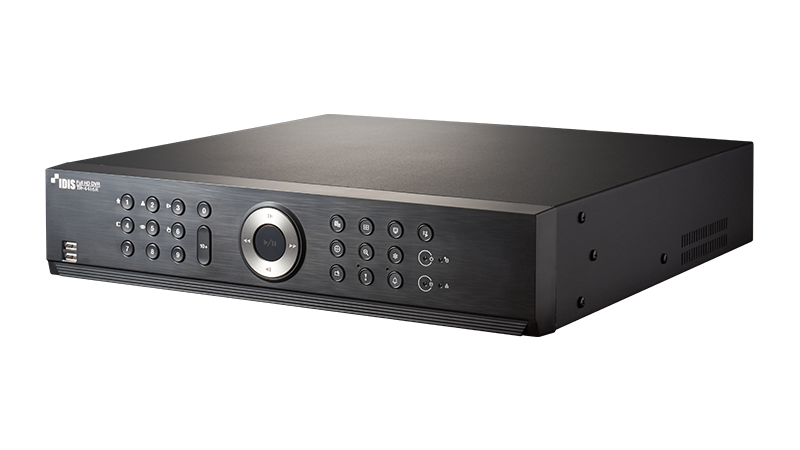

TR-4416R

DirectCX 16channel Recorder
  • Supports Multi Standard Analog Camera
  • H.265 encoding, Intelligent Codec Support
  • Up to 480ips Full HD recording
  • Up to 5MP resolution support
  • UHD Display with HDMI output
  • Full HD Display with HDMI and VGA output
  • Supports CVBS Spot Monitor
  • Long transmission distance over coax cable
  • Supports OSD control over Coax
  • Expandable up to 48TB using 4 SATA interfaces and 1 eSATA storage interface
  • Supports RAID 1
  • Supports one click network configuration through FEN service
VIDEO

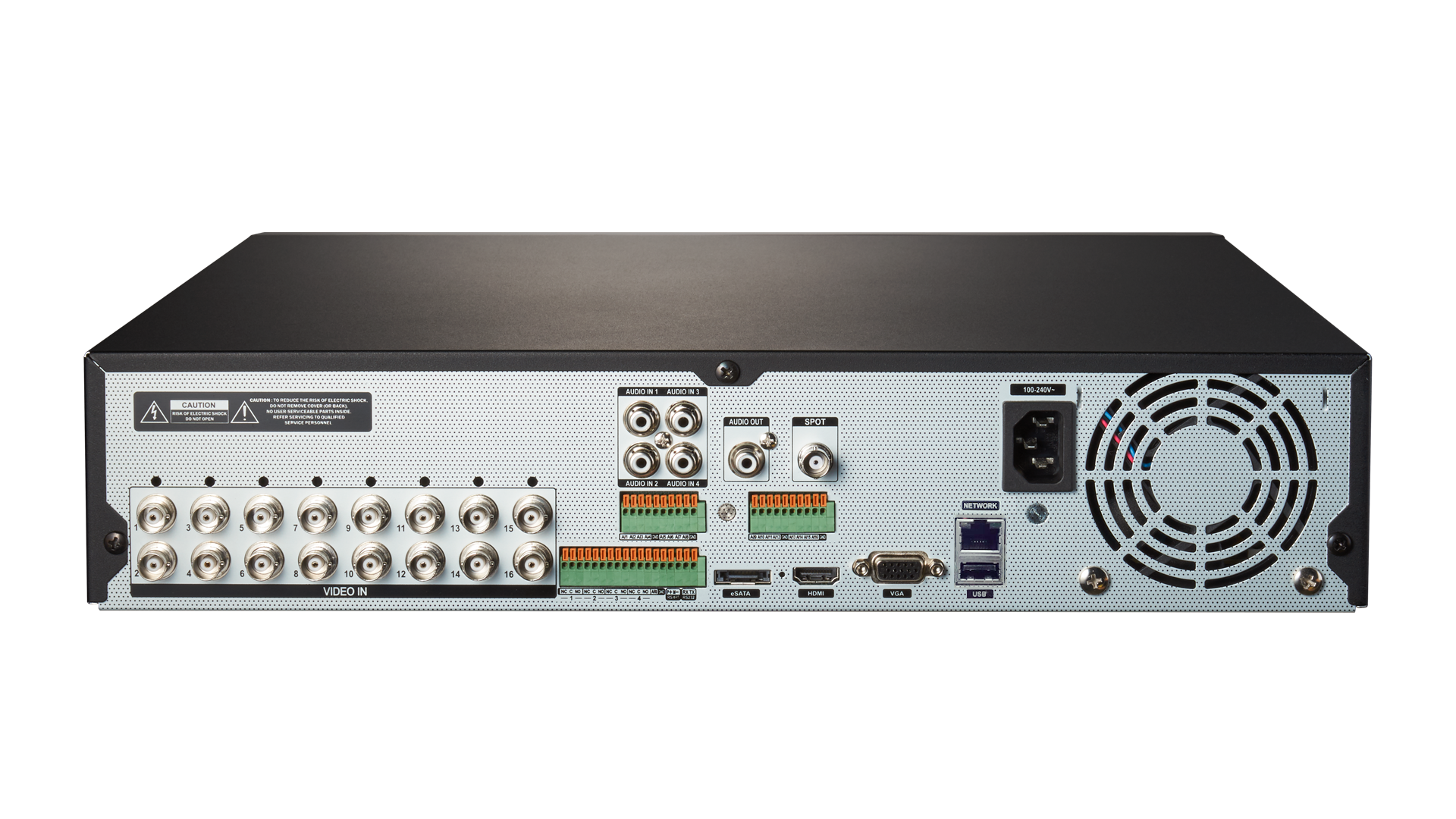

Video Inputs16 BNC (Multistandard Analog)
Supported Camera Types5MP, 4MP, 3MP, 1080P30, 1080P25, 720P30, 720P25, CVBS(NTSC / PAL)
Video Outputs1 HDMI, 1 VGA, 1 BNC(Spot)
Display ResolutionHDMI : 3840 x 2160, 1920 x 1080, 1280 x 1024

VGA : 1920 x 1080, 1280 x 1024

Composite : 720x480(NTSC) , 720x576(PAL)
Display SpeedUp to 480ips
Digital Zoomx2 ~ x12
RECORDING
Recording Resolution5MP, 4MP, 3MP, 1920x1080, 1280x720, 960x480,720x480,960x240, 720x240 480x240, 360x240
Frame Rate480ips@1080P
CompressionH.265, H.264, Intelligent Codec
Recording ModeTime-Lapse, Event, Pre-Event, Panic
Trigger EventsAlarm in, Motion detection, Video loss, Text-in
PLAYBACK
Performance8ch 1080P synchronous playback
Search ModeTime-lapse, Event log, Motion, Text-in
Digital Zoomx2 ~ x12
STORAGE
HDDSATA x4, eSATA x1, RAID 1 supported
Total CapacityThe maximum HDD capacity is updated as new HDD models become available.
For the most recent information, please check here
Data Export DeviceUSB HDD, USB Stick
NETWORK
Client ConnectionGigabit Ethernet x1
Transmission Speed120ips@Full HD
Remote Data ExportIDIS Player, AVI, JPG
Event NotificationEmail (attach clip (.cbf)), Callback to Remote S/W, Push notification (IDIS Mobile), NetFS(FTP)
Two-way AudioYes
Client ViewerIDIS Center, IDIS Mobile, IDIS Web, IDIS Solution Suite
INTERFACE
Audio In/ Out4 RCA / 1 RCA 1 HDMI
Alarm In / Out16 In / 4 Relay Out
Alarm Reset In1
Serial InterfaceRS232, RS485 (Terminal Block), USB 2.0, USB 3.0

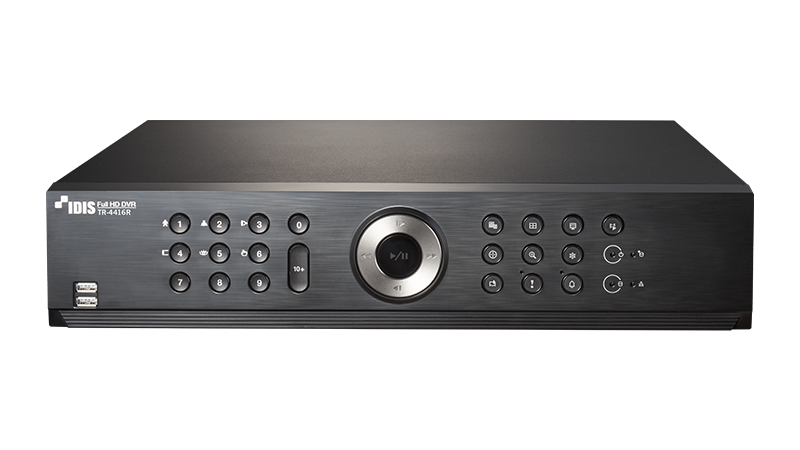

User InterfaceMouse, IR Remote Control, Front Button, Network Remote Keyboard
GENERAL
Operating SystemEmbedded Linux
UNIT Dimensions (W x H x D)430mm x 88mm x 413 mm (16.9" x 3.5" x 16.3")
Unit Weight5.6kg (12.3 lbs)(with 2 HDD)
Working Temperature0°C to 40°C (32℉ ~ 104℉)
Operating Humidity0% ~ 90%
Power Input100-240V~, 50/60Hz, 1.0-0.5A, 76W
Power Consumption100-240V~, 50/60Hz, 1.2-0.6A, 76W
ApprovalsFCC, CE, KC, CB, UL, PSE
Sequenceyes
Multiscreen on Spot Monitoryes
Color Controlbrightness, constrast, saturation, hue
Record
Scheduling Methodtime-table type (by naming), schedule a week by hour
Recording Setup Programmable for each Cayes
ARCHIVE & Data Export
Archivingno
NETWORK
Web Browser AccessInternal, External
Remote PTZ Controlyes
Remote PTZ Setupyes
Remote PTZ Advanced Setupyes
Remote Data ExportClip Player, AVI, JPG, BMP
