24 Port PoE switch
  • Individual port data transmission to DirectIP™ NVR
  • PoE (IEEE 802.3af, IEEE 802.3at ) compliant
  • Maximum per-device PoE delivery of 360W available for 1~24 RJ45 ports
  • Central power control for greater network utility
  • Supports 24 FE RJ45 ports and Uplink 2 GbE RJ45 / 2 GbE SFP combo slots
System Memory32MB SDRAM, 16MB Flash
Switching Capacity8.8Gbps
Copper Service Port24 RJ45 Connectors (10/100BASE-T)
Optical Uplink Port2 RJ45 / SFP combo (10/100/1000BASE-T/1000BASE-X)
PoE Power
supported StandardsIEEE 802.3af-2003 / IEEE 802.3at-2009
PD ConnectionUp to 24 IEEE 802.3af PDs or Up to 12 IEEE 802.3at PDs
PSE Power360W

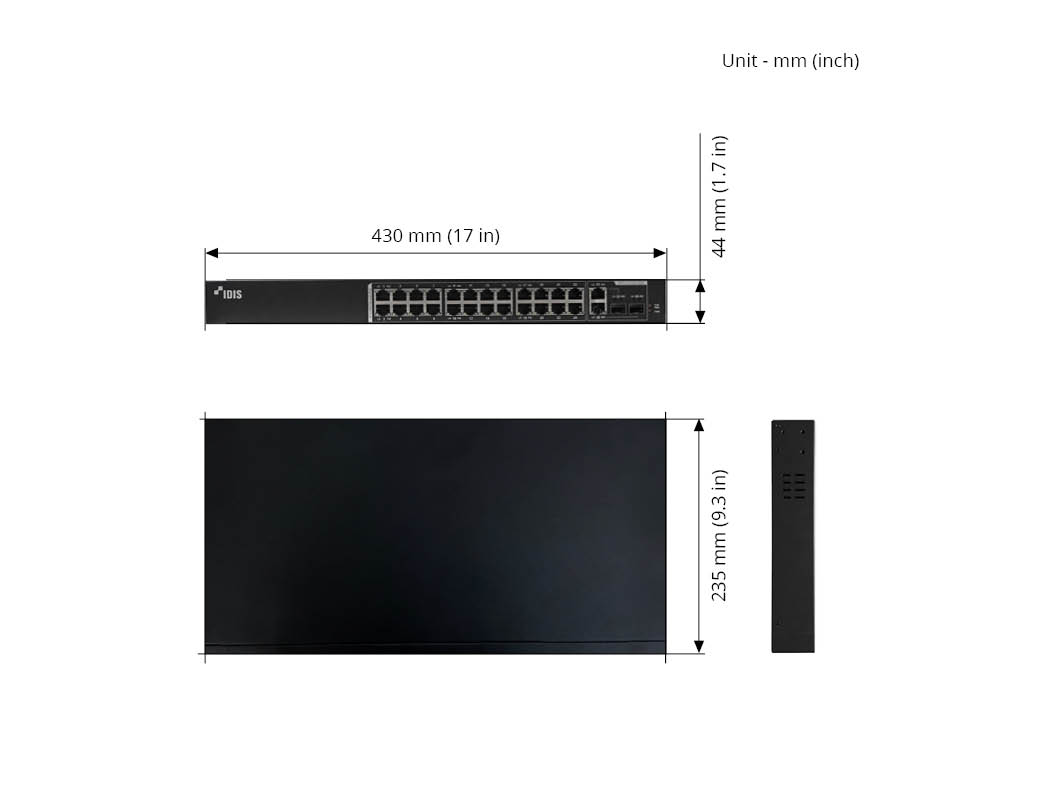

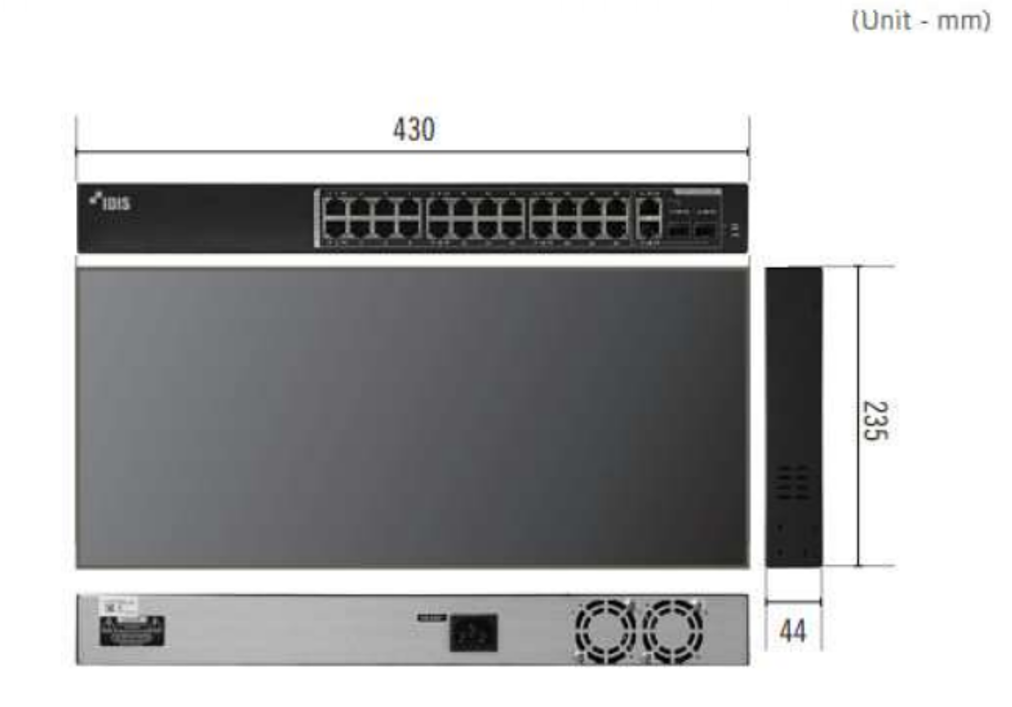

Diemensions(W x H x D)430mm x 44mm x 235mm (17.0" x 1.7" x 9.3")
Weight2.62Kg (5.77lb)
Operating Temperature'0°C ~ 40°C ('32°F ~ 104°F)
Power Input100-240V~, 50/60Hz, 5.0-2.5A, 450W
Power Consumption450W
ApprovalsFCC, CE, KC, UL, CB
Installation environment Accessory configuration
Manual DH-2026PF Operation Manual v1.0
BIM DH-2026PF BIM File
A&E Specification DH-2026PF A&E Specification v1.1
Brochure DH-2026PF
