DA-JB2300

Junction Box
  • Dimension (mm) : 155mm (W) x 138mm (D) x 52mm (H)
  • Weight : 0.8kg (1.79lb)
  • Relevant Model : DC-T3233HRX, DC-T3243HRX, DC-T3234HRX, DC-T3233HRXL, DC-T6233HRX, DC-T6234HRX, DC-T6243HRX, DC-T6233HRXL, DC-T3533HRX, DC-T4233WRX, DC-T4233HRX, DC-T4236WRX, DC-T4236HRX, DC-T4533HRX, DC-E4213WRX, DC-E4216WRX, DC-E4513WRX TC-T5531WRX, TC-T5531WRXP, TC-T5532WRX
  • Relevant Mount: DA-LM2000, DA-RM2000

DA-JB2300

Junction Box

  • Performance

  • Easy Installation

  • Usability

  • Scalability

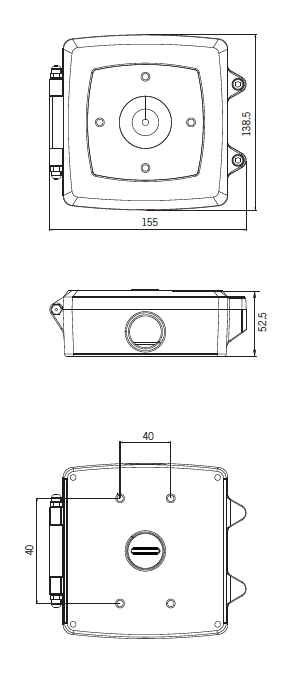

Dimension (mm)155mm (W) x 138.5mm (D) x 52.5mm (H) (6.10" (W) x 5.45" (D) x 2.07" (H))
Weight0.8kg (1.79lb)
Relevant ModelDC-T3233HRX, DC-T3243HRX, DC-T3234HRX, DC-T3233HRXL, DC-T6233HRX, DC-T6234HRX, DC-T6243HRX, DC-T6233HRXL, DC-T3533HRX, DC-T4233WRX, DC-T4233HRX, DC-T4236WRX, DC-T4236HRX, DC-T4533HRX, DC-E4213WRX, DC-E4216WRX, DC-E4513WRX TC-T5531WRX, TC-T5531WRXP, TC-T5532WRX
Relevant MountDA-LM2000, DA-RM2000
[BIM] DA-RM2000 & DA-JB2300 Combination BIM File
[BIM] DA-LM2000 & DA-JB2300 Combination BIM File
[Manual] DA-JB2300 Manual v1.0
[BIM] DA-JB2300 BIM File
