| VIDEO |
| Video Inputs | 16 IP Channels |
| Max. Incoming Throughput | 320Mbps |
| Supported Camera | DirectIP, AXIS, PANASONIC, ONVIF |
| Video Outputs | 2 HDMI |
| Display Resolution | HDMI : 3840x2160, 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200 |
| Display Speed | Up to 480ips |
| Digital Zoom | x2 ~ x12 |
| RECORDING |
| Max. Throughput | 180Mbps, 480ips@UHD |
| Recording Resolution | Up to 12MP (Depending on IP Camera) |
| Compression | H.265, H.264 |
| Recording Mode | Time-lapse, Event, Pre-event, Panic |
| Trigger Events | Alarm In, Audio Detection, Motion Detection, Trip-zone, Tampering, Video Loss, Text-in, Etc. |
| PLAYBACK |
| Performance | 16ch synchronous playback |
| Search Mode | Time-lapse, Event Log, Text-in, Thumbnail |
| Digital Zoom | x2 ~ x12 |
| STORAGE |
| HDD | SATA x6, eSATA x4, RAID 1 supported |
| Total Capacity | The maximum HDD capacity is updated as new HDD models become available.
For the most recent information, please check here. |
| NETWORK |
| Client Connection | Gigabit Ethernet (Client) x1 |
| Video In Connection | Gigabit Ethernet (IP Camera) x16 Gigabit Ethernet(Ext) x1 |
| Transmission Speed | 50Mbps / 100Mbps (BRP Mode) |
| Camera Power | PoE (IEEE 802.3at Class 4) Supported 16 Ports, 120W |
| Remote Data Export | IDIS Player, AVI, JPG |
| Event Notification | Email (Attach Clip (.cbf) .MP4), Callback to Remote S/W, Push Notification (IDIS Mobile) |
| Two-way Audio | Yes |
| Client Viewer | IDIS Center, IDIS Mobile, IDIS Web, IDIS Solution Suite |
| INTERFACE |
| Audio In/ Out | Local (NVR) : 1 RCA / 1RCA 2HDMI
IP Camera : 16 / 16 (Depending on IP Camera) |
| Alarm In / Out | Local(NVR) : 4 / 1
IP Camera : 16 / 16 (Depending on IP Camera) |
| Alarm Reset In | 1 |
| Serial Interface | RS232 (Terminal Block), RS485 (Terminal Block) |
| USB | USB 2.0 x 2, USB 3.0 x 1 |
| User Interface | Mouse, IR Remote Control, Network Remote Keyboard |
| GENERAL |
| Operating System | Embedded Linux |

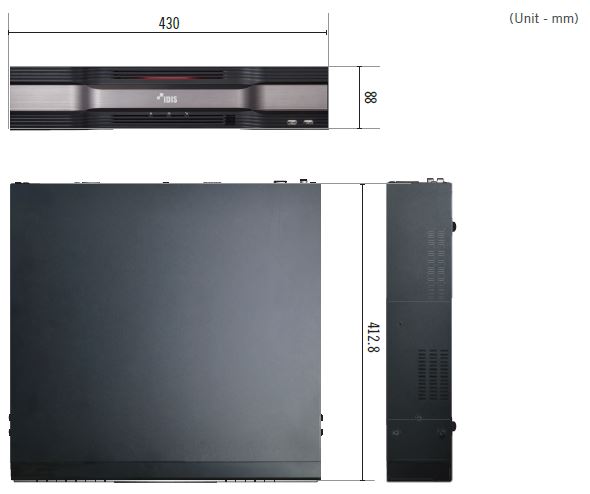

| UNIT Dimensions (W x H x D) | 430mm x 88mm x 412.8mm (16.9" x 3.5" x 16.25") |
| Unit Weight | 6.75kg (14.88lb) (with 1HDD) |
| Working Temperature | 0°C to 40°C (32℉ ~ 104℉) |
| Operating Humidity | 0% ~ 90% |
| Power Consumption | 100-240V~, 50/60Hz, 3.0-1.5A, 250W |
| Approvals | FCC, UL, CE, CB |
16Ch
PSE Support
DirectIP
FEN Service
Quickly Backup
Redundancy Protection
Scalability
NDAA Compliant
