AI in the Box
/ NDAA Compliant
  • AI in the BOX with IDIS Solution Suite
  • Compatible with IDIS Deep-Learning Analytics (IDLA)
  • 4U rack mount chassis
  • Analytics available with ISS IDLA up to 64 IP cameras
IDIS Solution SuiteCompatible with IDLA VA Service
Network Connection2 GbE RJ-45 Ports (1000Base-T)
Channels available for AnalytiUp to 64ch in condition of 640x360@5ips video input
IDLA Processing UnitNVIDIA RTX2060, 8GB
Operating SystemMicrosoft® Windows Embedded Standard 8
ProcessorIntel® I7-7700, 3.6GHz
MemoryDDR4 PC-19200, 8GB
Video Outputs1 HDMI, 1 DP, 1 VGA
USB6 ( 2 Front USB 2.0 + 2 Back USB 3.0 + 2 Back USB 2.0)
Form Factor4U RACK Mount Chassis

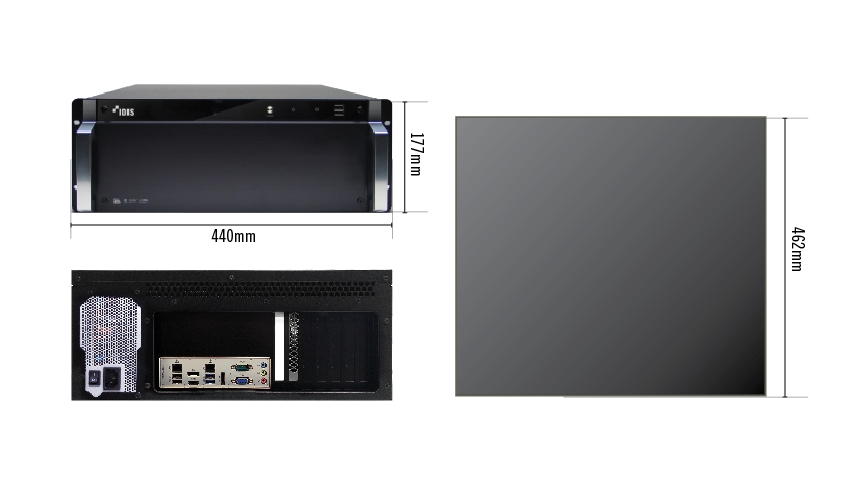

Dimensions (W x D x H)440mm x 177mm x 462mm (17.3" x 7.0" x 18.2")
Weight14.0kg (30.9 lb)
Power InputAC 100-240 V, 50/60Hz, 5.5 - 2.5A
Power SupplySingle Power
Power Consumption350W
Operating Temperature 0° to 40°C (32° to 104°F)
Operating Humidity 0% to 90%
CertificationsFCC, CE, CB, UL, KC
