VA in the Box
  • Specialized in DirectIP NVR
  • Supports 4ch IP Camera
  • Supports People Counting
  • Supports Heatmap
  • Supports Queue Management
Video CompressionH.264, H.265
Video Inputs4ch IP
Supported DevicesDirectIP NVR
Max. Network Throughput20Mbps
Newtork ConnectionGigabit Ethernet x 1
VA SupportPeople Counting, Heatmap, Queue Management (Max. 3 queues)

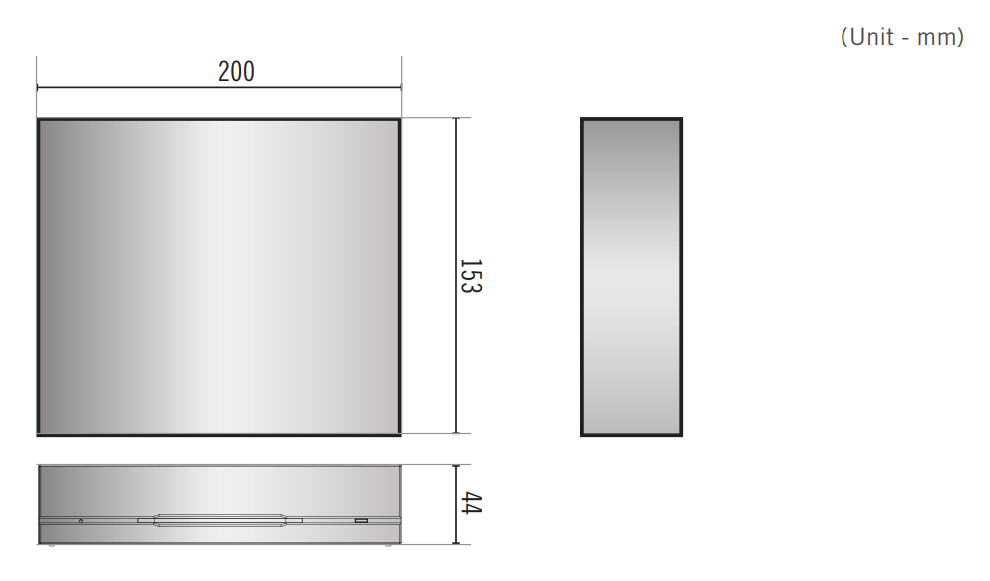

Dimension (W x H x D)200mm x 44mm x 153mm (7.9" x 1.7" x 6.0")
Unit Weight0.74kg (1.6lb)
Operating Temperature0°C to 40°C (32℉ ~ 104℉)
PoE(class)Yes(IEEE 802.3af Class 3)
Power source12VDC, PoE
Power Consumption12V=, 0.55A, 6.6W

PoE, IEEE 802.3af(Class 3)
ApprovalsFCC, CE, KC
Installation environment Accessory configuration
Manual DV-1104 Operation Manual v1.0
Software DV-1104 Firmware v1.2.2
Software DV-1104 Firmware v1.2.1
A&E Specification DV-1104 A&E Specification v1.0
Brochure DV-1104
