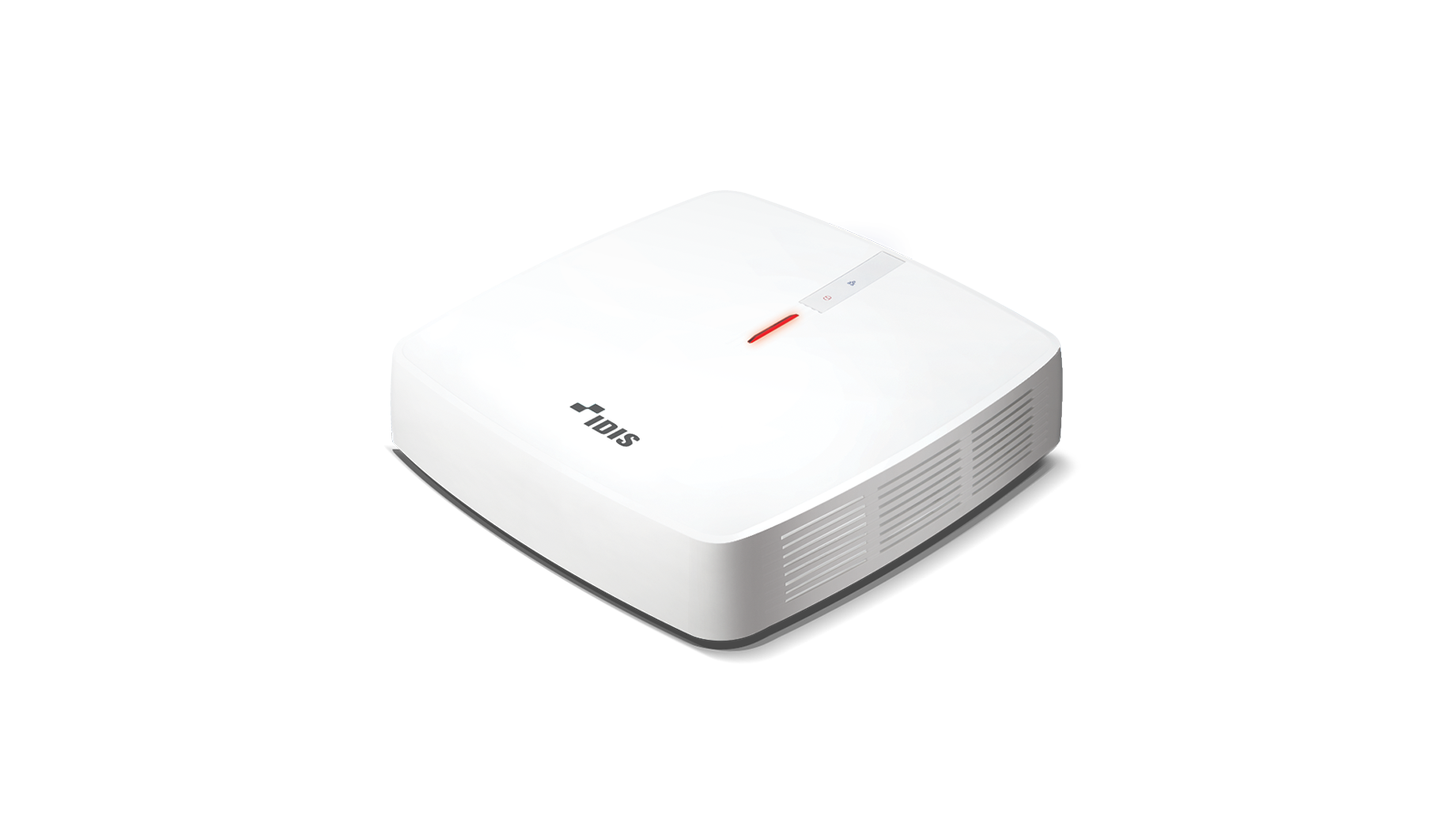

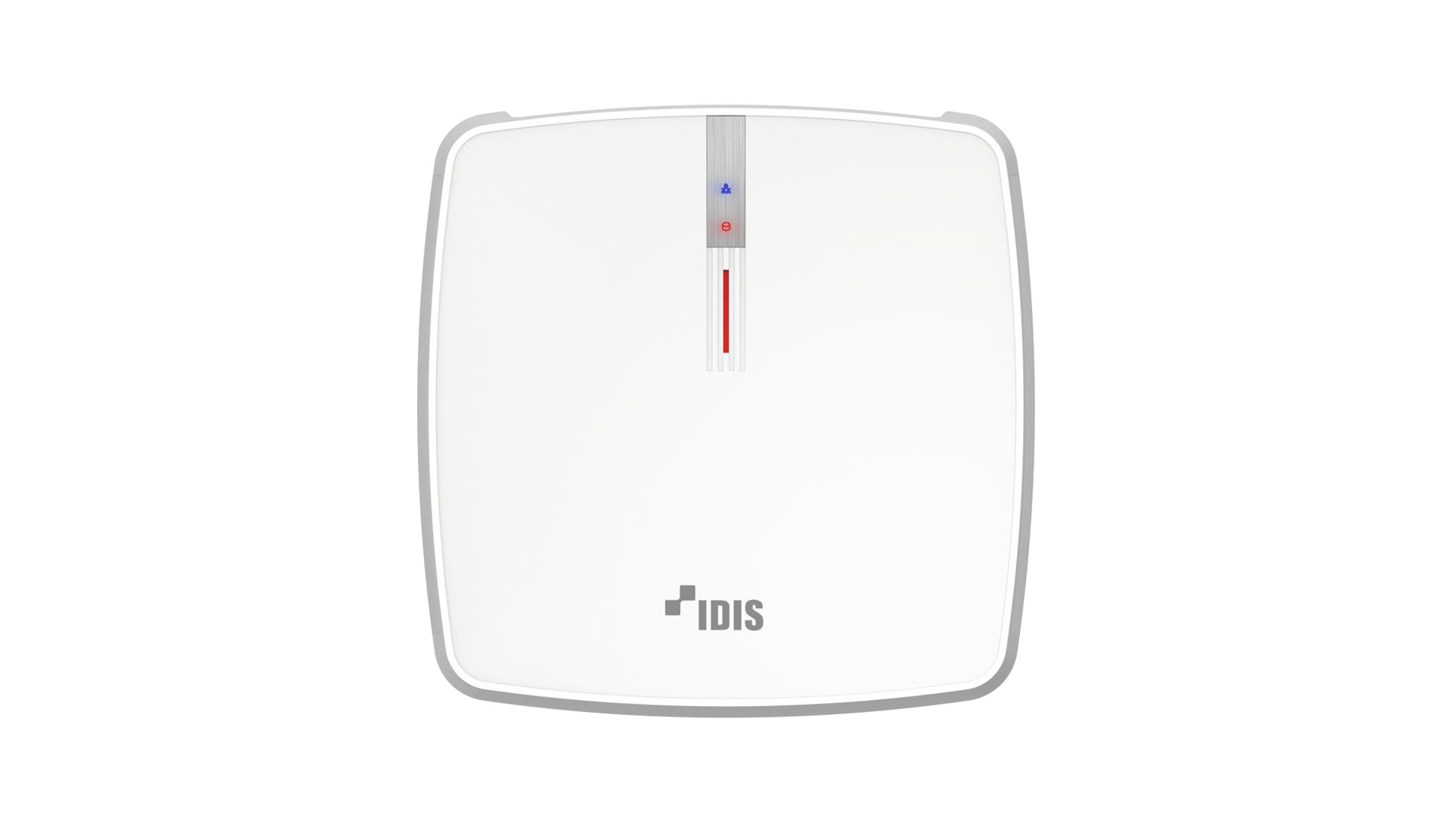

DirectIP 1200 Series 4 Channel Full HD Recorder
  • Total incoming throughput 84Mbps
  • Up to 120ips Full HD real-time recording
  • Up to 120ips live display
  • Easy to install, set-up, and play with DirectIP cameras
  • Built-in 4 channel PoE Switch
  • Expandable up to 6TB
  • Supports one click network configuration through FEN service
Video Inputs4 IP Channels
Max. Incoming Throughput84Mbps
Supported Camera-

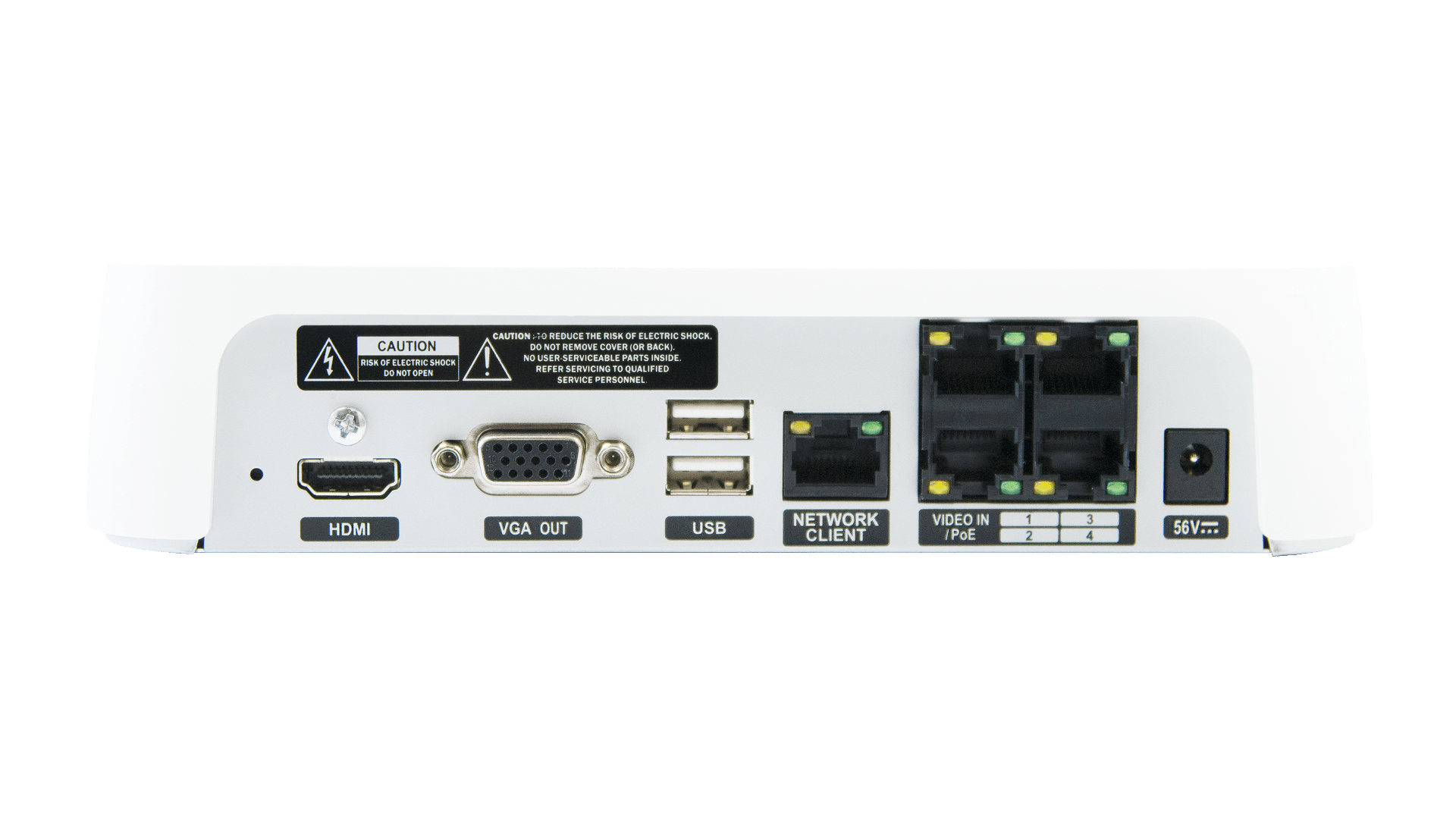

Video Outputs1 HDMI, 1 VGA
Display Resolution1920 x 1200 , 1920 x 1080, 1680 x 1050, 1600 x 1200
Display SpeedUp to 120ips
Digital Zoomx2 ~ x12
Max. Throughput32Mbps, 120ips@Full HD
Recording ResolutionUp to 5MP (Depending on IP Camera)
Encoding ModeCBR, VBR
Recording ModeTime-lapse, Event, Pre-event, Panic
Trigger EventsAlarm In, Audio Detection, Motion Detection, Trip-zone, Tampering, Video Loss, Text-in, ANPR, Etc.
Performance4ch Full HD Synchronous Playback
Search ModeTime-lapse, Event Log,Thumbnail, Motion, Text-in
Digital Zoomx2 ~ x12
HDDSATA x1, (Up to 6TB Capacity for Each Disk)
Total CapacityThe maximum HDD capacity is updated as new HDD models become available.
For the most recent information, please check here
Client ConnectionFast Ethernet (Client) x1
Video In ConnectionFast Ethernet (IP Camera) x4
Transmission Speed20Mbps / 50Mbps (BRP Mode)
Camera PowerPoE (IEEE 802.3at Class 4) Supported 4 Ports, 30W
Remote Data ExportIDIS Player, AVI, JPG
Event NotificationEmail (Attach Clip (.cbf) .MP4), Callback to Remote S/W, Push Notification (IDIS Mobile)
Two-way AudioYes
Client ViewerIDIS Center, IDIS Mobile, IDIS Web, IDIS Solution Suite
Audio In/ OutLocal (NVR) : - / 1HDMI
IP Camera : 4 / 4 (Depending on IP Camera)
Alarm In / OutLocal(NVR) : - / -
IP Camera : 4 / 4 (Depending on IP Camera)
Alarm Reset In-
Serial Interface-
USBUSB 2.0 x 2
User InterfaceMouse, Network Remote Keyboard
Operating SystemEmbedded Linux

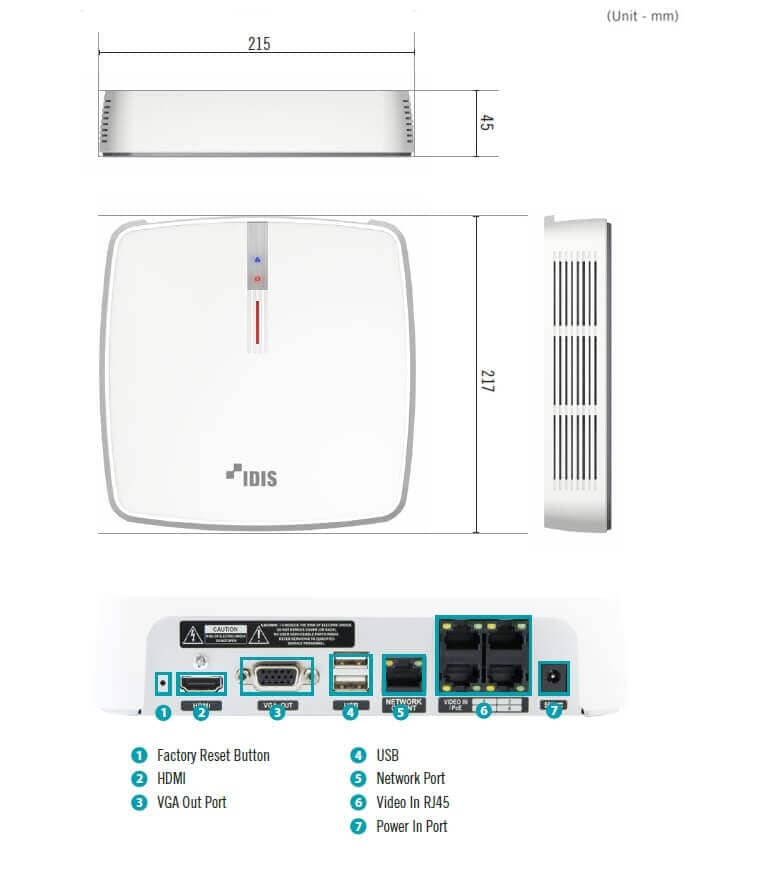

UNIT Dimensions (W x H x D)215mm x 48.5 mm x 214.5mm(8.5" x 1.9" x 8.5")
Unit Weight1.2kg (2.64lb) (with 1 HDD)
Working Temperature0°C to 40°C (32℉ ~ 104℉)
Operating Humidity0% ~ 90%
Power InputDC 56V 1.17A
Power Consumption39.2W (for NVR), Max. 30W (for PSE)
ApprovalsFCC, CE, KC
