DC-T4811WRX 3.3mm

H.265 8MP Bullet Camera
/ NDAA Compliant
  • 8MP (3840x2160) resolution
  • Easy installation with DirectIP NVR
  • Two-way audio
  • Alarm in / out
  • IK10 / IP67 supports
  • PoE (IEEE 802.3af Class 3)
  • Day and night (ICR)
  • True wide dynamic range (WDR)
  • IR LED (30 m / 98.4 ft (4 ea))
  • 3-axis mechanical design for installation
  • Easy installation with DirectIP NVR
  • Supports ONVIF
Video
Image Sensor1/2.8" CMOS
Max. Resolution3840 x 2160
Scanning ModeProgressive Scan
Lens TypeFixed-focal
Focal Length3.3mm
ApertureF2.0
Iris ControlFixed Iris
Angular Field of View101.3º (H) 54.5º(V) 119.7º(D)
Min. IlluminationCOLOR : 0.2 lux @ F2.0
B/W : 0 lux (IR LED ON)
Dynamic Range120dB (True WDR)
Electronic Shutter SpeedAuto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15)
Day and NightYes (ICR)
IR Distance (LEDs)30 m / 98.4 ft (4 ea)
Image SettingExposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control)
Backlight CompensationBLC
Mirroring / PivotHorizontal / Vertical / Pivot
Image Stabilizer-
De-fog-
Privacy Masking8 Zones
Intelligent VideoVideo Motion Detection, Active Tampering Alarm, Trip Zone
Video Out-
Network
Video CompressionH.265, H.264 (MP), M-JPEG
Intelligent CodecYes
Bitrate ControlH.265 - CBR / VBR, H.264 - CBR / VBR
Audio CompressionADPCM 16K, G.726, G.711 u-Law, G.711 a-Law
Two-way AudioYes
IP Camera ProtocolDirectIP 2.0, ONVIF
Max. Frame Rate30ips : 3840x2160
15ips : 3840x2160(WDR)
Supported Resolution3840x2160, 1920x1080, 1280x720, 640x360
Multi-video StreamingQuadruple Streaming
Network ProtocolsDirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP,
RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp, SNMPv2
SecuritySigned firmware, Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption
EthernetRJ45 (10/100BASE-T)
Recording Session Buffer (NLTSrec)Yes (Up to 60MB)
Edge Storagemicro SD/SDHC/SDXC, Smart Failover (Up to 512GB)
Alarm and Event
Trigger EventMotion Detection, Alarm in, Audio detection, Tampering, Trip Zone
Event NotificationRemote S/W, Email (with Image)
Audio AlarmYes
Audio In / Out1 / 1
Alarm In / Out1 / 1
Environmental
Vandal Proof CasingIK10
Outdoor ReadyIP67
Operating Temperature-20°C ~ +55°C (-4°F ~ +131°F)
*Starting up at above 0°C (32°F)
Operating Humidity0% ~ 90%
Electrical
Power SourcePoE (IEEE 802.3af Class 3)
Power ConsumptionPoE, (IEEE 802.3af Class 3), 9.0W
ApprovalFCC, CE, KC
Mechanical

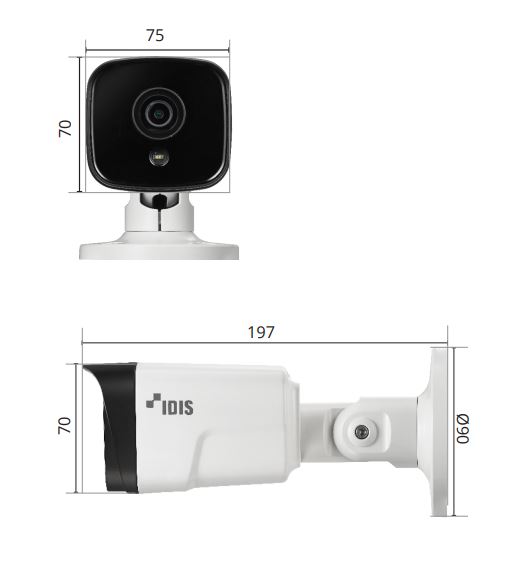

Dimensions75mm x 70mm x 195.8mm (2.95" x 2.75" x 7.71")
Weight0.66 kg (1.46lb)
Installation environment Accessory configuration

Wall

Junction Box
Model:DA-JB4150

or

Junction Box
Model:DA-JB2400

Celling

Junction Box
Model:DA-JB4150

or

Junction Box
Model:DA-JB2400

Pole

Junction Box
Model:DA-JB4150

+

Pole Mount
Model:DA-LM2000

or

Pole Mount
Model:DA-LM2000

+

Junction Box
Model:DA-JB2400

Corner

Corner Mount
Model: DA-RM2000

+

Junction Box
Model: DA-JB2400

or

Junction Box
Model: DA-JB4150

+

Corner Mount
Model: DA-RM2000
