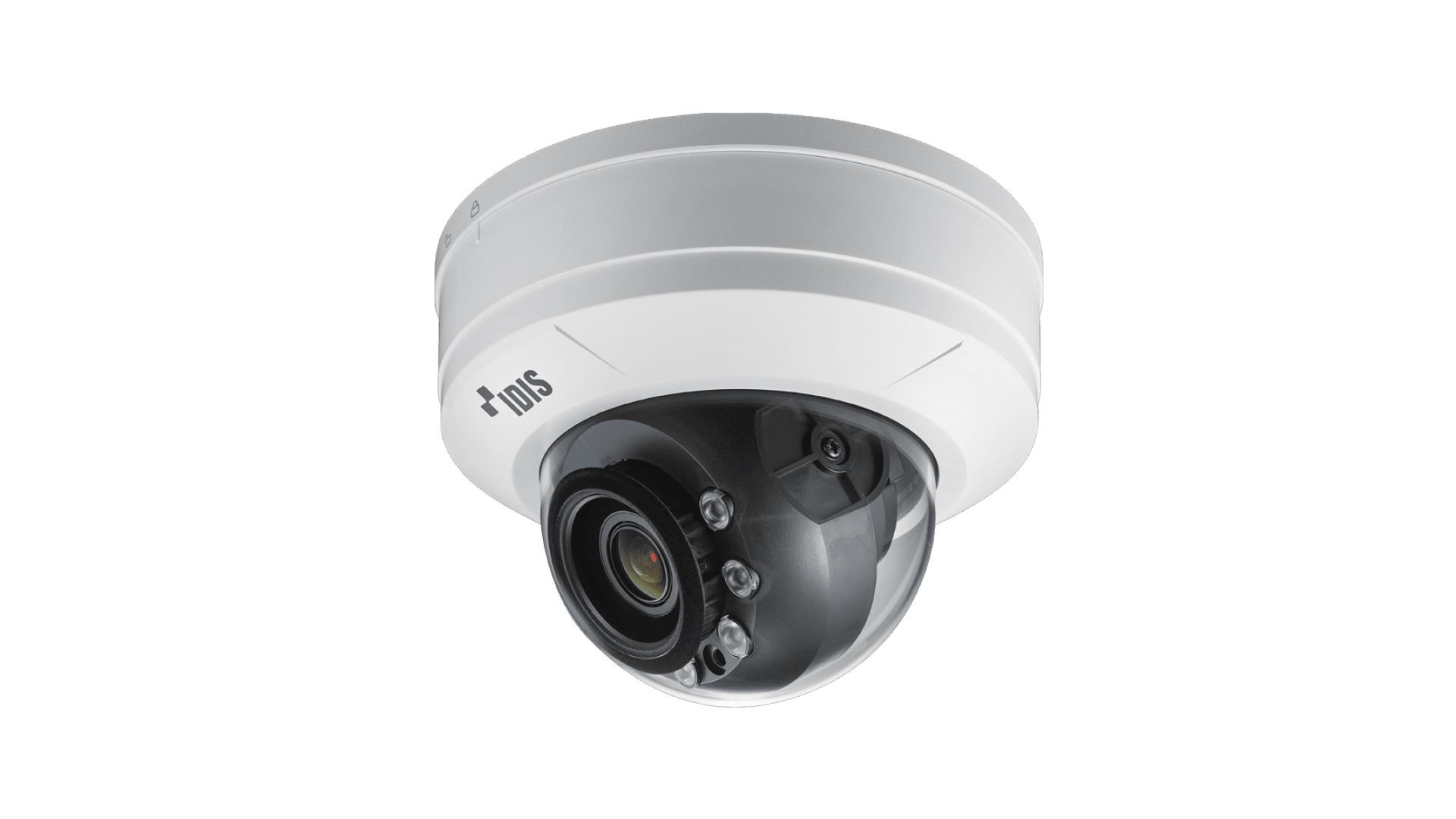

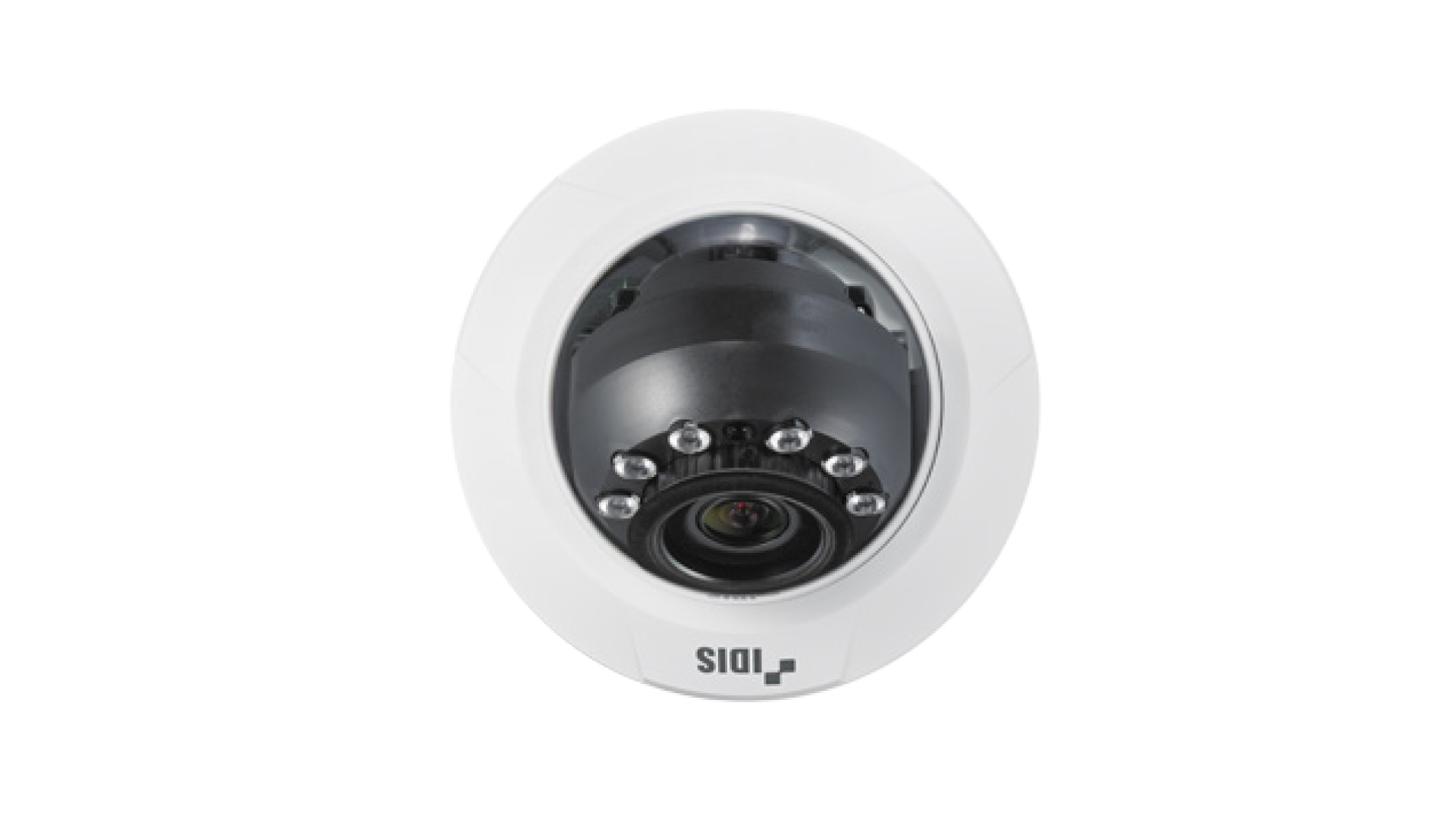

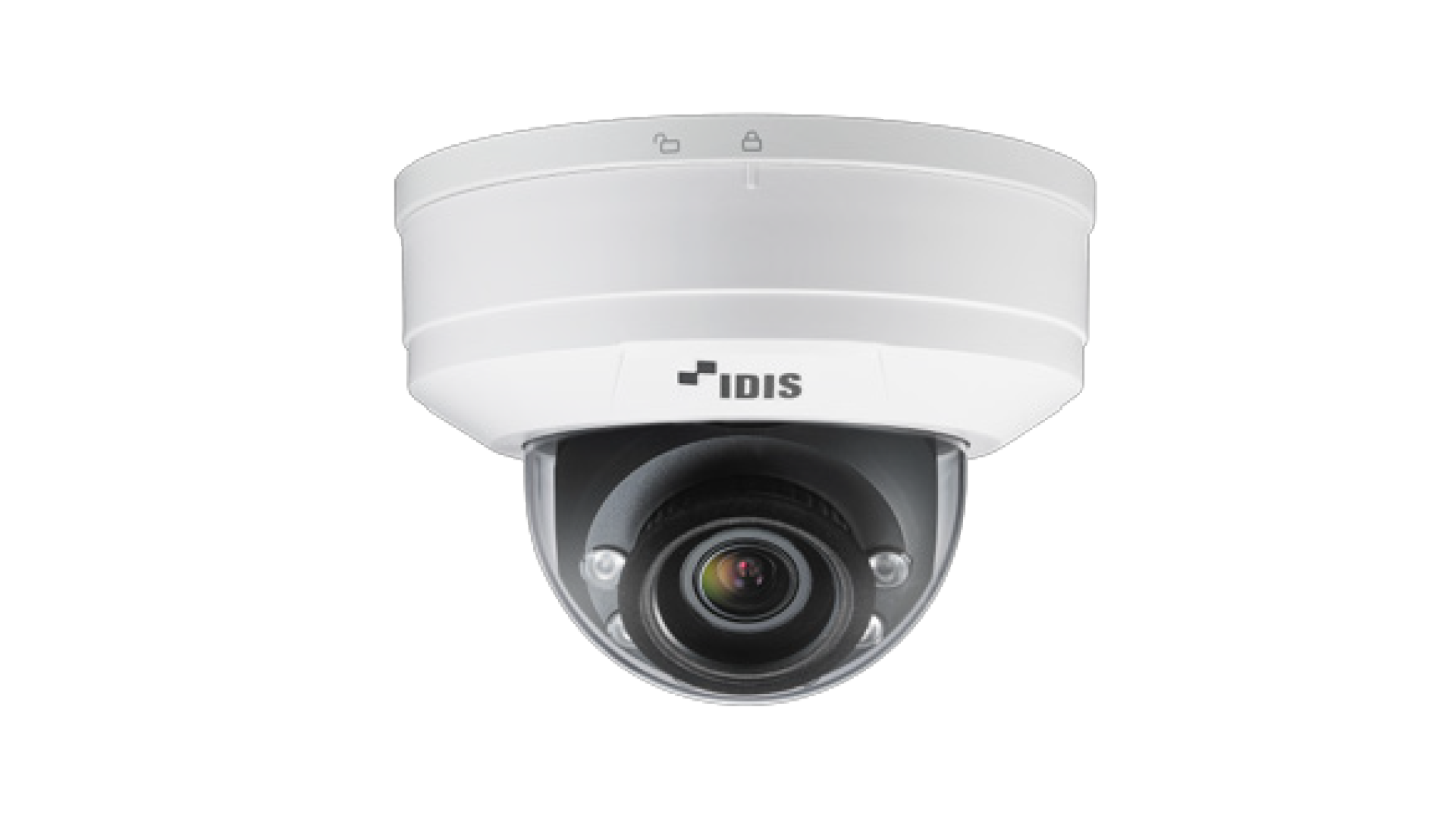

DC-D3533RX

5MP IR Dome Camera
  • Easy installation with DirectIP NVR
  • 5MP (2592 x 1944) resolution
  • Motorized Vari-focal lens (f=3.6 - 10mm)
  • micro SD/SDHC/SDXC, Smart Failover
  • Two-way audio
  • Alarm in / out
  • PoE (IEEE 802.3af Class 3), 12V DC
  • Day and night (ICR)
  • True wide dynamic range (WDR)
  • IR LED (Distance : 30m / 98.4ft)
  • 3-axis mechanical design for installation
  • Supports ONVIF

DC-D3533RX

5MP IR Dome Camera
  • 4K High Resolution

  • Motorized Vari-focal lens

  • IP67

  • IR LED

CASE STUDY

Automotive

Logistics

Public Safety

Emergency services

Video
Image Sensor 1/1.8" CMOS
Max. Resolution 2592 x 1944
Scanning Mode Progressive Scan
Lens Type Motorized Vari-focal
Focal Length f=3.6 - 10mm
Aperture F1.8 - 2.8
Iris Control P-Iris
Angular Field of View Wide : 90º(H), 67º(V), 116º(D) Tele : 37º(H), 27º(V), 46º(D)
Pan/Tilt Range Pan: -176° ~ 176°, Tilt: 0° ~ 65°, Rotate: -90° ~ 90°
Min. Illumination COLOR : 0.2 lux @ F1.8 B/W : 0 lux (IR LED ON)
S/N Ratio More than 45dB
Dynamic Range 120dB(True WDR)
Electronic Shutter Speed Auto / Manual (1/30 ~ 1/10000), Anti-Flicker, Slow Shutter (1~1/5, 1/7.5, 1/15)
Day and Night IR cut filter with auto switch
IR Distance (LEDs) 30 m / 98.4 ft (6 ea)
Image Setting Configurable Exposure, White Balance, Sharpness
Digital Noise Reduction Configurable 2DNR/3DNR
Backlight Compensation On / Off / HSBLC
Mirroring / Pivot Horizontal / Vertical / Pivot
Image Stabilizer -
De-fog On / Off
Privacy Masking 8 Zones
Intelligent Video Video Motion Detection, Active Tampering Alarm, Trip Zone
Video Out 1 BNC(Accessory)
Network
Video Compression H.265, H.264 (MP), M-JPEG
Intelligent Codec Supported
Bitrate Control H.264 - CBR / VBR, H.265 - CBR / VBR
Audio Compression ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law
Two-way Audio Yes
IP Camera Protocol DirectIP™ Mode : DirectIP Compatibility Mode : IDIS ONVIF Profile S
Max. Frame Rate DirectIP™ Mode : 15ips : 2592x1944(WDR) Compatibility Mode : 30ips : 2592x1944 15ips : 2592x1944(WDR)
Supports Resolution DirectIP™ Mode : 2592x1944, 1280x960, 640x480, 320x240 Compatibility Mode : 2592x1944, 1280x960, 640x480, 320x240
Multi-video Streaming DirectIP™ Mode : Quadruple Streaming Compatibility Mode : Quadruple Streaming
Network Protocols DirectIP™ Mode : DirectIP Protocol Compatibility Mode : RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP
Security DirectIP™ Mode : SSL Encryption Compatibility Mode : Multi-user Authority, IEEE 802.1x  IP Filtering, HTTPS, SSL Encryption
Remote Access Client DirectIP™ Mode : DirectIP NVR Connection Compatibility Mode : IDIS Web, IDIS Mobile, IDIS Solution Suite
Ethernet RJ45 (10/100/1000BASE-T)
Recording Session Buffer (NLTS Yes (Up to 60MB)
Edge Storage micro SD/SDHC/SDXC, Smart Failover (Up to 128GB)
ALARM AND EVENT
Trigger Event Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone
Event Notification Remote S/W, Email (with Image)
Audio In/ Out Line-in 1ea / Line-out 1ea
Alarm In / Out Input 1ea / Output 1ea
Environmental
Vandal Proof Casing -
Outdoor Ready -
Operating Temperature -10°C ~ +50°C (+14°F ~ +122°F) *Starting up at above 0°C (32°F)
Operating Humidity 0% ~ 90%
Electrical
Power Source 12VDC, PoE (IEEE 802.3af Class 3)
Power Consumption 10.2W
Approval FCC, CE, KC
Mechanical

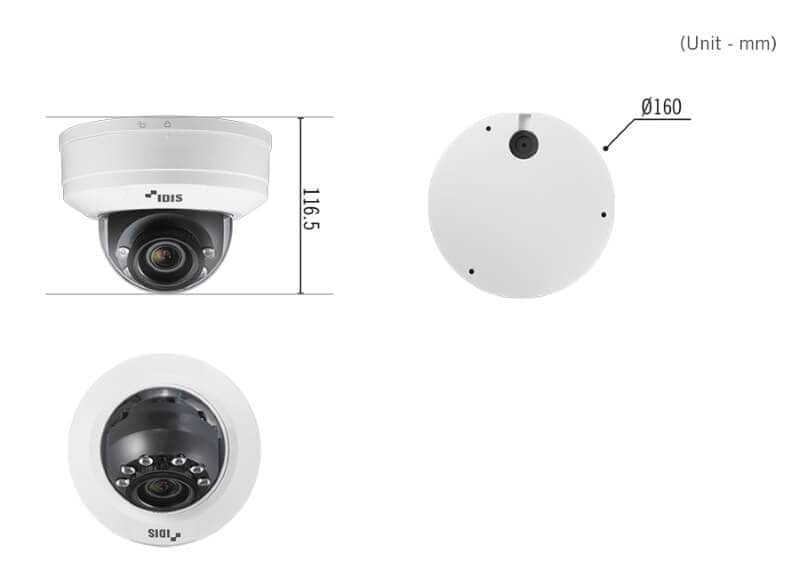

Dimensions (Ø x H) Ø160mm x 116.5mm (Ø6.30" x 4.59")
Weight 1.21 kg
