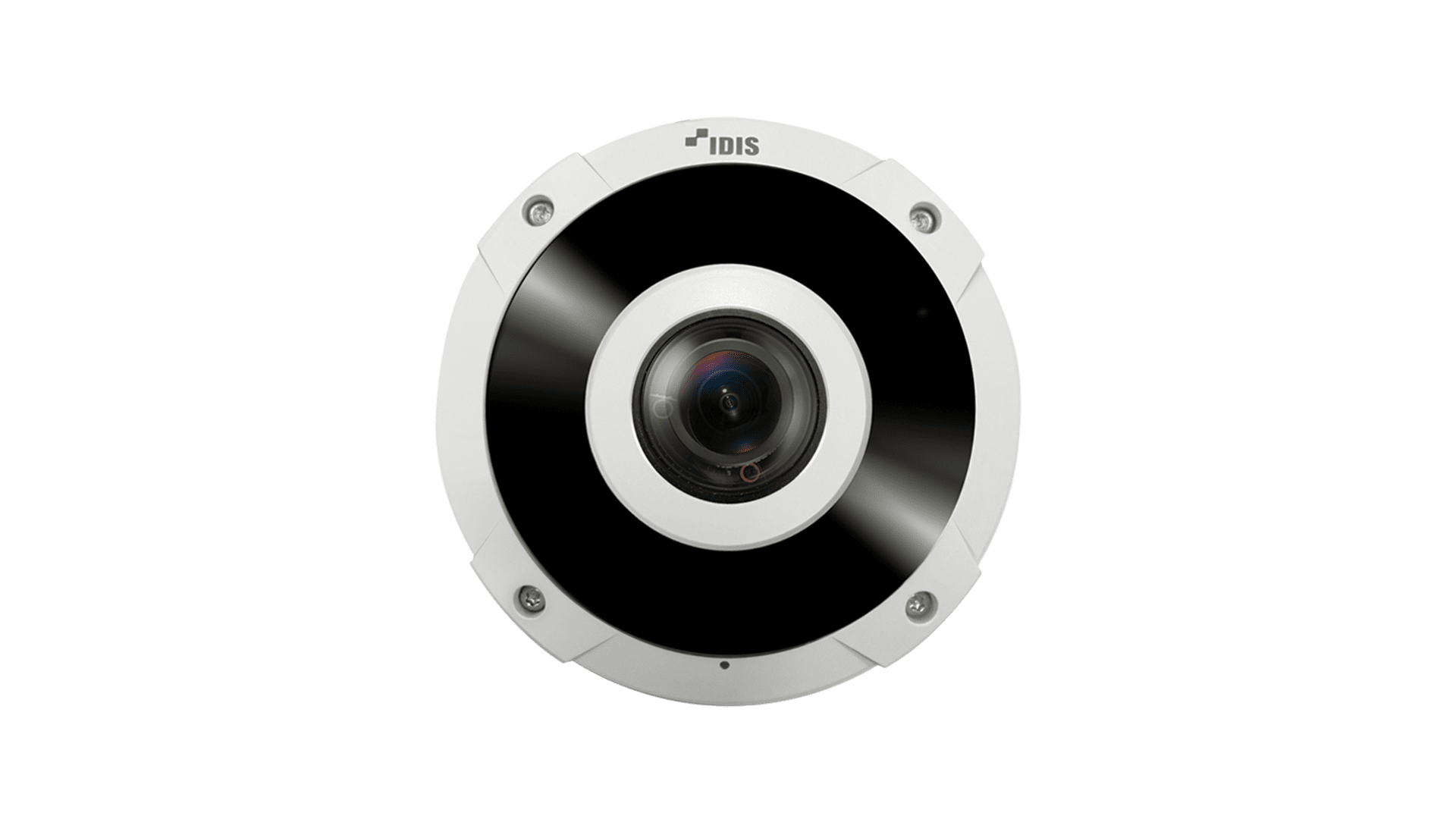

DC-Y3C14WRX

12MP Vandal-Resistant IR Fisheye Camera
  • Easy installation with DirectIP NVR
  • 12MP Sensor / 9.4MP (3200 x 2944) resolution
  • Fixed-focal lens (f=1.98mm)
  • micro SD/SDHC/SDXC, Smart Failover (Up to 256GB)
  • Two-way audio
  • Alarm in / out
  • IK10 / IP67 supports
  • PoE (IEEE 802.3af Class 3), 12V DC
  • Day and night (ICR)
  • True wide dynamic range (WDR)
  • IR LED (15m (6ea))
  • Various viewing composition, 6 dewarping view modes
  • Supports ONVIF
Video
Image Sensor1/1.7" 12MP CMOS
Max. Resolution3200 x 2944
Scanning ModeProgressive Scan
Lens TypeFixed-focal
Focal Lengthf=1.98mm
ApertureF2.8
Iris ControlFixed Iris
Angular Field of View180°(H), 168°(V), 180°(D)
Pan/Tilt/Zoom-
Min. IlluminationColor : 0.2 lux @ F2.8
B/W : 0 lux (IR LED ON)
S/N Ratio52.7dB
Dynamic Range120 dB (True WDR)
Electronic Shutter SpeedAuto / Manual (1/30 ~ 1/10000), Anti-Flicker, Slow Shutter (1~1/5, 1/7.5, 1/15)
Day and NightIR cut filter with auto switch
IR Distance (LEDs)15m (6ea)
Image SettingConfigurable Exposure, White Balance, Sharpness
Backlight CompensationOn / Off / HSBLC
Mirroring / Pivot-
Image Stabilizer-
Privacy Masking8 Zones
Intelligent VideoVideo Motion Detection, Active Tampering Alarm, Trip Zone, Heatmap
Viewing Composition1O, 1P, 1P2R, 2P, 4R, 1O7R
Video Out-
Network
Video CompressionH.265, H.264 (MP), M-JPEG
Intelligent CodecSupported
Bitrate ControlH.264 - CBR / VBR, H.265 - CBR / VBR
Audio CompressionADPCM 16K, G.726, G.711 u-Law, G.711 a-Law
Two-way AudioYes
IP Camera ProtocolDirectIP, ONVIF Profile S
Max. Frame RateDirectIP™ Mode : 15ips : 3200 x 2944 (WDR)

Compatibility Mode : 30ips : 3200 x 2944
15ips : 3200 x 2944 (WDR)
Supports ResolutionDirectIP™ Mode : 3200x2944, 800x736
Compatibility Mode : 3200x2944, 2400x2208, 3200x1472, 1600x1472, 1600x736, 800x736
Multi-video StreamingDirectIP™ Mode : Quadruple Streaming
Compatibility Mode : Hextuple Streaming
Network ProtocolsDirectIP™ Mode : DirectIP Protocol
Compatibility Mode : RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP
SecurityMulti-user Authority, IEEE 802.1x, IP Filtering, HTTPS, SSL Encryption
Remote Access ClientDirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite
EthernetRJ45 (10/100/1000BASE-T)
Recording Session BufferYes (Up to 60MB)
Edge Storagemicro SD/SDHC/SDXC, Smart Failover (Up to 256GB)
ALARM AND EVENT
Trigger EventMotion Detection, Alarm in, Audio detection, Tampering, Trip Zone
Event NotificationRemote S/W, Email (with Image)
Audio In/ OutLine-in 1ea + Internal Mic 1ea / Line-out 1ea
Alarm In / OutInput 1ea / Output 2ea
Environmental
Vandal Proof CasingIK10
Outdoor ReadyIP67
Operating Temperature-10°C ~ +60°C (+14°F ~ +140°F), Starting up at above 0°C (32°F)
Operating Humidity0% ~ 90%
Electrical
Power Source12VDC, PoE (IEEE 802.3af Class 3)
Power Consumption12V=, 1.1A, 12.6W
PoE, IEEE 802.3af(Class 3)
ApprovalFCC, CE, KC
Mechanical

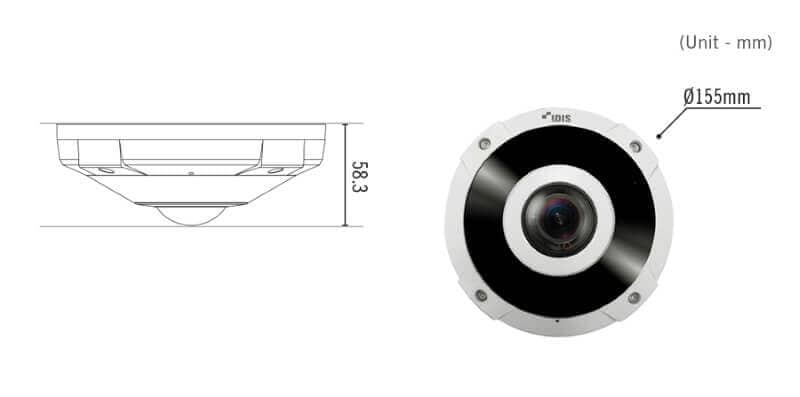

Dimensions (Ø x H)Ø155.0mm x 58.3mm (Ø6.10" x 2.29")
Weight0.92 kg (2.03 lb)
Installation environment Accessory configuration

Wall

DA-MA2100
Model:DA-MA2100

+

WALL MOUNT
Model:DA-WM2050

or

JUNCTION BOX
Model:DA-JB2200

or

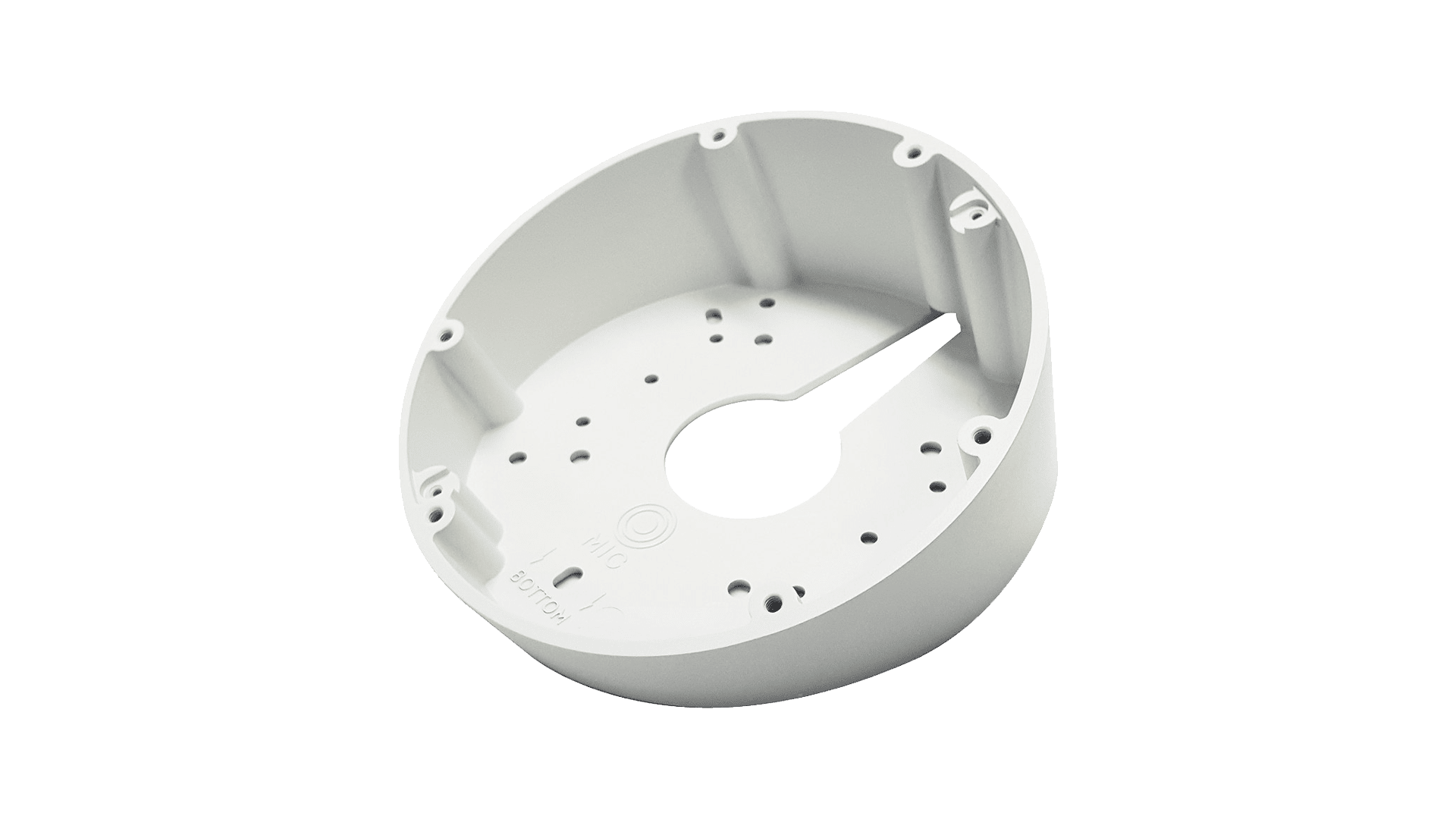

Tilt Mount
Model:DA-TM1100

Celling

DA-MA2100
Model:DA-MA2100

+

CEILING MOUNT
Model:DA-CM2050

Pole

DA-MA2100
Model:DA-MA2100

+

WALL MOUNT
Model:DA-WM2050

+

Pole Mount
Model:DA-LM2000

or

JUNCTION BOX
Model:DA-JB2200

+

Pole Mount
Model:DA-LM2000

or

Tilt Mount
Model:DA-TM1100

+

Pole Mount
Model:DA-LM2000

Corner

DA-MA2100
Model: DA-MA2100

+

WALL MOUNT
Model: DA-WM2050

+

Corner Mount
Model: DA-RM2000

or

JUNCTION BOX
Model: DA-JB2200

+

Corner Mount
Model: DA-RM2000

or

Tilt Mount
Model: DA-TM1100

+

Corner Mount
Model: DA-RM2000
