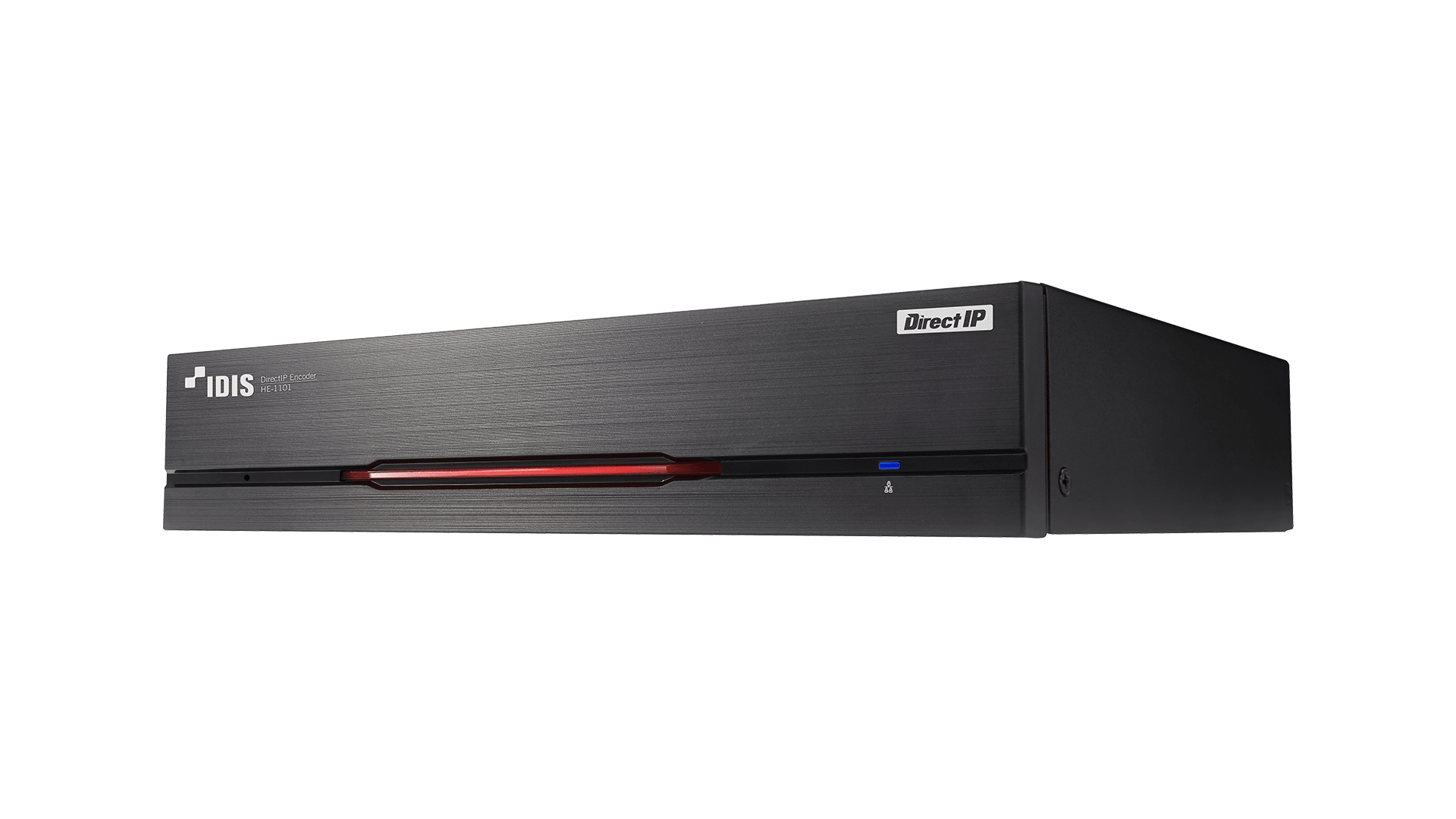

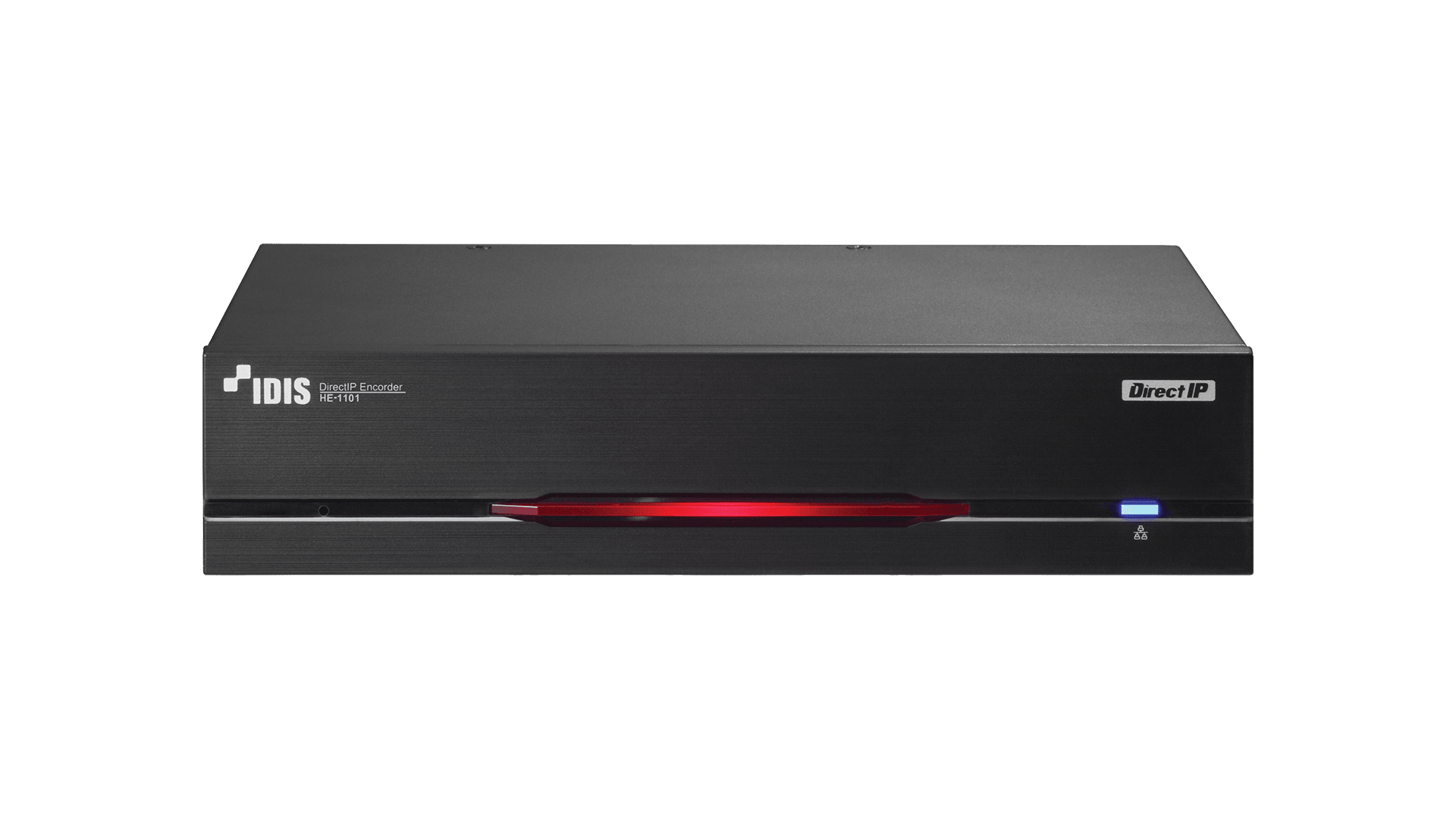

HE-1101

HDMI & VGA Encoder
  • Ease integration with the 3rd party system
  • Supports HDMI and VGA input ports
  • Supports Mouse and Keyboard control from the remote site

HE-1101

HDMI & VGA Encoder

  • Easy Installation

  • Usability

  • Interoperability

Encoder
Video codecH.265, H.264, MJPEG Intelligent Codec
Max. Framerate1920 x 1080 @ 30ips
BitrateUp to 12MP per channel
Max Resolution1920 x 1080
StreamingQuadruple Streaming
Input1 x HDMI / 1 x VGA
Output1 x HDMI (Input Bypass) / 1 x VGA (Input Bypass)
Audio Input / output1 x line in (3.5mm) / 1 x line out (3.5mm)
Serial Interface1 x USB type B
Network interface1 x RJ45 (10/100)
IP Camera ProtocolDirectIP™, IDIS Protocol, ONVIF
General

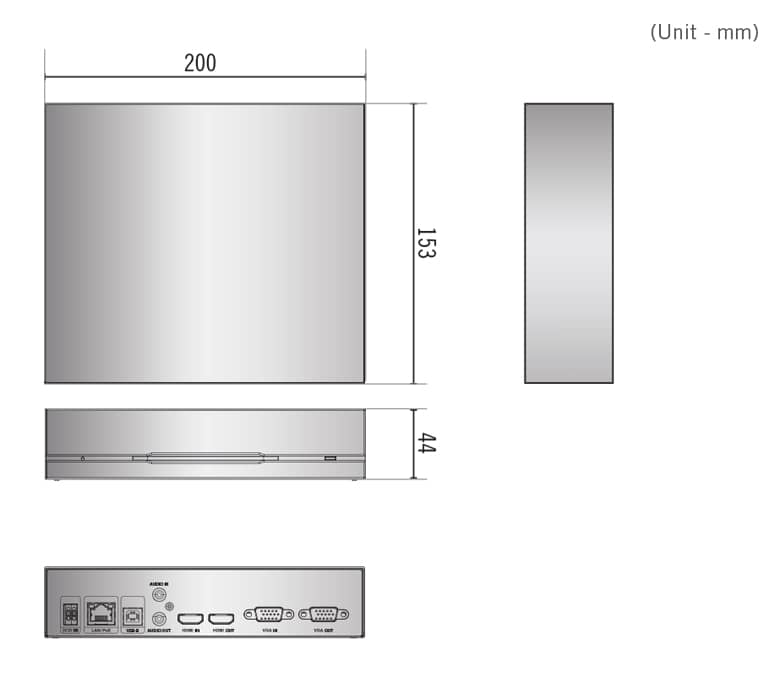

Dimension (W x H x D)200mm x 44mm x 153mm (7.9" x 1.7" x 6.0")
Operating Temperature0°C to 40°C (32℉ ~ 104℉)
PoE(class)Yes(IEEE 802.3af Class 3)
Power source12VDC, PoE
ApprovalsFCC, CE, KC
[Software] HE-1101 v2.0.0 - PAL
[Software] HE-1101 v2.0.0 - NTSC
[Software] HE-1101 v2.0.0 - JAPAN
[Software] HE-1101 v1.1.0 - PAL
[Software] HE-1101 v1.1.0 - NTSC
[Manual] HE-1101 Operation Manual v2.0
[Software] HE-1101 micom bios v1.2
[A&E Specification] HE-1101 A&E Specification v1.0
[Brochure] HE-1101
