DC-E4216WRX-A

Full HD IR Bullet Camera
/ NDAA Compliant
  • Easy installation with DirectIP NVR
  • Full HD (1080p) resolution
  • Fixed-focal lens (f=2.8mm)
  • micro SD/SDHC/SDXC
  • Alarm in / out
  • IK10 / IP67 supports
  • PoE (IEEE 802.3af Class 2)
  • Day and night (ICR)
  • True wide dynamic range (WDR)
  • IR LED (30m / 98.4 ft (4 ea))
  • 3-axis mechanical design for installation
  • Supports ONVIF
Video
Image Sensor1/2.8" CMOS
Max. Resolution1920 x 1080
Scanning ModeProgressive Scan
Lens TypeFixed-focal
Focal Lengthf=2.8mm
ApertureF 2.0
Iris ControlFixed Iris
Angular Field of View111.6°(H), 61.45°(V), 127.3°(D)
Min. IlluminationCOLOR : 0.1 lux @ F2.0
B/W : 0 lux (IR LED ON)
S/N RatioMore than 45dB
Dynamic Range120dB
Electronic Shutter SpeedAuto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15)
Day and Night IR cut filter with auto switch
IR Distance (LEDs)30m / 98.4 ft (4 ea)
Image SettingExposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control)
Backlight CompensationOn / Off
Mirroring / PivotHorizontal / Vertical / Pivot
Image Stabilizer-
Privacy Masking8 Zones
Intelligent VideoVideo Motion Detection, Active Tampering Alarm, Trip Zone
Video Out -
Network
Video Compression H.265, H.264 (MP) M-JPEG,
Intelligent CodecSupported
Video Compression Level (Quality)Basic, Standard, High, Very High
Bitrate ControlH.265 - CBR / VBR, H.264 - CBR / VBR
IP Camera Protocol DirectIP 2.0, ONVIF
Max. Frame Rate30ips : 1920 x 1080(WDR)
Supported Resolution1920x1080, 1280x720, 640x360, 352x240
Multi-video Streaming Quadruple Streaming
Network Protocols DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2
Security SSL Encryption, Multi-user Authority, IEEE 802.1x ,IP Filtering, HTTPS
Remote Access Client DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite
EthernetRJ45 (10/100BASE-T)
Recording Session Buffer (NLTSrec)Yes (Up to 60MB)
Edge Storagemicro SD/SDHC/SDXC, Smart Failover (Up to 512GB)
ALARM AND EVENT
Trigger EventMotion Detection, Alarm in, Tampering, Trip Zone
Event NotificationRemote S/W, Email (with Image)
Alarm In / Out1 / 1
Environmental
Vandal Proof CasingIK10
Outdoor ReadyIP67
MaterialMetal
Operating Temperature-20°C ~ +55°C (-4°F ~ +131°F), Starting up at above 0°C (32°F)
Operating Humidity0% ~ 90%
Electrical
Power SourcePoE (IEEE 802.3af Class 2)
Power ConsumptionPoE, IEEE 802.3af (Class 2), 6.1W
ApprovalFCC, CE, KC
Mechanical

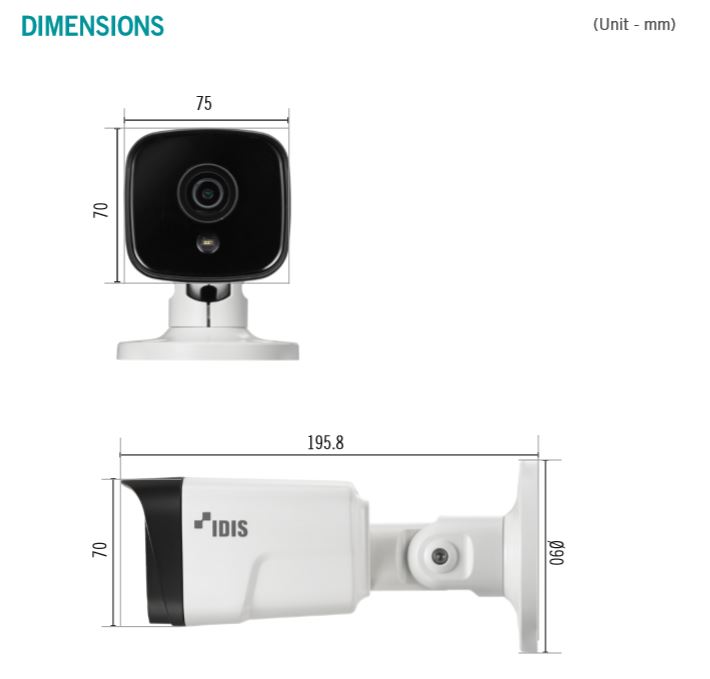

Dimensions (W x H)75mm x 70mm x 195.8mm (2.95" x 2.75" x 7.7")
Weight0.655 kg
Installation environment Accessory configuration

Wall

Junction Box
Model:DA-JB4150

or

Junction Box
Model:DA-JB2400

Celling

Junction Box
Model:DA-JB4150

or

Junction Box
Model:DA-JB2400

Pole

Junction Box
Model:DA-JB4150

+

Pole Mount
Model:DA-LM2000

or

Pole Mount
Model:DA-LM2000

+

Junction Box
Model:DA-JB2400

Corner

Corner Mount
Model: DA-RM2000

+

Junction Box
Model: DA-JB2400

or

Junction Box
Model: DA-JB4150

+

Corner Mount
Model: DA-RM2000
