DD-1216

DirectIP™ 16-channel Decoder

DD-1216

DirectIP™ 16-channel Decoder
  • Performance

  • Usability

  • Scalability

  • Easy Installation

CASE STUDY

Commercial

Education

Residential

Healthcare

Decoder
Video Compression H.264, H.265
Video Inputs 16ch IP
Video Input resolution up to 12MP
Supported Devices DirectIP NVR, IDIS IP Camera
Video Outputs 1 HDMI, 1 VGA, 1 CVBS
Display Resolution "HDMI , VGA : 3840x2160, 2560x1440, 1920x1200, 1920x1080, 1680x1050, 1600x1200, 420x480, 720x576 C[removed] 640x480"
Diplay Speed Up to 480ips
Max. Network throughput 50Mbps
Newtork Connection Gigabit Ethernet x1
General

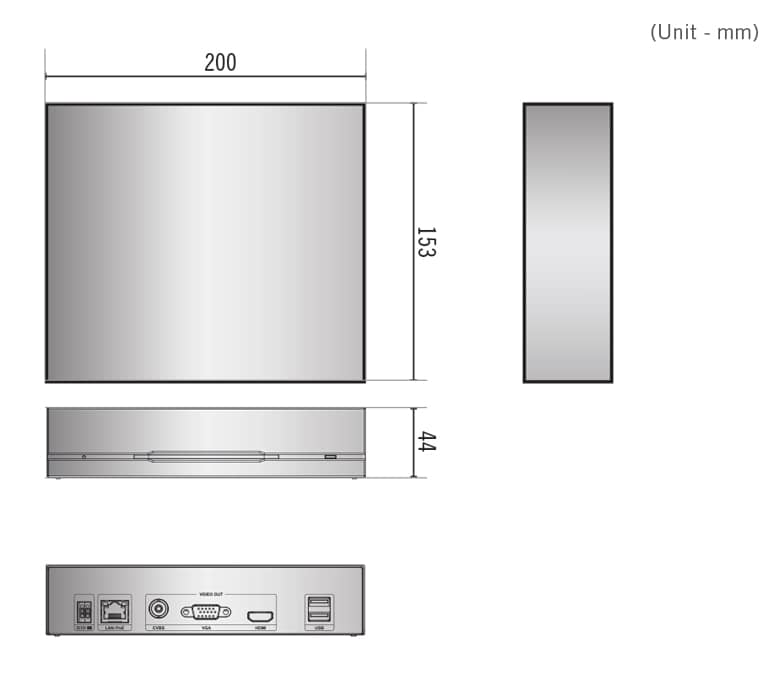

Dimension (W x H x D) 200mm x 44mm x 153mm (7.9" x 1.7" x 6.0")
Unit Weight 0.78kg (1.72lb)
Operating Temperature 0°C to 40°C (32℉ ~ 104℉)
Shipping Weight 1.11kg
PoE(class) Yes(IEEE 802.3af Class 0)
Power Source 12VDC, PoE
Power Consumption 12.7W
Approvals FCC, CE, KC
[Brochure] DD-1216
[Manual] DD-1216 Operation Manual v1.0
[Software] DD-1216 v1.0.1
[Software] DD-1216 v1.0.2
[A&E Specification] DD-1216 A&E Specification v1.0
