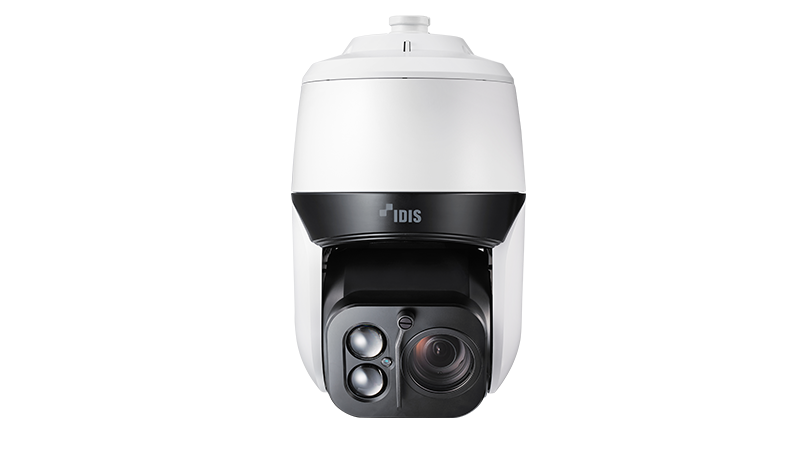

5MP 31x IR PTZ Camera
  • Easy installation with DirectIP NVR
  • 5MP (3072 x 1728) resolution
  • AF optical zoom lens (f=6.5 - 202mm), 31x zoom
  • micro SD/SDHC/SDXC, Smart Failover (Up to 128GB)
  • Two-way audio
  • Alarm in / out
  • IK10 / IP66 supports
  • Built-in heater
  • PoE (IEEE 802.3bt), 24V AC
  • Day and night (ICR)
  • True wide dynamic range (WDR)
  • Electronic Image Stabilization (EIS) with gyro sensor
  • 200m / 656.2ft
  • Supports ONVIF


5MP 31x IR PTZ Camera
  • 4K High Resolution

  • AF optical zoom lens

  • IP66

  • IR LED





Public Safety

Image Sensor 1/1.7" CMOS
Max. Resolution 3072 x 1728
Scanning Mode Progressive Scan
Lens Type AF Zoom Lens
Focal Length f=6.5 - 202mm (31x)
Aperture F1.55 - 4.8
Iris Control DC Auto Iris (HALL SENSOR)
Angular Field of View Wide : 58.2º(H), 34.4º(V), 65.2º(D) Tele : 1.99º(H), 1.13º(V), 2.3º(D)
Min. Illumination Color : 0.1 lux @ F1.55 B/W : 0 lux (IR LED ON)
Dynamic Range 120dB (True WDR)
Electronic Shutter Speed Auto / Manual (1/30 ~ 1/10000), Anti-Flicker, Slow Shutter ( 1~1/5, 1/7.5, 1/15)
Day and Night IR cut filter with auto switch
IR Distance (LEDs) 200 m /656.2ft (2ea)
Image Setting Configurable Exposure, White Balance, Sharpness
Digital Noise Reduction Configurable 2DNR/3DNR
Backlight Compensation On / Off / HSBLC
Mirroring / Pivot Horizontal / Vertical
Image Stabilizer Yes (DIS)
Privacy Masking 8 Zones
Intelligent Video Video Motion Detection, Active Tampering Alarm
Auto Tracking Yes
Video Out 1 Terminal Block
Pan Range 360° (Endless)
Pan Speed Pan: 0.02~180°/sec (preset 240°/sec)
Tilt Range 200° (-10~190°)
Tilt Speed Tilt: 0.02~180°/sec (preset 240°/sec)
Preset 256ea
Video Compression H.265, H.264 (MP), M-JPEG
Intelligent Codec Supported
Video Compression Level (Quali Basic, Standard, High, Very High
Bitrate Control H.264 - CBR / VBR, H.265 - CBR / VBR
Audio Compression ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law
Two-way Audio Yes
IP Camera Protocol DirectIP™ Mode : DirectIP Compatibility Mode : IDIS ONVIF Profile S
Max. Frame Rate DirectIP™ Mode : 30ips : 3072 x 1728(WDR) Compatibility Mode : 30ips : 3072 x 1728(WDR)
Supported Resolution DirectIP™ Mode : - Compatibility Mode : 3072 x 1728 (5MP), 1920x1080, 1280x720, 640x360
Multi-video Streaming DirectIP™ Mode : Quadruple Streaming Compatibility Mode : Quadruple Streaming
Network Protocols DirectIP™ Mode : DirectIP Protocol Compatibility Mode : RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP
Security DirectIP™ Mode : SSL Encryption Compatibility Mode : Multi-user Authority, IEEE 802.1x  IP Filtering, HTTPS, SSL Encryption
Remote Access Client DirectIP™ Mode : DirectIP NVR Connection Compatibility Mode : IDIS Web, IDIS Mobile, IDIS Solution Suite
Ethernet RJ45 (10/100/1000BASE-T)
Recording Session Buffer (NLTS Yes (Up to 60MB)
Edge Storage micro SD/SDHC/SDXC, Smart Failover (Up to 128GB)
Trigger Event Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone
Event Notification Remote S/W, Email (with Image)
Audio In/ Out Line-in 1ea / Line-out 1ea
Alarm In / Out Input 8ea / Output 2ea
Vandal Proof Casing IK10
Outdoor Ready IP66, Heater
Operating Temperature -40°C ~ +60°C  *Starting up at above -20°C (-4°F)
Operating Humidity 0% ~ 90%
Power Source 24VAC, PoE (75W)
Power Consumption Max 68.6W(Heater on)
Power Consumption HEATER OFF 24V~, 2.1A, 38.2W, 50/60Hz PoE, IEEE 802.3bt(Class 7), 29.7W HEATER ON 24V~, 3.7A, 68.58W, 50/60Hz PoE, IEEE 802.3bt(Class 7), 58.6W
Approval FCC, CE(50130-4), KC

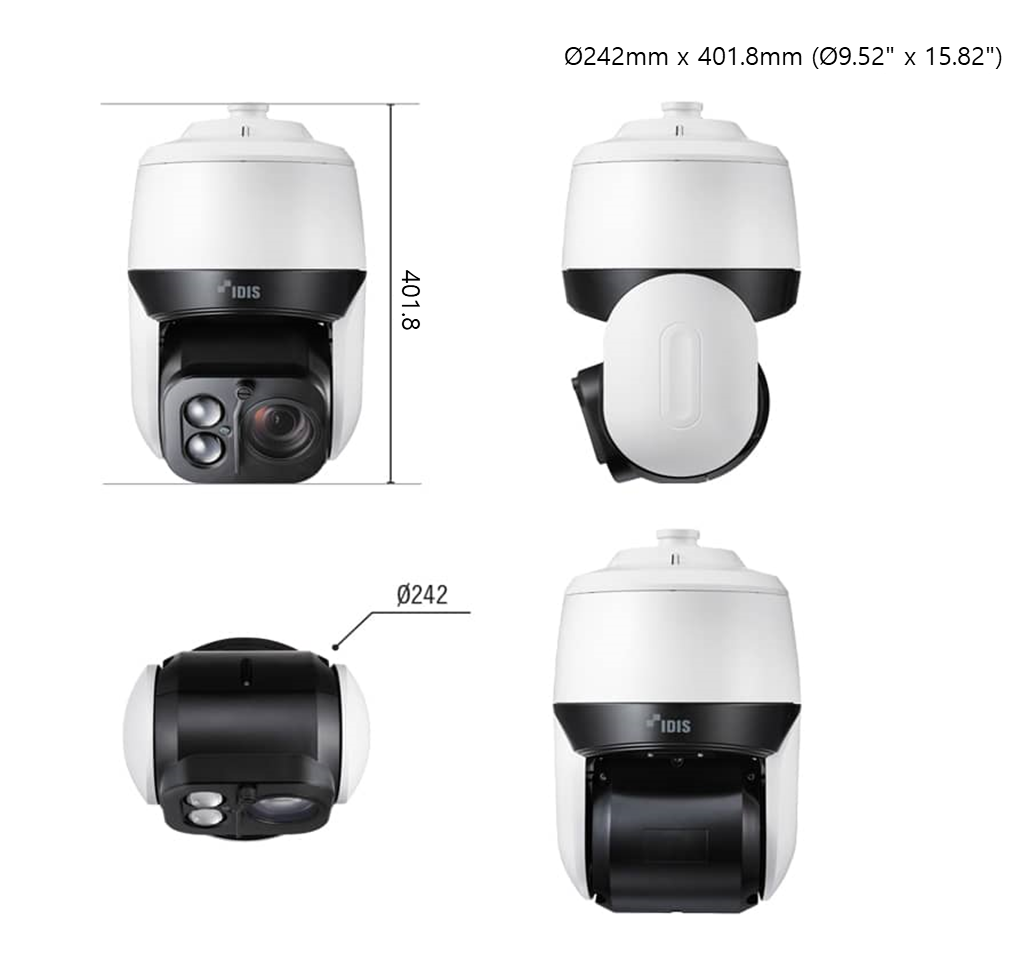

Dimensions (Ø x H) Ø242mm x 401.1mm (Ø9.52" x 15.79")
Weight 7.4kg (16.31 lb)
