5MP IR Turret Camera
/ NDAA Compliant
  • 5MP (2592x1944) resolution
  • Fixed-focal lens (f=2.8mm)
  • micro SD/SDHC/SDXC
  • Day and night (ICR)
  • True wide dynamic range (WDR)
  • IR LED (25 m (2 ea))
  • ONVIF Protocol
Image Sensor1/2.7" CMOS
Max. Resolution 2592 x 1944
Scanning ModeProgressive Scan
Lens type Fixed-focal
Focal Lengthf=2.8mm
ApertureF 1.6
Iris ControlFixed Iris
Angular Field of View Wide 99°(H), 72°(V), 131°(D)
Min. IlluminationColor 0.05lux @ F1.2 (AGC ON) , B/W 0 lux @ IR ON
Dynamic Range 120dB, True WDR
Electronic Shutter Speed 1/5 ~ 1/20000s, Anti-Flicker, Slow Shutter (1~1/5, 1/7.5, 1/15)
Day & Night IR cut filter with auto switch
IR Distance (LEDs)25 m (2 ea)
Pan/Tilt RangeBracket: Pan 0-360°; Lens: Pan 0-360°, Tilt: 0-80°
Video CompressionH.265, H.264(MP)
Bit rate ControlCBR / VBR
Max. Frame Rate30ips : 2592×1944 (WDR)
Audio CompressionG711A (G.711 a-Law), G711U (G.711 u-Law), ADPCM 16K, G726
Supported Resolution2592×1944, 2592x1520, 2304x1296, 1920x1080, 1280x960, 1280x720
Multi-Video StreamingTriple
Edge Storage* (Optional)Micro SD/SDHC/SDXC memory card (class 6 or higher, max. 256GB)
Audio and Alarm
Audio In/OutInternal MIC x 1/ 0
Alarm In/Out-
Operating Temperature-30°C ~ +55°C (-22°F ~ +131°F)
Operrating Humidity0% ~ 90%
Power SourceDC 12V, POE (IEEE 802.3af Class 3)
Power ConsumptionMax. 6.5W
ApprovalFCC, CE, IP66

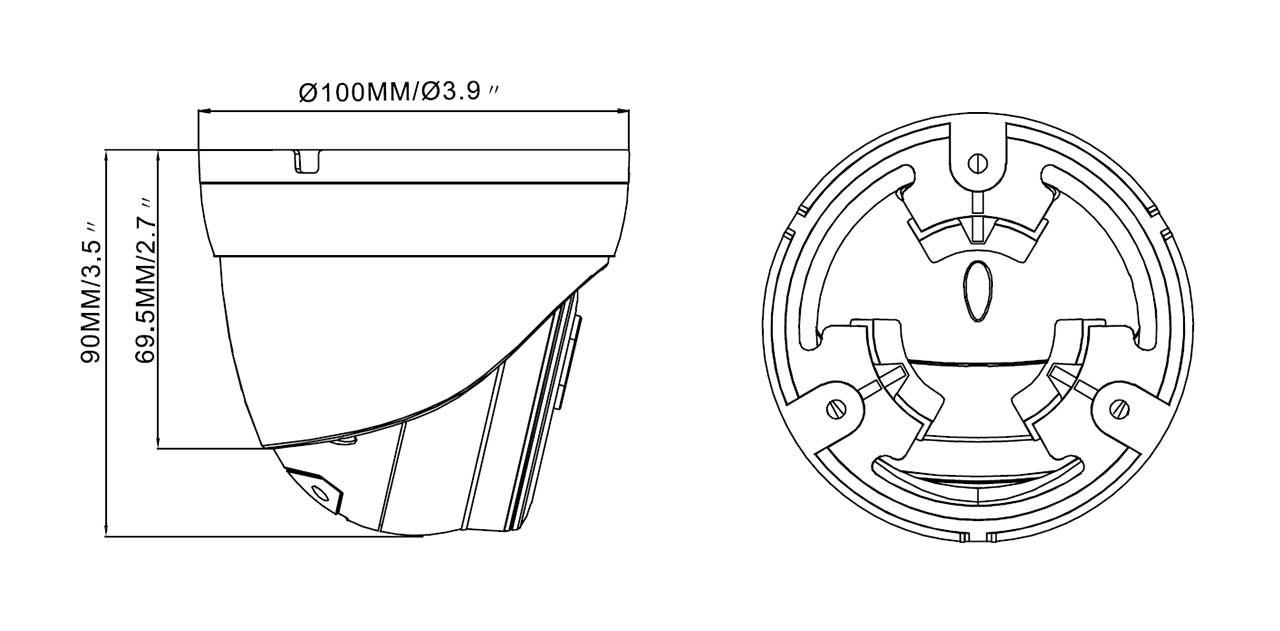

External Dimensions(Ø x H)90mm x Ø100mm (3.5” x Ø3.9”)
Weight(Main Unit) 0.53kg (1.17lb)
Installation environment Accessory configuration
Manual DC-D4511WERX, DC-D4531WERX Installtion Manual
Software Firmware
Software Device Config Tool
Manual DC-D4511WERX, DC-D4531WERX Configuration Guide for IDIS NVR
Software D4511/D4531WERX Firmware Stable version
Brochure DC-D4511WERX
