5MP MFZ IR Turret Camera
/ NDAA Compliant
  • 5MP (2592x1944) resolution
  • Motorized Vari-focal f=2.7 -12mm
  • Micro SD/SDHC/SDXC
  • Day and night (ICR)
  • True wide dynamic range (WDR)
  • IR LED (45 m (4 ea))
  • ONVIF Protocol
Image Sensor1/2.7" CMOS
Max. Resolution 2592 x 1944
Scanning ModeProgressive Scan
Lens type Motorized Vari-focal
Focal Lengthf=2.7 - 12mm
ApertureF 1.83 (Wide) ~ 3.32(Tele)
Iris ControlDC Iris
Angular Field of View Wide Wide: 99°(H), 72°(V), 131°(D)
Tele: 32°(H), 23°(V), 40°(D)
Min. IlluminationColor 0.05lux @ F1.2 (AGC ON) , B/W 0 lux @ IR ON
Dynamic Range 120dB, True WDR
Electronic Shutter Speed 1/5 ~ 1/20000s, Anti-Flicker, Slow Shutter (1~1/5, 1/7.5, 1/15)
Day & Night IR cut filter with auto switch
IR Distance (LEDs)45 m (4 ea)
Pan/Tilt RangeBracket: Pan 0-360°; Lens: Pan 0-360°, Tilt: 0-80°
Video CompressionH.265, H.264(MP)
Bit rate ControlCBR / VBR
Max. Frame Rate30ips : 2592×1944 (WDR)
Audio CompressionG711A (G.711 a-Law), G711U (G.711 u-Law), ADPCM 16K, G726
Supported Resolution2592×1944, 2592x1520, 2304x1296, 1920x1080, 1280x960, 1280x720
Multi-Video StreamingTriple
Edge Storage* (Optional)Micro SD/SDHC/SDXC memory card (class 6 or higher, max. 256GB)
Audio and Alarm
Audio In/OutRCA 1ea / RCA 1ea
Alarm In1 switch input
Alarm Out0.5 A at 125 VAC/ 2A at 30 VDC
Operating Temperature-30°C ~ +55°C (-22°F ~ +131°F)
Operrating Humidity0% ~ 90%
Power SourceDC 12V, POE (IEEE 802.3af Class 3)
Power ConsumptionMax. 9W
ApprovalFCC, CE, IP66

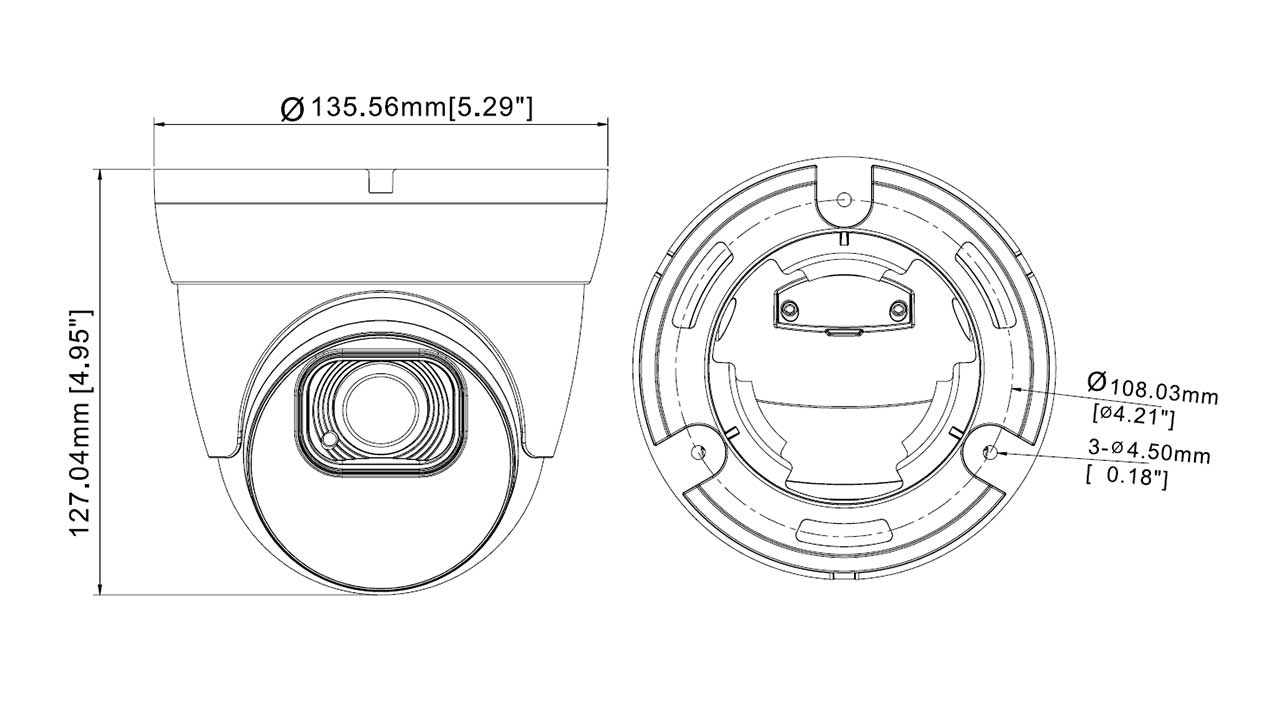

External Dimensions(Ø x H)Ø135.6mm x 127mm (Ø5.3” x 4.95”)
Weight(Main Unit) 0.84kg (1.85lb)
