DC-D4536HRX-A

5MP Vandal-Resistant IR Dome Camera
/ NDAA Compliant
  • 5MP (2592x1944) resolution
  • Motorized Vari-focal lens (f=3.0 - 13.5mm)
  • micro SD/SDHC/SDXC
  • Alarm in / out
  • IK10 / IP67
  • Built-in heater
  • Day and night (ICR)
  • True wide dynamic range (WDR)
  • IR LED (Distance : 30 m / 98.4 ft)
  • PoE (IEEE 802.3af Class 3), 12V DC
  • 3-axis mechanical design for installation
  • Easy installation with DirectIP NVR
  • Supports ONVIF

DC-D4536HRX-A

5MP Vandal-Resistant IR Dome Camera
/ NDAA Compliant
  • High Resolution

  • Motorized VF

  • Day & Night

  • True WDR

Video
Image Sensor1/2.8
Max. Resolution2592 x 1944
Scanning ModeProgressive Scan
Lens TypeMotorized Vari-focal
Focal Lengthf=3.0-13.5mm
ApertureF1.4 - 3.2
Iris ControlDC IRIS
Angular Field of ViewWide : 91°(H) 66°(V) 120°(D)
Tele : 31°(H) 23°(V) 38°(D)
Pan/Tilt/Rotate RangePan: -175° ~ 175°, Tilt: 0° ~ 67°, Rotate: -177° ~ 177°
Min. IlluminationCOLOR : 0.15 lux @ F1.4
B/W : 0 lux (IR LED ON)
Dynamic Range120dB (True WDR)
Electronic Shutter SpeedAuto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15)
Day and Night IR cut filter with auto switch
IR Distance (LEDs)30m/98.4ft (6ea)
Image SettingExposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control)
Backlight CompensationOn / Off
Image Stabilizer-
De-fog-
Privacy Masking8 Zones
Intelligent VideoVideo Motion Detection, Active Tampering Alarm, Trip Zone
Video Out -
Network
Video Compression H.265, H.264 (MP) M-JPEG
Intelligent CodecSupported
Bitrate ControlH.265 - CBR / VBR, H.264 - CBR / VBR
Audio Compression-
Two-way Audio-
IP Camera Protocol DirectIP 2.0, ONVIF Profile S
Max. Frame Rate4:3 mode : 30ips : 2592 x 1944(WDR)
16:9 mode : 30ips : 2592 x 1456(WDR)
Supports Resolution4:3 : 2592x1944, 1920x1440, 1280x960, 640x480
16:9 : 2592x1456, 1920x1080, 1280x720, 640x360
Multi-video StreamingQuadruple Streaming
Network Protocols DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2
Security SSL Encryption, Multi-user Authority, IEEE 802.1x
IP Filtering, HTTPS
Remote Access Client DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite
EthernetRJ45 (10/100BASE-T)
Recording Session Buffer (NLTSrec)Yes (Up to 60MB)
Edge Storagemicro SD/SDHC/SDXC, Smart Failover (Up to 512GB)
ALARM AND EVENT
Trigger EventMotion Detection, Alarm in, Tampering, Trip Zone
Event NotificationRemote S/W, Email (with Image)
-Pre-recorderd Voice Alert (IDIS proOn / Off
Audio In/ Out-
Alarm In / Out1 / 1
Environmental
Vandal Proof CasingIK10
Outdoor ReadyIP67, Heater
Operating Temperature-40°C ~ 55°C (-40°F ~ 131°F)
*Starting up at above -20°C (-4°F)
Operating Humidity0% ~ 90%
Electrical
Power Source12VDC, PoE IEEE 802.3af (Class 3)
Power Consumption12V=, 1.1A, 13.2W
PoE, IEEE 802.3af(Class 3), 11W
ApprovalFCC, CE, KC
Mechanical

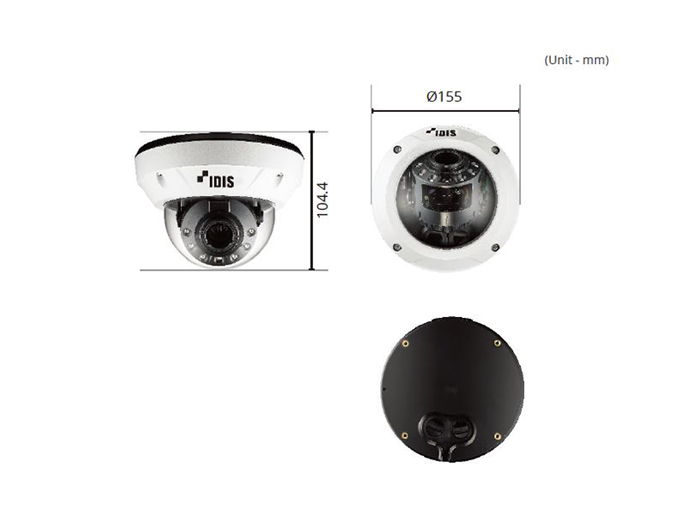

Dimensions (Ø x H)Ø155 x 104.4mm
Weight1 kg(2.20lb)
