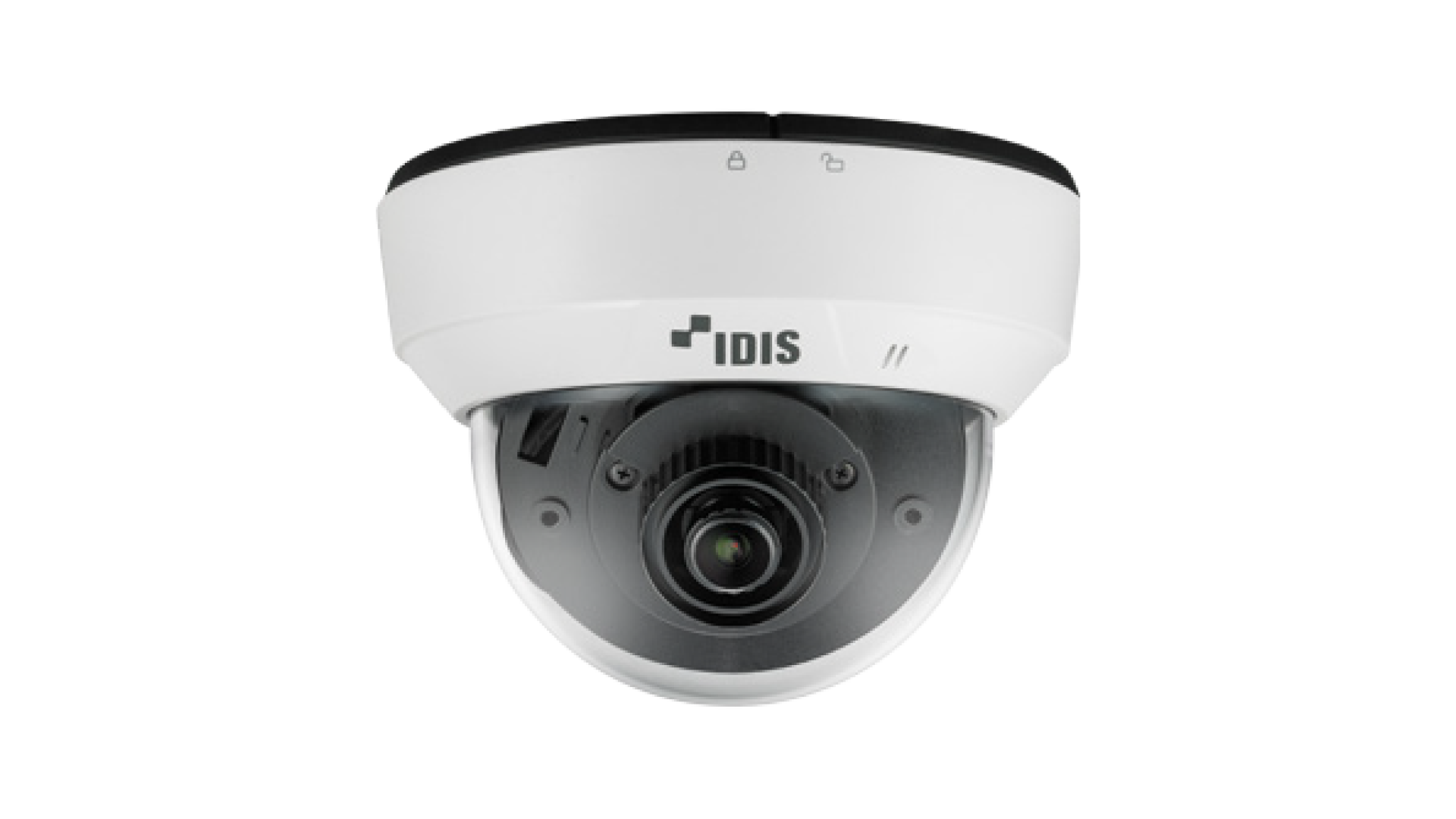

Full HD Dome Camera
  • Easy installation with DirectIP NVR
  • Full HD (1080p) resolution
  • Fixed-focal lens (f=2.8mm)
  • micro SD/SDHC/SDXC, Smart Failover (Up to 256GB)
  • Internal Mic
  • PoE (IEEE 802.3af Class 2)
  • Day and night (ICR)
  • True wide dynamic range (WDR)
  • 3-axis mechanical design for installation
  • Supports ONVIF


Full HD Dome Camera
  • Direct IP


  • FullHD High Resolution




Public Safety


Image Sensor 1/3" CMOS
Max. Resolution 1920 x 1080
Scanning Mode Progressive Scan
Lens Type Fixed-focal
Focal Length f=2.8mm
Aperture F1.8
Iris Control Fixed Iris
Angular Field of View 110.7º(H), 61.2º(V), 128.6º(D)
Pan/Tilt Range/Rotate Pan: -174° ~ 174° / Tilt: 0° ~ 70° / Rotate: -120º ~ 120º
Min. Illumination COLOR : 0.1 lux @ F2.0 B/W : 0 lux (IR LED ON)
Dynamic Range 120 dB (True WDR)
Electronic Shutter Speed Auto / Manual (1/30 ~ 1/8000), Anti-Flicker, Slow Shutter (1/7.5, 1/15)
Day and Night IR cut filter with auto switch
IR Distance (LEDs) -
Image Setting Configurable Exposure, White Balance, Sharpness
Digital Noise Reduction Configurable 3DNR
Backlight Compensation On / Off / HSBLC
Mirroring / Pivot Horizontal / Vertical / Pivot
Image Stabilizer -
De-fog On / Off
Privacy Masking 8 Zones
Intelligent Video Video Motion Detection, Active Tampering Alarm, Trip Zone
Video Out -
Video Compression H.265 , H.264 (MP), M-JPEG
Intelligent Codec Supported
Bitrate Control H.265 - VBR/CBR H.264 - VBR/CBR
Audio Compression ADPCM (16KHz), G.726 (16KHz), G.711 u–Law (8KHz) , G.711 a–Law (8KHz)
Two-way Audio -
IP Camera Protocol DirectIP™ Mode : DirectIP Compatibility Mode : IDIS ONVIF Profile S
Max. Frame Rate DirectIP™ Mode : 30ips : 1920 x 1080(WDR) Compatibility Mode : 30ips : 1920 x 1080(WDR)
Supports Resolution DirectIP™ Mode : 1920x1080, 1280x720, 704x480, 640x360, 352x240 Compatibility Mode : 1920x1080, 1280x720, 704x480, 352x240
Multi-video Streaming DirectIP™ Mode : Quadruple Streaming Compatibility Mode : Triple Streaminging
Network Protocols DirectIP™ Mode : DirectIP Protocol Compatibility Mode : RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP
Security DirectIP™ Mode : SSL Encryption Compatibility Mode : Multi-user Authority, IEEE 802.1x  IP Filtering, HTTPS, SSL Encryption
Remote Access Client DirectIP™ Mode : DirectIP NVR Connection Compatibility Mode : IDIS Web, IDIS Mobile, IDIS Solution Suite
Ethernet RJ45 (10/100BASE-T)
Recording Session Buffer Yes (Up to 60MB)
Edge Storage micro SD/SDHC/SDXC, Smart Failover (Up to 256GB)
Trigger Event Motion Detection, Tampering, Trip Zone
Event Notification Remote S/W, Email (with Image)
Audio In/ Out Internal Mic 1ea
Alarm In / Out -
Vandal Proof Casing -
Outdoor Ready -
Operating Temperature -10°C ~ +50°C (+14°F ~ +122°F) *Starting up at above 0°C (32°F)
Operating Humidity 0% ~ 90%
Power Source PoE (IEEE 802.3af Class 2)
Power Consumption PoE (IEEE 802.3af Class 2), 4.01W
Approval FCC, CE

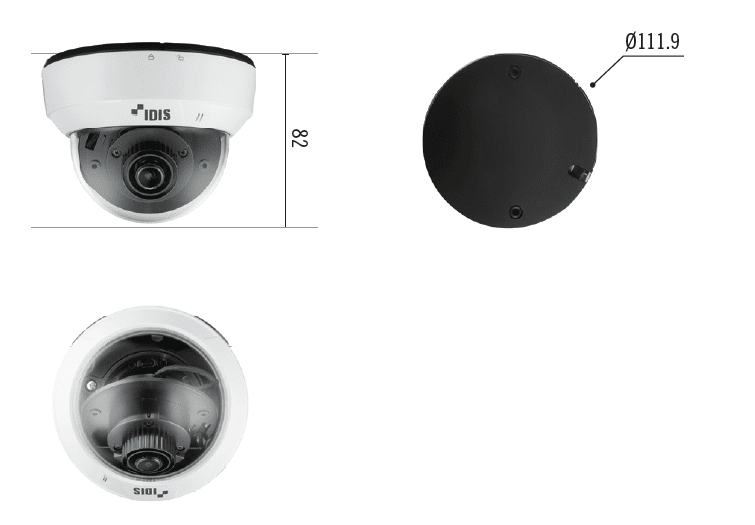

Dimensions (Ø x H) Ø111.9mm x 82mm (Ø4.41" x 3.23")
Weight 0.25 kg (0.55 lb)
