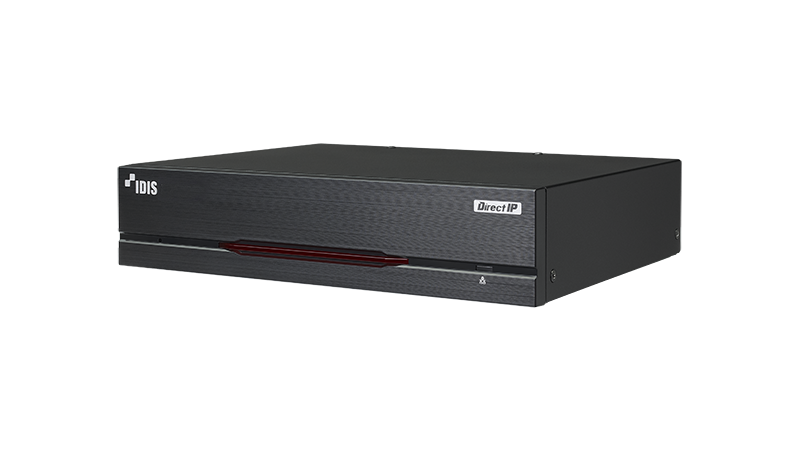

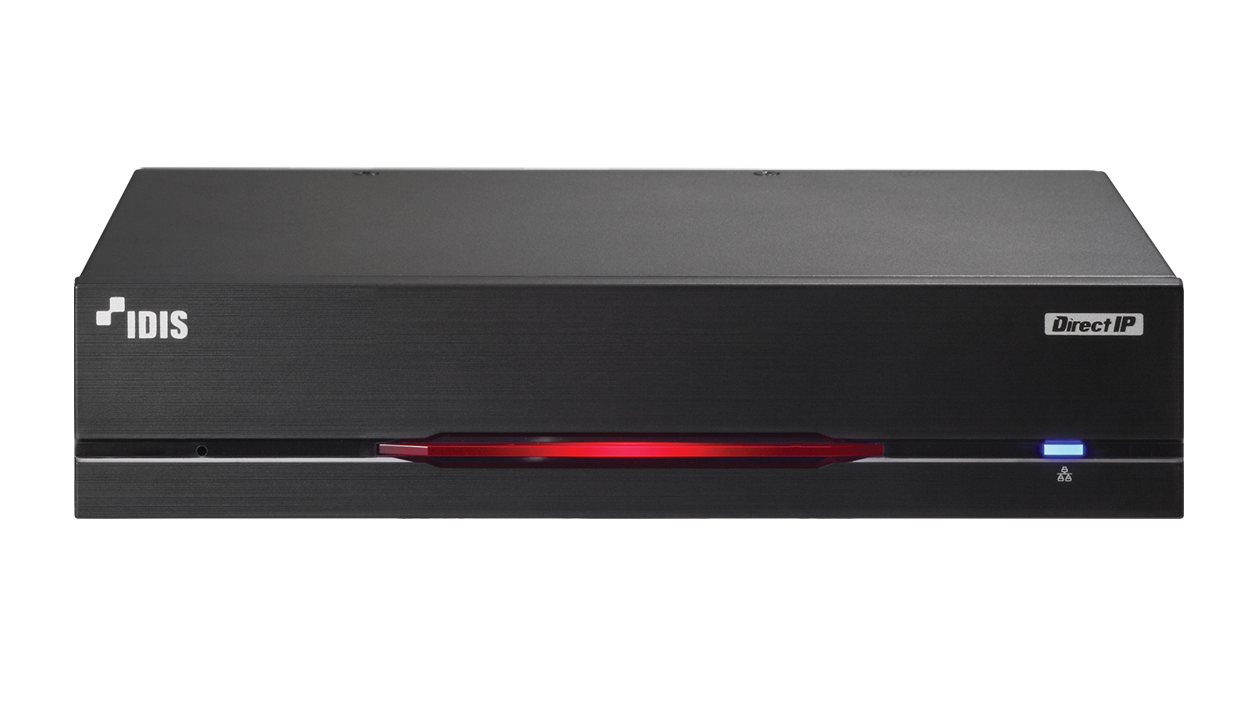

DV-1304

4ch AI in the Box
/ NDAA Compliant
  • Powered by the most advanced IDIS Deep-Learning Analytics (IDLA)
  • People Counting and Occupancy Control
  • Queue Monitoring
  • Heatmap
  • Social Distancing Violation
  • Mask Rule Violation
  • Generates real-time event notifications with high accuracy
  • Live Occupancy Dashboard to maintain capacity limits
  • Dashboard Reporting for visitor flow, checkout traffic, and compliance adherence
  • Rapid DirectIP plug-and-play installation
  • Simply connect to an IDIS NVR
  • Supports 4-ch IP cameras
Video
Video Inputs4 IP Channels
Supported DeviceDirectIP NVR (Recording functionality is not included.)
VA SupportPeople Counting, Occupancy Control
Queue Monitoring
Heatmap
Social Distancing Violation
Mask Rule Violation
Network
Video CompressionH.265, H.264
Network Connection100M Ethernet x 1 (100Base-TX) with PD
100M Ethernet x 1 (100Base-TX) with PSE (PSE need Adaptor)
Environmental
Operating Temperature0°C to 40°C (32°F to 104°F)
Operating Humidity0% ~ 90%
Electrical
Power Input48V=, PoE
Power Consumption48V=, 0.8A, 38.4W
PoE, IEEE 802.3at(Class 4), 25W
DC OUTPUT : 48V=, 0.35A MAX
ApprovalFCC, CE, KC
Mechanical

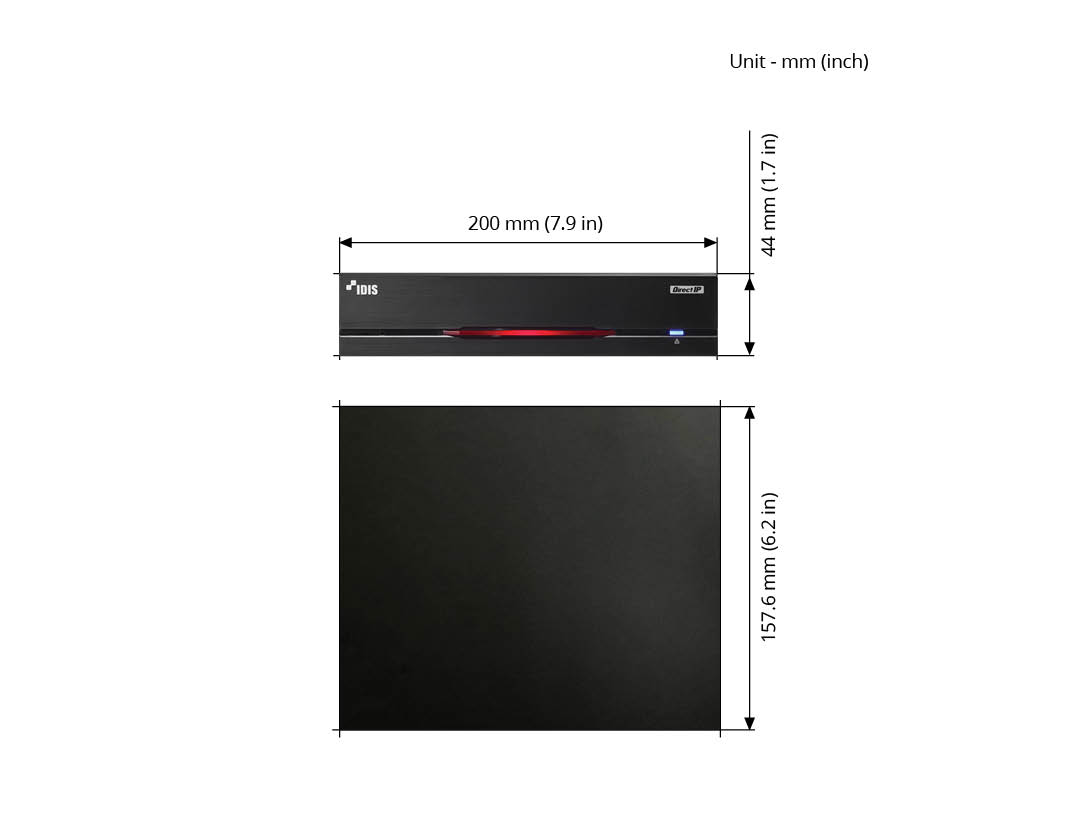

Unit Dimensions (W x H x D)200mm x 44mm x 157.6mm (7.9" x 1.7" x 6.2")
Unit Weight0.88kg (1.94lb)
Installation environment Accessory configuration
