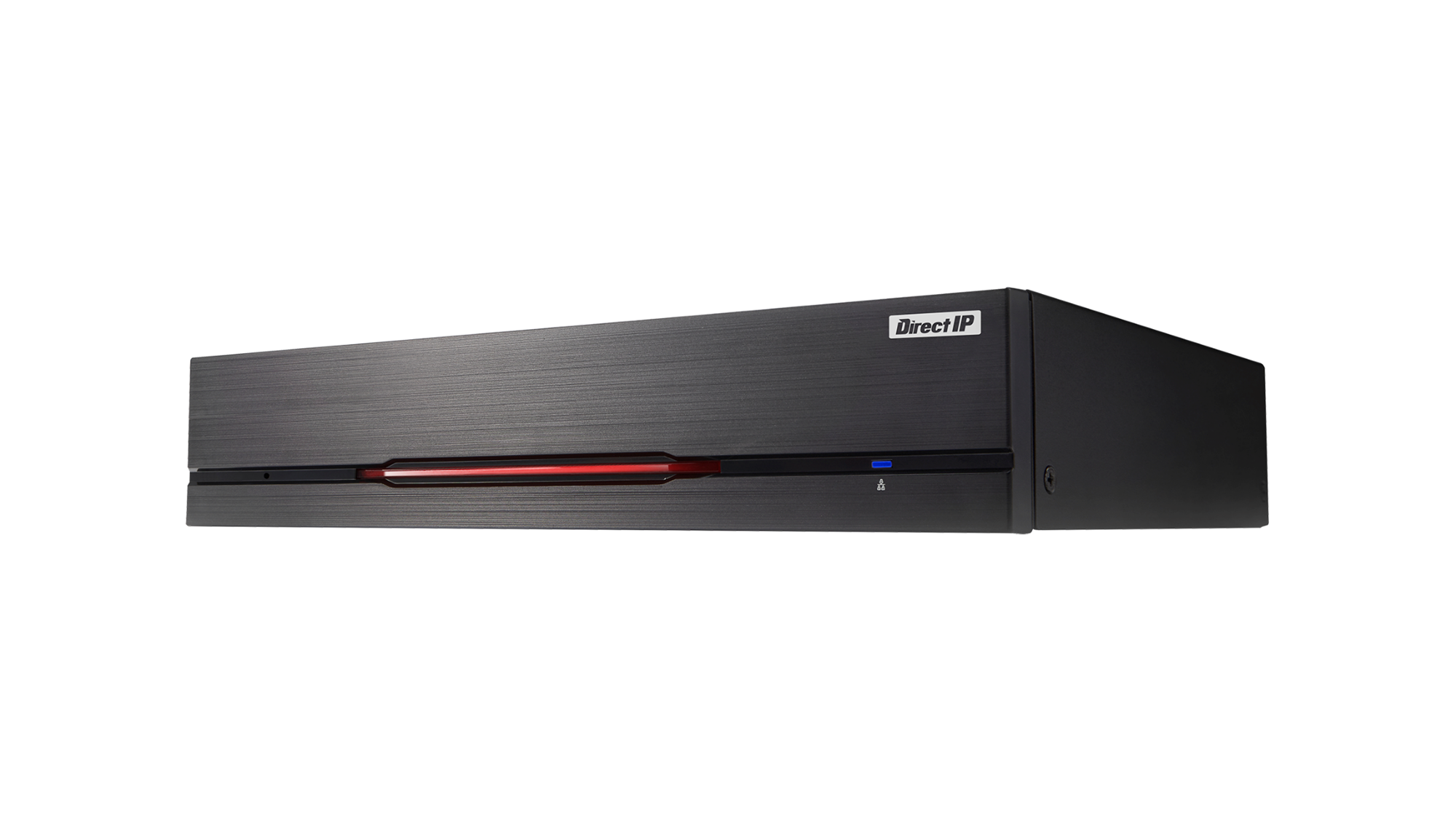

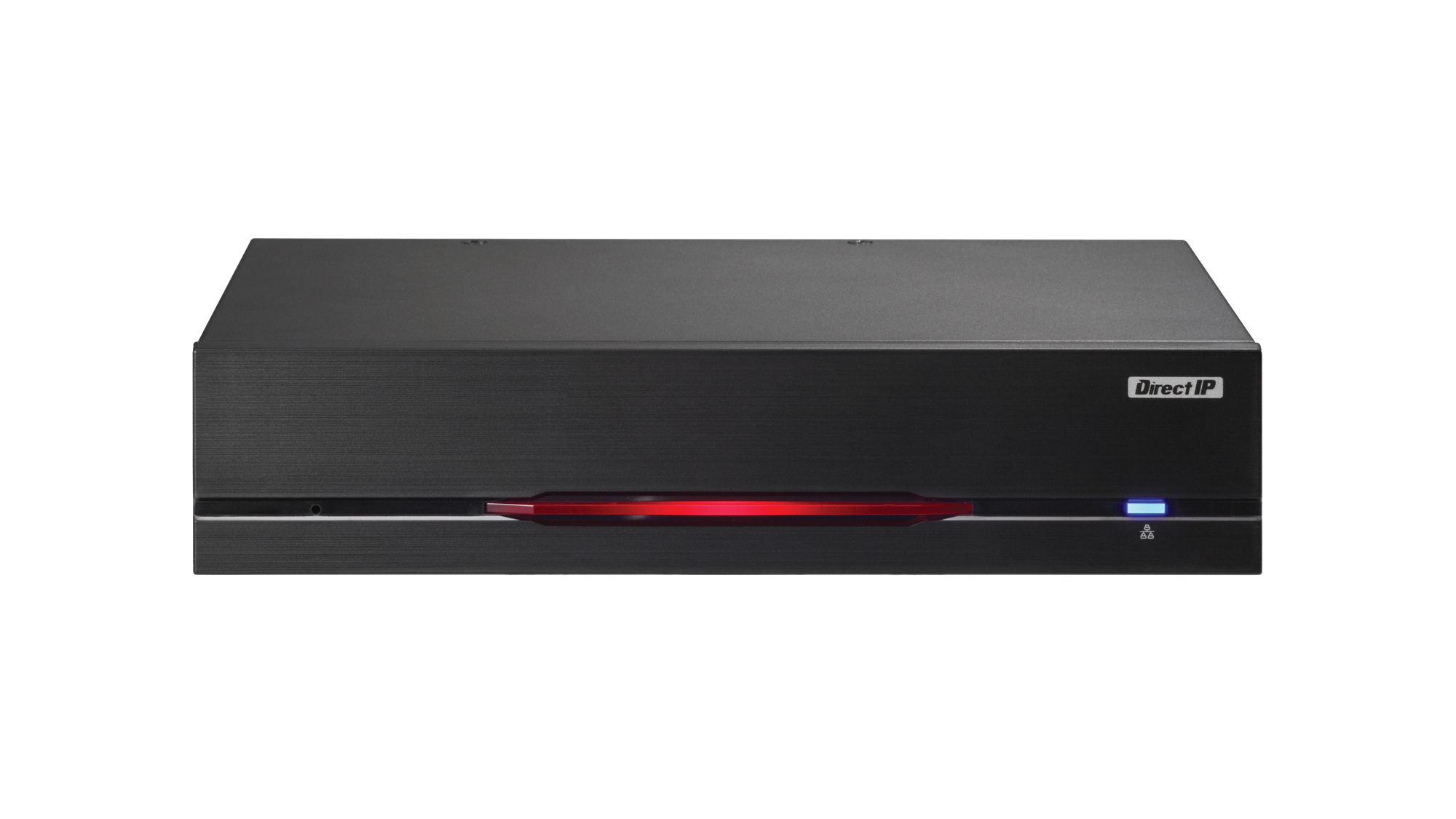

HDMI/VGA Video Encoder
/ NDAA Compliant
  • Ease integration with 3rd party system
  • Supports HDMI and VGA input ports
  • Remote Mouse and Keyboard Control through USB interface
  • Quadruple Streaming
  • Supports 3840 x 2160 resolutions
Video codecH.265, H.264, MJPEG
Intelligent Codec
Max. Framerate3840 x 2160 @ 30ips
BitrateUp to 18MP
Max Resolution 3840 x 2160
StreamingQuadruple Streaming
Max. Network Throughput50Mbps
Built in OSDEnglish, Korean

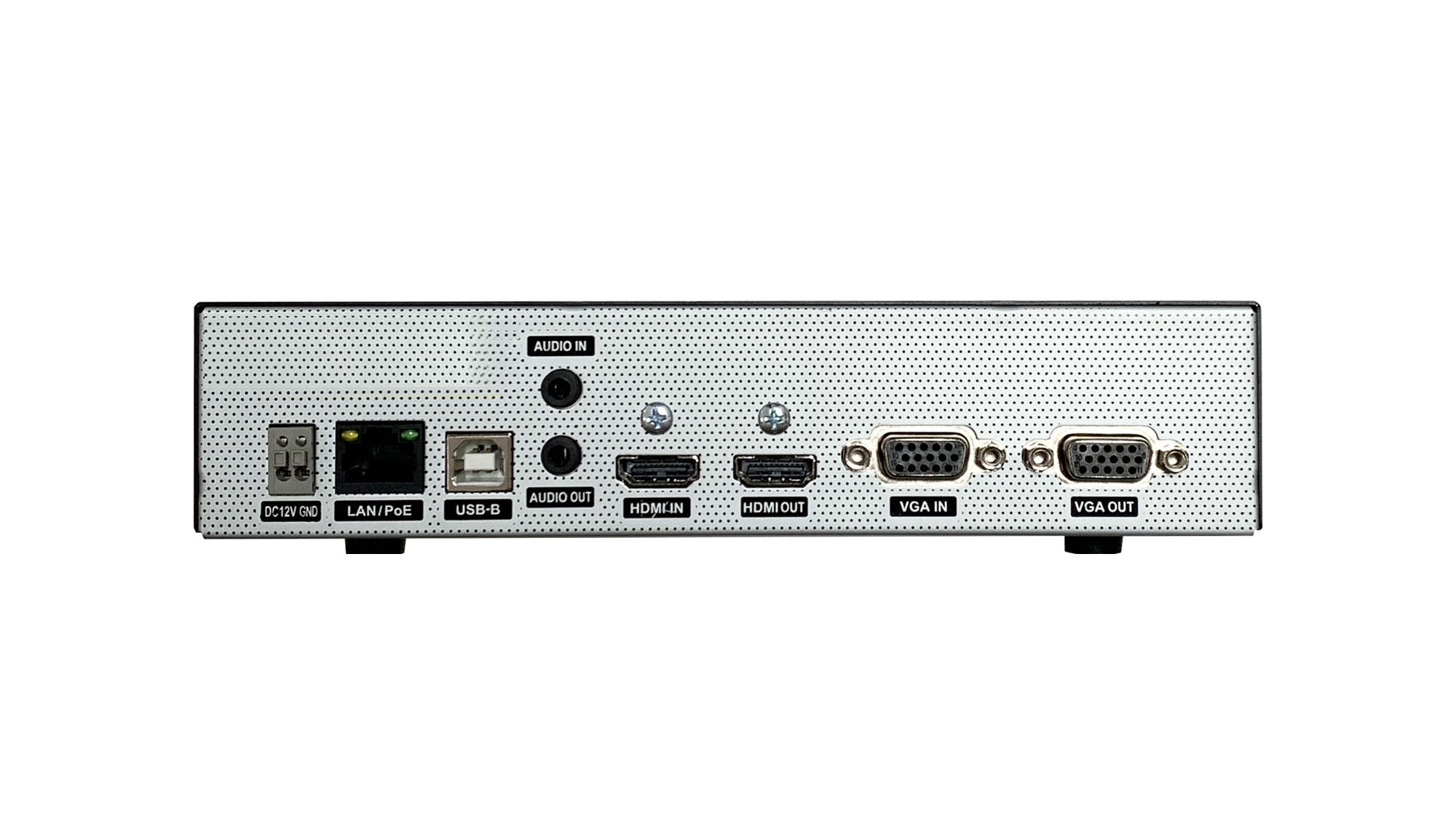

Input1 x HDMI
1 x VGA
Output1 x HDMI (Input Bypass)
1 x VGA (Input Bypass)
Audio Input / output1 x line in (3.5mm)
1 x line out (3.5mm)
Serial Interface1 x USB type B
Network interface1 x RJ45 (10/100)
IP Camera ProtocolDirectIP 2.0, ONVIF

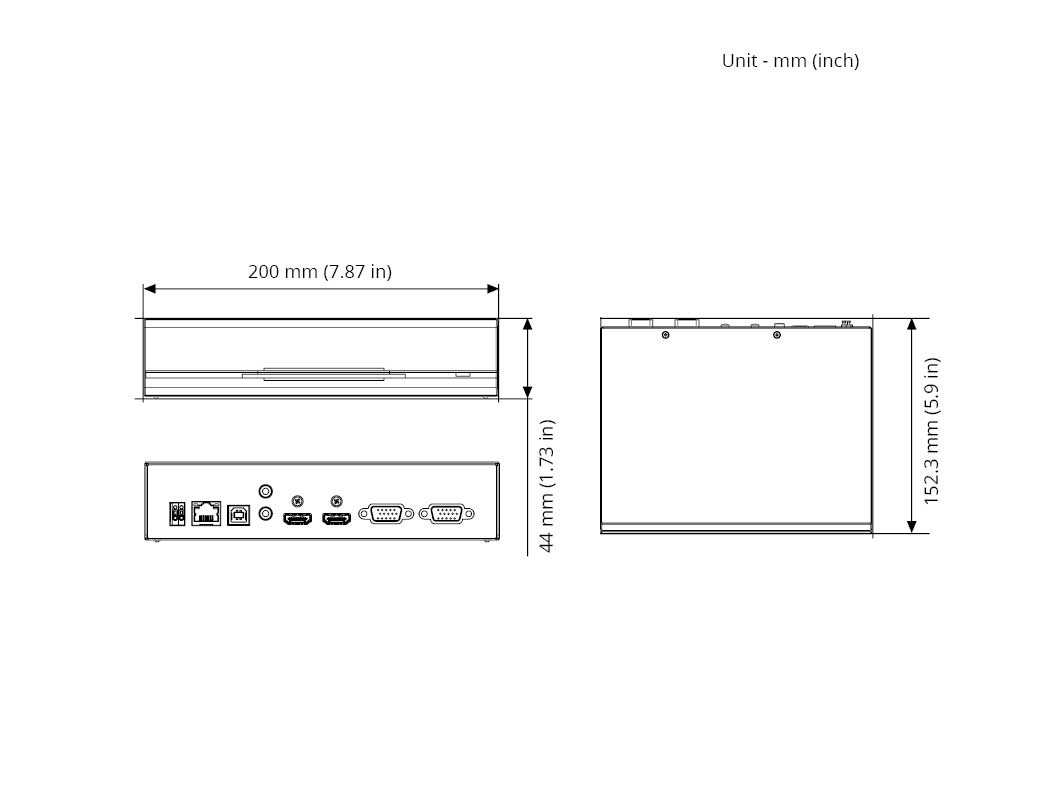

Dimension (W x H x D)200mm x 44mm x 152.3mm (7.9" x 1.7" x 6.0")
Unit Weight 0.8kg (1.76lb)
Operating Temperature0°C to 40°C (32℉ ~ 104℉)
Power source12VDC, PoE (IEEE 802.3af Class 3)
Power Consumption 12V= 0.95A, 11.4W
PoE, IEEE 802.3af(Class 3)
ApprovalsFCC, CE, KC
