DC-T4537HRXA

H.265 5M Bullet Camera
/ NDAA Compliant
  • 5MP (2592x1944) resolution
  • Motorized Vari-focal lens
  • micro SD/SDHC/SDXC
  • Two-way audio
  • Alarm in / out
  • IK10 / IP67 supports
  • Built-in heater
  • Day and night (ICR)
  • True wide dynamic range (WDR)
  • IR LED (40m / 131.2 ft (6ea))
  • 3-axis mechanical design for installation
  • PoE (IEEE 802.3af Class 3)
  • IDIS Deep-Learning Analytics (IDLA)
  • Easy installation with DirectIP NVR
  • Supports ONVIF
Video
Image Sensor1/2.8" CMOS
Max. Resolution2592 x 1944
Scanning ModeProgressive Scan
Lens TypeMotorized Vari-focal
Focal Length2.7 ~ 13.5mm
ApertureF1.4 ~ F3.2
Iris ControlDC Iris
Angular Field of View[4:3 mode]
Wide : 101.2º(H) 72.6º(V) 137.4º(D)
Tele : 30.4º(H) 22.8º(V) 38º(D)

[16:9 mode]
Wide : 101.7º(H) 53.3º(V) 121.6º(D)
Tele : 30.2º(H) 17º(V) 34.7º(D)
Min. IlluminationCOLOR : 0.15 lux @ F1.4
B/W : 0 lux (IR LED ON)
Dynamic Range120dB (True WDR)
Electronic Shutter SpeedAuto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15)
Day and NightYes (ICR)
IR Distance (LEDs)40m / 131.2 ft (6ea)
Image SettingExposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control)
Backlight Compensation-
Mirroring / PivotHorizontal / Vertical / Pivot
Image Stabilizer-
De-fogYes
Privacy Masking8 Zones
Intelligent VideoVideo Motion Detection, Active Tampering Alarm, Object Detection, Intrusion, Loitering, Line Crossing, Face Detection
Video Out-
Network
Video CompressionH.265, H.264 (MP), M-JPEG
Intelligent CodecYes
Bitrate ControlH.265 - CBR / VBR, H.264 - CBR / VBR
Audio CompressionADPCM 16K, G.726, G.711 u-Law, G.711 a-Law
Two-way AudioYes
IP Camera ProtocolDirectIP 2.0, ONVIF
Max. Frame Rate4:3 mode : 30ips : 2592 x 1944(WDR)
16:9 mode : 30ips : 2592 x 1456(WDR)
Supported Resolution4:3 : 2592x1944, 1920x1440, 1280x960, 640x480
16:9 : 2592x1456, 1920x1080, 1280x720, 640x360
Multi-video StreamingQuadruple Streaming
Network ProtocolsDirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP,
RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp, SNMPv2
SecuritySigned firmware, Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption
EthernetRJ45 (10/100BASE-T)
Recording Session Buffer (NLTSrec)Yes (Up to 60MB)
Edge Storagemicro SD/SDHC/SDXC, Smart Failover (Up to 512GB)
Alarm and Event
Trigger EventMotion Detection, Alarm in, Audio detection, Tampering, Object Detection, Intrusion, Loitering, Line Crossing, Face Detection
Event NotificationRemote S/W, Email (with Image)
Audio AlarmYes
Audio In / Out1 / 1
Alarm In / Out1 / 1
Environmental
Vandal Proof CasingIK10
Outdoor ReadyIP67, Heater
Operating Temperature-40°C ~ +55°C (-40°F ~ +131°F)
*Starting up at above -20°C (-4°F)
Operating Humidity0% ~ 90%
Electrical
Power SourcePoE (IEEE 802.3af Class 3)
Power Consumption12V=, 1A, 12W
PoE, IEEE 802.3af(Class 3), 9.7W
ApprovalFCC, CE, KC
Mechanical

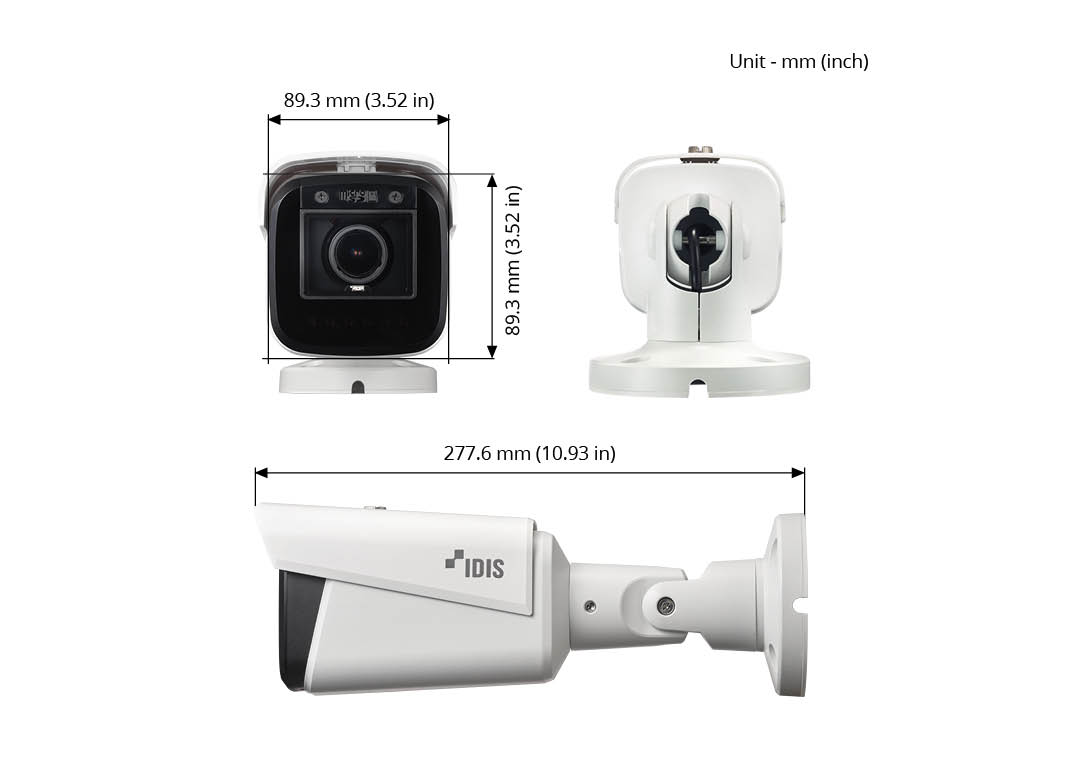

Dimensions89.3mm X 89.3mm X 277.6mm (3.52" x 3.52" x 10.93")
Weight1.293kg (2.85lb)
Installation environment Accessory configuration

Wall

Junction Box
Model:DA-JB4150

or

Junction Box
Model:DA-JB2400

Celling

Junction Box
Model:DA-JB4150

or

Junction Box
Model:DA-JB2400

Pole

Junction Box
Model:DA-JB4150

+

Pole Mount
Model:DA-LM2000

or

Pole Mount
Model:DA-LM2000

+

Junction Box
Model:DA-JB2400

Corner

Corner Mount
Model: DA-RM2000

+

Junction Box
Model: DA-JB2400

or

Junction Box
Model: DA-JB4150

+

Corner Mount
Model: DA-RM2000
