DC-T6224HRXL

License Plate Capture Camera
/ NDAA Compliant
  • Easy installation with DirectIP NVR
  • FullHD (1920 x 1080) resolution
  • Manual Vari-focal lens (f=12 - 50mm)
  • IR LED (20m (License plate capture up to 80km/h) 100m (Surveillance))
  • True wide dynamic range (WDR)
  • Day and night (ICR)
  • Two-way audio
  • Alarm in / out
  • IP66 supports
  • Supports ONVIF
Video
Image Sensor1/2" CMOS
Max. Resolution1920 x 1080
Scanning ModeProgressive Scan
Lens TypeVari-focal
Focal Length12 ~ 50mm
ApertureF1.5 ~ F1.9
Iris ControlP-Iris
Angular Field of ViewWide : 33º(H), 18º(V), 38º(D)
Tele : 9º(H), 5º(V), 10º(D)
Min. IlluminationColor Mode : 0.02 lux @F1.5
BW Mode : 0 lux (IR LED ON)
Dynamic Range120dB (True WDR)
Electronic Shutter SpeedAuto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15)
Day and NightYes (ICR)
IR Distance (LEDs)20m (License plate capture up to 80km/h)
100m (Surveillance)
Image SettingConfigurable Exposure, White Balance, Sharpness
Backlight Compensation-
Mirroring / PivotHorizontal / Vertical / Pivot
Image Stabilizer-
De-fog-
Privacy Masking8 Zones
Intelligent VideoVideo Motion Detection, Active Tampering Alarm, Trip Zone
Video Out-
Network
Video CompressionH.265, H.264 (MP), M-JPEG
Intelligent CodecYes
Bitrate ControlH.264 - CBR / VBR, H.265 - CBR / VBR
Audio CompressionADPCM 16K, G.726, G.711 u-Law, G.711 a-Law
Two-way AudioYes
IP Camera ProtocolDirectIP 2.0, ONVIF
Max. Frame Rate25ips : 1920 x 1080
30ips : 1920 x 1080
Supported Resolution1920x1080, 1280x720, 704x480, 640x360, 352x240
Multi-video StreamingQuadruple Streaming
Network ProtocolsDirectIP 2.0 Protocol, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP,
RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp
SecuritySSL Encryption, Multi-user Authority, IEEE 802.1x, IP Filtering, HTTPS, SSL Encryption
EthernetRJ45 (10/100BASE-T)
Recording Session Buffer (NLTSrec)Yes (Up to 60MB)
Edge Storagemicro SD/SDHC/SDXC, Smart Failover (Up to 512GB)
Alarm and Event
Trigger EventMotion Detection, Alarm in, Audio detection, Tampering, Trip Zone
Event NotificationRemote S/W, Email (with Image)
Audio AlarmYes
Audio In / Out1 / 1
Alarm In / Out2 / 1
Environmental
Vandal Proof Casing-
Outdoor ReadyIP66
Operating Temperature-40°C ~ +60°C (-40°F ~ +140°F)
Operating Humidity0% ~ 90%
Electrical
Power Source100V ~ 240VAC
Power Consumption100-240V~, 50/60Hz, 1.0-0.5A, 50W
ApprovalFCC, CE, KC
Mechanical

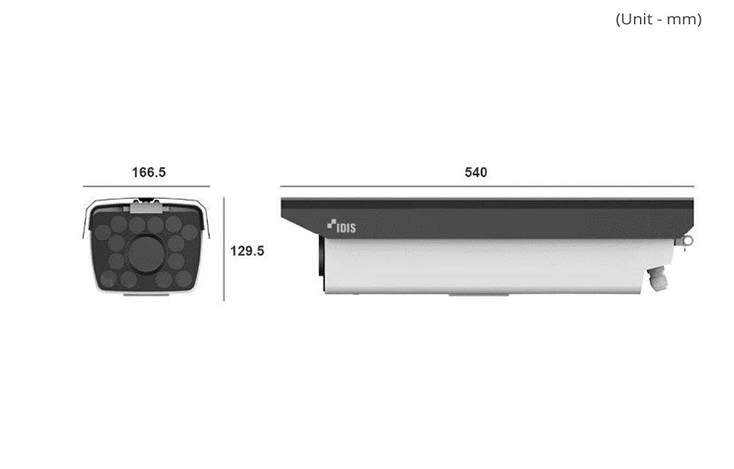

Dimensions166.5mm x 129.5mm x 540mm (6.56" x 5.1" x 21.26")
Weight4.65 kg (10.25 lb)
Installation environment Accessory configuration

Wall

Wall Mount
Model:DA-WM3100

or

Wall Mount
Model:DA-WM3200
