DC-B6206XL

2MP LightMaster Box Camera
/ NDAA Compliant
  • 2MP (1920 x 1080) resolution
  • Optional lens (C/CS mount)
  • micro SD/SDHC/SDXC, Smart Failover (Up to 256GB)
  • Two-way audio
  • Alarm in / out
  • PoE (IEEE 802.3af Class 2), 12V DC
  • Day and night (ICR)
  • True wide dynamic range (WDR)
  • Remote Focus ABF(Auto Back Focus)
  • Easy installation with DirectIP NVR
  • Supports ONVIF
Video
Image Sensor1/2" CMOS
Max. Resolution1920 x 1080
Scanning ModeProgressive Scan
Lens TypeC/CS Mount
Iris ControlP-iris / DC Auto Iris / Manual Iris
Remote FocusAuto Back Focus
Min. IlluminationColor Mode : 0.02 lux @F1.5
BW Mode : 0.002lux @F1.5
Dynamic Range120dB (True WDR)
Electronic Shutter SpeedAuto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15)
Day and NightYes (ICR)
Image SettingExposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control)
Backlight CompensationBLC
Mirroring / PivotHorizontal / Vertical / Pivot
Image Stabilizer-
De-fog-
Privacy Masking8 Zones
Intelligent VideoVideo Motion Detection, Active Tampering Alarm, Trip Zone
Video Out-
Network
Video CompressionH.265, H.264 (MP), M-JPEG
Intelligent CodecYes
Bitrate ControlH.264 - CBR / VBR, H.265 - CBR / VBR
Audio CompressionADPCM 16K, G.726, G.711 u-Law, G.711 a-Law
Two-way AudioYes
IP Camera ProtocolDirectIP 2.0, ONVIF
Max. Frame Rate30ips : 1920 x 1080(WDR)
Supported Resolution1920x1080, 1280x720, 640x360, 352x240
Multi-video StreamingQuadruple Streaming
Network ProtocolsDirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP,
RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2
SecurityDigest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption
EthernetRJ45 (10/100BASE-T)
Recording Session Buffer (NLTSrec)Yes (Up to 60MB)
Edge Storagemicro SD/SDHC/SDXC, Smart Failover (Up to 512GB)
Alarm and Event
Trigger EventMotion Detection, Alarm in, Audio detection, Tampering, Trip Zone
Event NotificationRemote S/W, Email (with Image)
Audio In / Out1(Built In MIC)+1 / 1
Alarm In / Out2/2
Serial Interface.RS485
Environmental
Vandal Proof Casing-
Outdoor Ready-
Operating Temperature-10°C ~ +50°C (+14°F ~ +122°F)
Operating Humidity0% ~ 90%
Electrical
Power Source12VDC, PoE IEEE 802.3af (Class 2)
Power Consumption12V=, 0.43A, 5.16W
PoE, IEEE 802.3af(Class 2), 5W
ApprovalFCC, CE, KC, UL
Mechanical

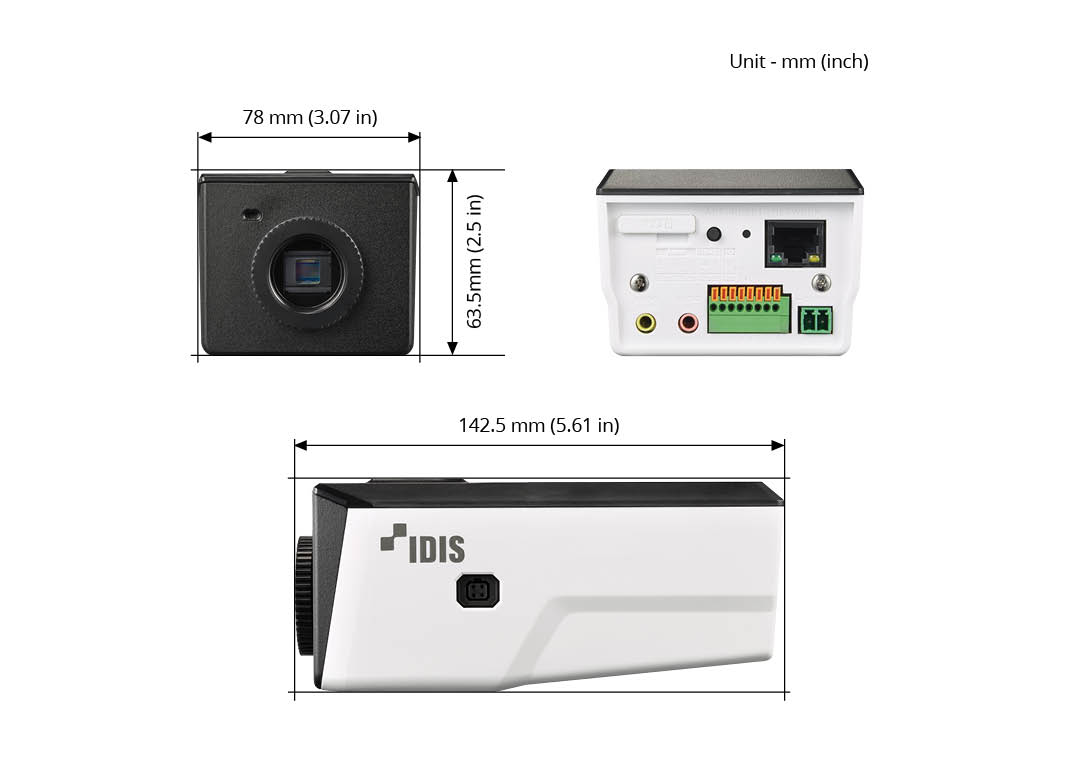

Dimensions78mm x 63.5mm x 142.5mm (3.07" x 2.5" x 5.61")
Weight0.405kg (0.89 lb)
