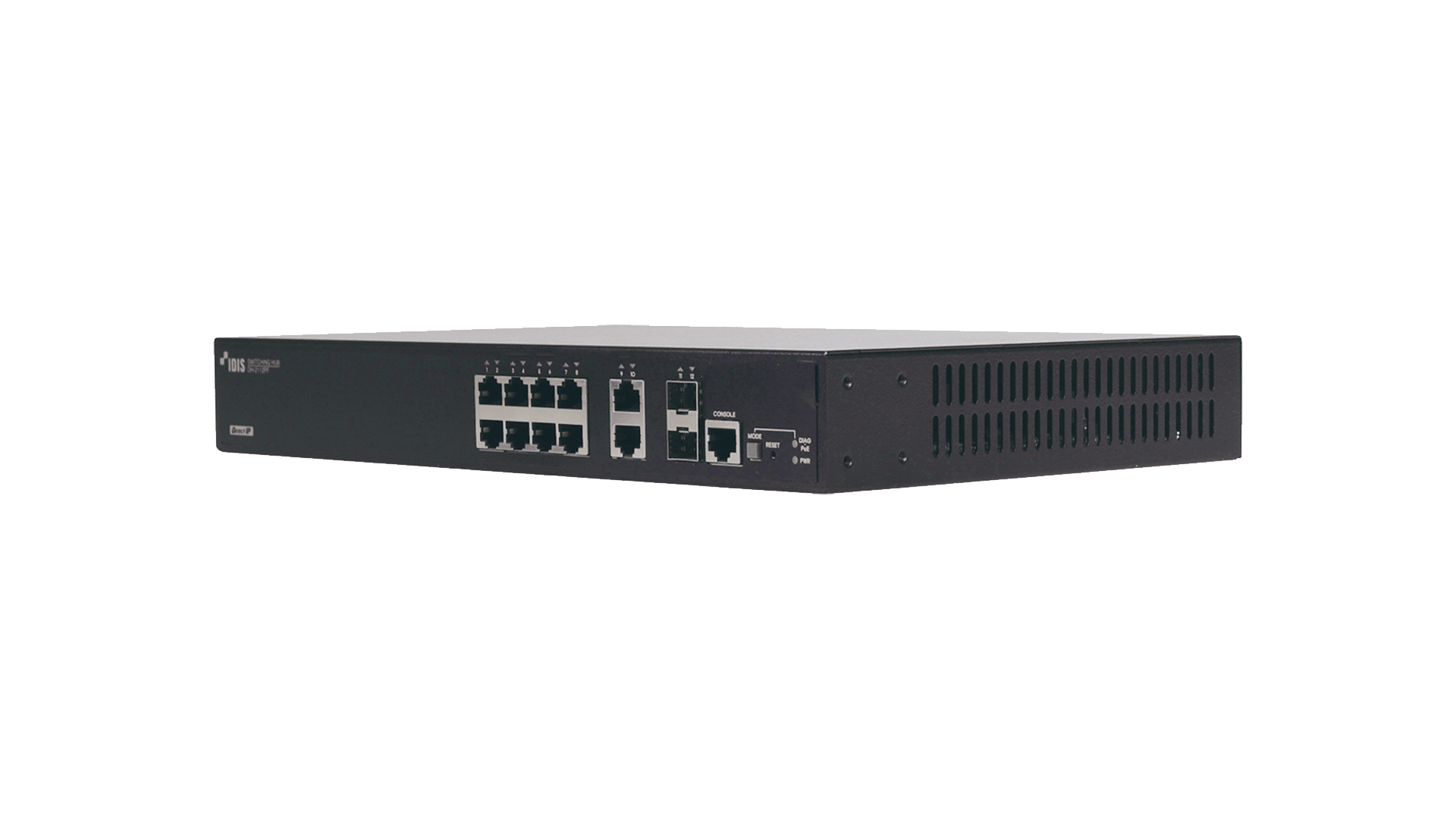

DirectIP® Gigabit PoE Switch
  • Individual port for data transmission to DirectIP® NVR
  • PoE (IEEE 802.3af, IEEE 802.3at) compliant
  • Maximum per-device PoE delivery of 150W available for 1~8 RJ45 ports
  • Central power control for greater network utility
  • Supports 10 RJ45 ports and 2 SFP slots
System Memory128MB SDRAM, 32MB Flash
Switching Capacity24Gbps
Copper Service Port8 RJ45 Connectors (10/100/1000BASE-T)
Copper Uplink Port2 RJ45 Connectors (10/100/1000BASE-T)
Optical Uplink Port2 SFP Slot (1000BASE-X)
PoE Power
supported StandardsIEEE 802.3af-2003 / IEEE 802.3at-2009
PD ConnectionUp to 8 IEEE 802.3af PDs or up to 4 IEEE 802.3at PDs
PSE Power Budget150W

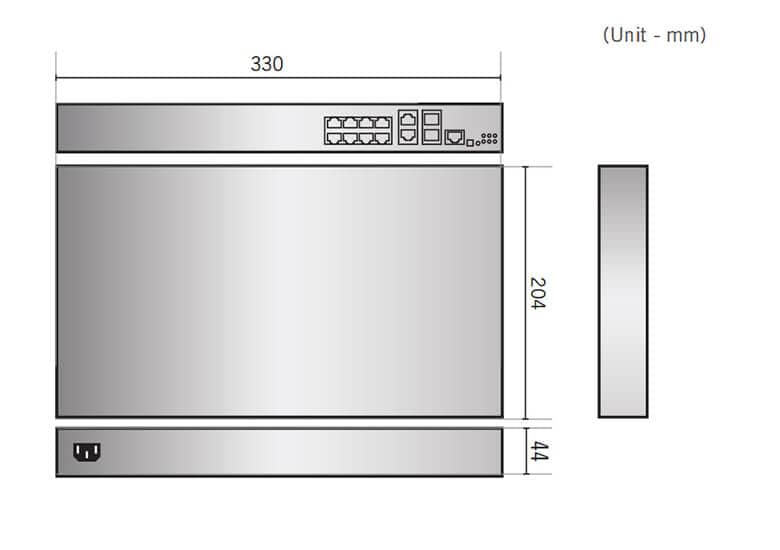

Diemensions(W x H x D)330mm x 44mm x 204mm (13.0" x 1.7" x 8.0")
Weight2.31kg (5.09lb)
Operation Temperature-20°C to 50°C (-4℉~ 122℉)
Power InputAC100-240V, 50-60Hz, 2.1A
Power Consumption200W
ApprovalsFCC, CE, KC
