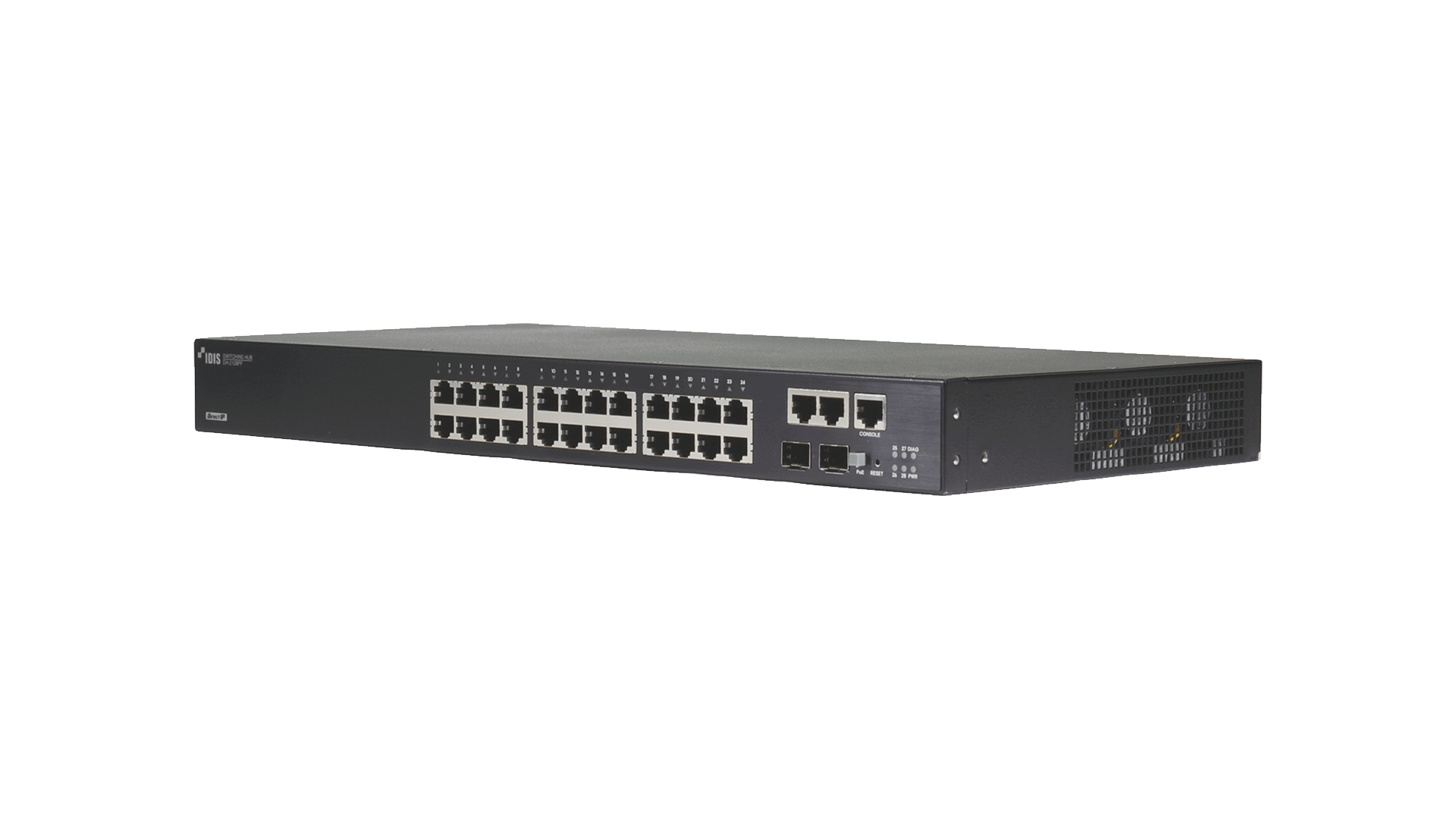

DirectIP® 28 Ports Gigabit PoE Switch
  • Individual port data transmission to DirectIP® NVR
  • PoE (IEEE 802.3af, IEEE 802.3at) compliant
  • Maximum per-device PoE delivery of 400W available for
  • 1~24 RJ45 ports
  • Central power control for greater network utility
  • Supports 26 RJ45 ports and 2 SFP slots
System Memory128MB SDRAM, 32MB Flash
Switching Capacity56Gbps
Copper Service Port24 RJ45 Connectors
Copper Uplink Port2 RJ45 Connectors (10/100/1000BASE-T)
Optical Uplink Port2 SFP Slot (1000BASE-X)
PoE Power
supported StandardsIEEE 802.3af-2003 / IEEE 802.3at-2009
PD ConnectionUp to 24 IEEE 802.3af PDs
or up to 13 IEEE 802.3at PDs
PSE Power Budget400W

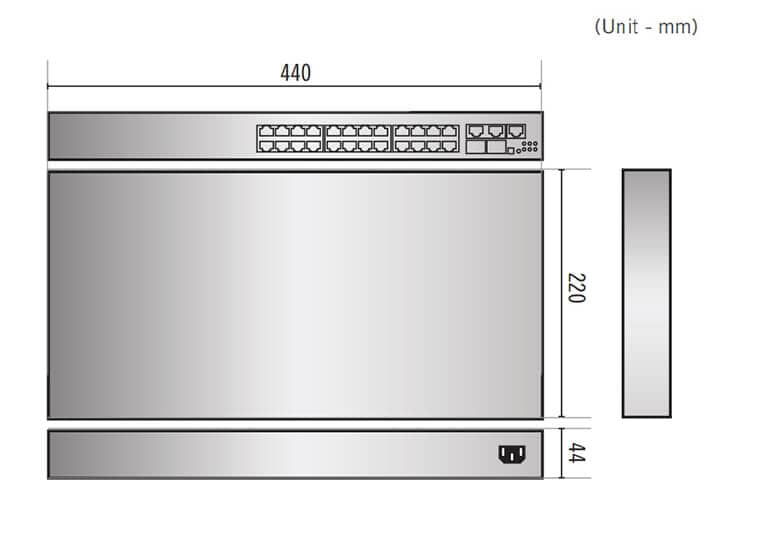

Diemensions(W x H x D)440mm x 44mm x 220mm (17.3" x 1.7" x 8.7")
Weight3.13kg (6.90lb)
Operation Temperature-20°C to 50°C (-4℉~ 122℉)
Power InputAC100-240V, 50-60Hz, 4.8A
Power Consumption450W
ApprovalsFCC, CE, KC
Installation environment Accessory configuration
