DA-ES1104

4-Bay eSATA Storage
Compatible Recorder : DR-21/22/41/42/61/62xx NVR, DR-8364(F)(R) NVR(1), HD-TVI DVR
  • 19 inch rack-mount
  • Supports RAID Levels 0, 1 0, 5
  • SATA to SATA Port Multiplier
  • Maximum of 3.0Gbps transfer rate (SATA II)
  • Installation of the maximum of four hard disk drives
  • Maximised space saving and capacity relative to the cost
  • Easy expansibility to a very large storage pool
(1) DR-8364(F)(R) is compatible with DA-ES1104 when the storage mode of DA-ES1104 is set to RAID 1+0 or RAID 5. Please don't use the RAID 1 or No-RAID mode on DA-ES1104 for compatibility with DR-8364(F)(R) at this time.

DA-ES1104

4-Bay eSATA Storage
Compatible Recorder : DR-21/22/41/42/61/62xx NVR, DR-8364(F)(R) NVR(1), HD-TVI DVR
  • Expandability

  • Speedy

  • Redundancy Protection

CASE STUDY

Retail

Commercial

Banking

Leisure

Hardware
Interface eSATA x1
Number of Drives SATA II x4
Drive Size 3.5
Drive Title SATA II
Performance
Title and Rate SATA II (3Gbps)
RAID 0, 1 + 0, 5
Max Drive Capacity 24TB(up to 6TB per bay)
General

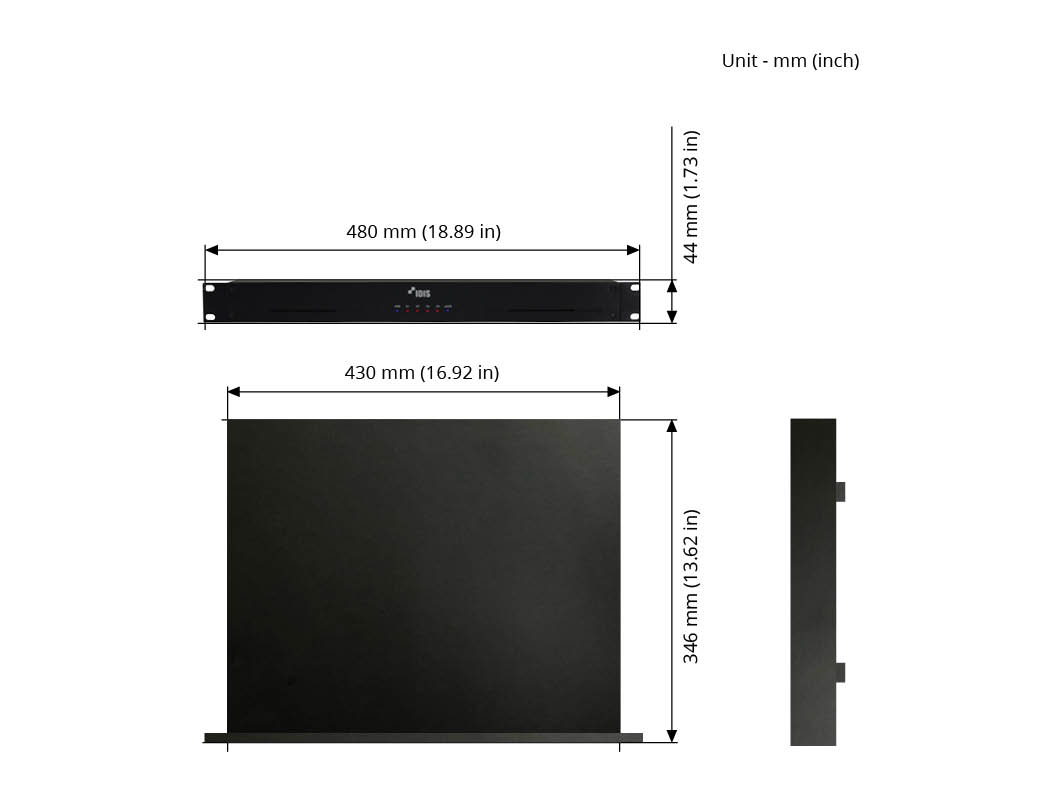

Diemensions(W x H x D) 480mm x 44mm x 346mm (18.9" x 1.7" x 13.6")
Weight 6.4kg (14.11lb)
Operation Temperature 0°C to 45°C (32℉ ~ 113℉)
Power Input 100V ~ 240VAC, 0.6-0.3A, 50/60Hz
Power Consumption Max. 40W
Approvals FCC, CE
[Brochure] DA-ES1104
[Brochure] DA-ES1104
[A&E Specification] DA-ES1104 eSATA Storage A&E Specification v1.0
[Manual] DA-ES1104 Series Manual v1.0
[BIM] External Storage DA-ES1104 BIM File
