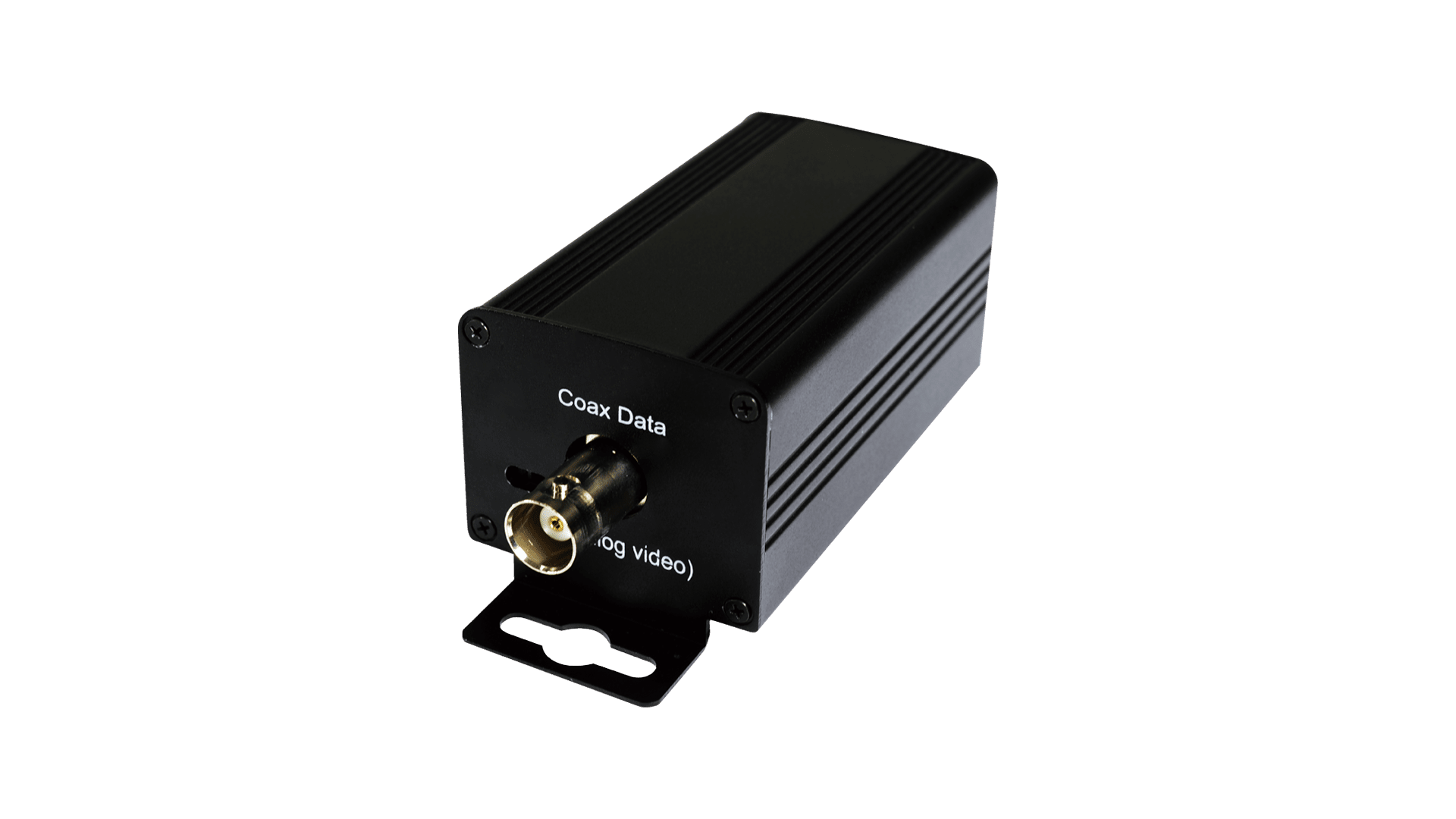

DA-EC1101R / DA-EC1101T

Ethernet over Coax (EoC) Transceiver
  • Makes it possible to install Full HD network cameras using existing coaxial cables.
  • Two-way communication allows use of the product as a transmitter or a receiver.
  • Supports PoE (IEEE 802.3af, IEEE 802.3at)
  • Supports plug and play without setting up special IP addresses.
RJ-45 Ethernet Interface
ConnectivityRJ-45, Auto-MDI/MDI-X sensing
Wire TypeCAT5 or better
DistanceUp to 100m
Speed10/100 Base-T, half/full duplex
Data Throughput85Mbps
Coax Building Wiring Interface
ConnectivityBNC, RG-59/U or similar
Impedance25 to 100 Ω
DistanceUp to 800m
Unit Dimensions (W x H x D)43mm x 39mm x 100mm (1.7" x 1.5" x 3.9")
Unit Weight145g (0.32lbs)
Operation Temperature-10°C ~ 85°C (14°F ~ 185°F)
Power Input48VDC
Power Consumption60W
ApprovalsFCC, CE, KC
Installation environment Accessory configuration
