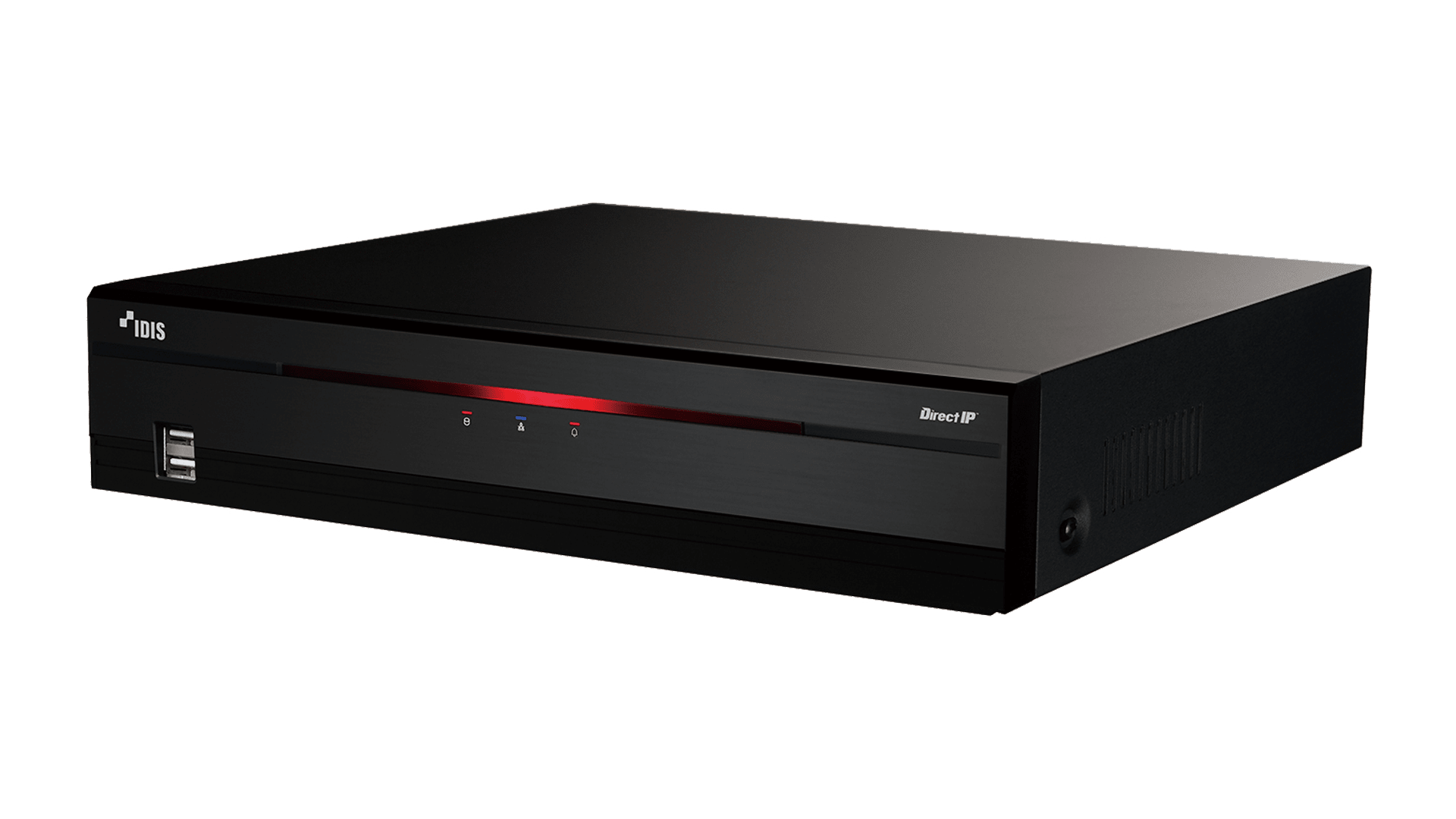

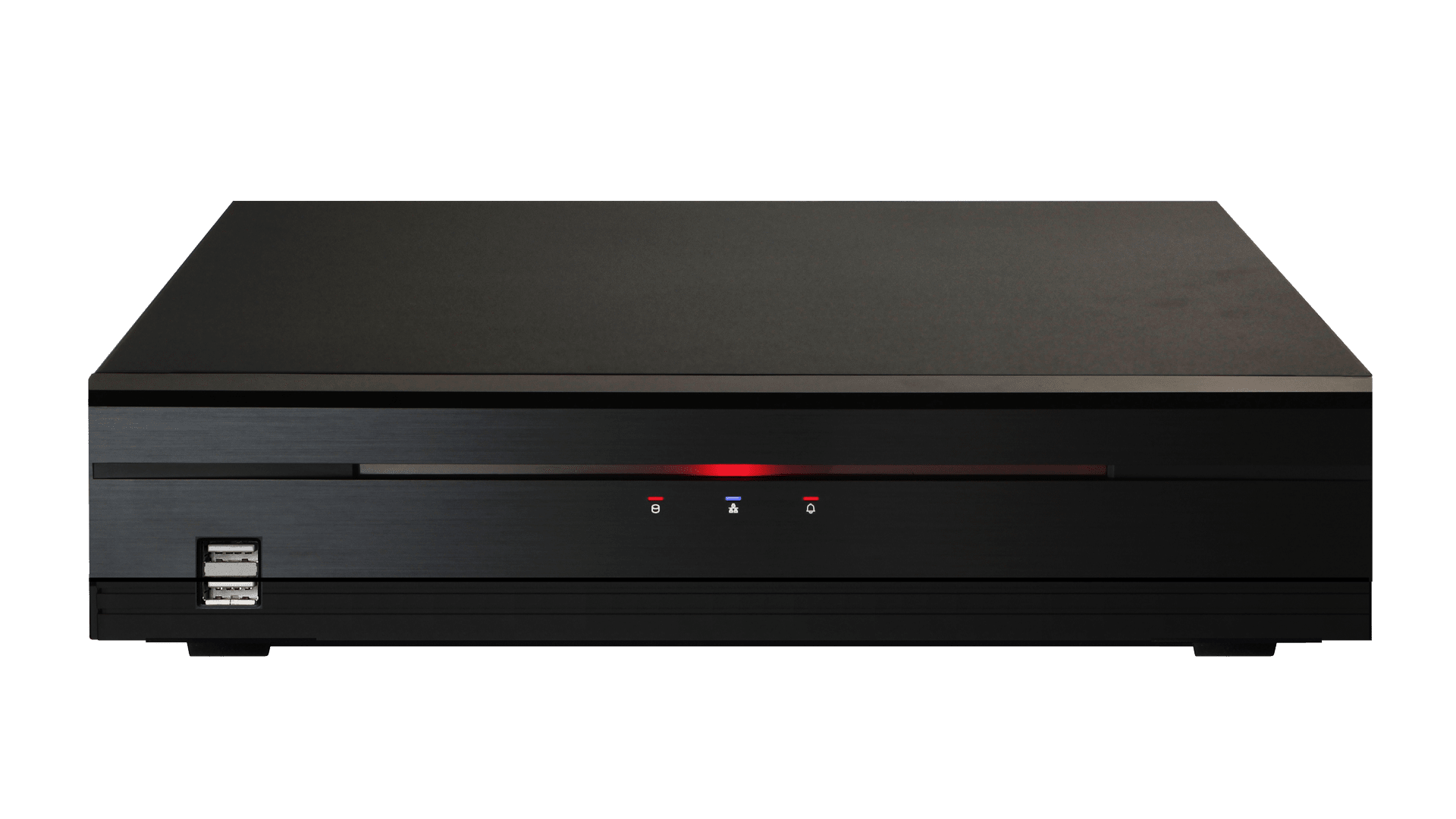

DR-2104P

DirectIP 2100 Series 4 Channel Full HD Recorder
  • Total incoming throughput 84Mbps
  • Up to 120ips Full HD real-time recording
  • Up to 120ips live display
  • Easy to install, set-up, and play with DirectIP cameras
  • Built-in 4 channel PoE Switch
  • Expandable up to 8TB
  • Supports one click network configuration through FEN service
  • Supports third party cameras (Axis, Panasonic, ONVIF)
VIDEO
Video Inputs4 IP Channels
Max. Incoming Throughput84Mbps
Supported CameraDirectIP, AXIS, PANASONIC, ONVIF
Video Outputs1 HDMI, 1 VGA
Display Resolution1920 x 1200 , 1920 x 1080, 1680 x 1050, 1600 x 1200
Display SpeedUp to 120ips
Digital Zoomx2 ~ x12
RECORDING
Max. Throughput32Mbps, 120ips@Full HD
Recording ResolutionUp to 12MP (Depending on IP Camera)
Encoding ModeCBR, VBR *
CompressionH.264
Recording ModeTime-lapse, Event, Pre-event, Panic
Trigger EventsAlarm In, Audio Detection, Motion Detection, Trip-zone, Tampering, Video Loss, Text-in, ANPR, Etc.
PLAYBACK
Performance4ch Full HD Synchronous Playback
Search ModeTime-lapse, Event Log, Motion, Text-in
Digital Zoomx2 ~ x12
STORAGE
HDDSATA x2 (Up to 4TB Capacity for Each Disk)
Total CapacityThe maximum HDD capacity is updated as new HDD models become available.
For the most recent information, please check here
NETWORK
Client ConnectionGigabit Ethernet (Client) x1
Video In ConnectionFast Ethernet (IP Camera) x4
Transmission Speed20Mbps
Camera PowerPoE (IEEE 802.3at Class 4) Supported 4 Ports, 50W
Remote Data ExportIDIS Player, AVI, JPG
Event NotificationEmail (Attach Clip (.cbf) .MP4), Callback to Remote S/W, Push Notification (IDIS Mobile)
Two-way AudioIDIS Center – DC Series, DR Series - DC Series
Client ViewerIDIS Center, IDIS Mobile, IDIS Web, IDIS Solution Suite

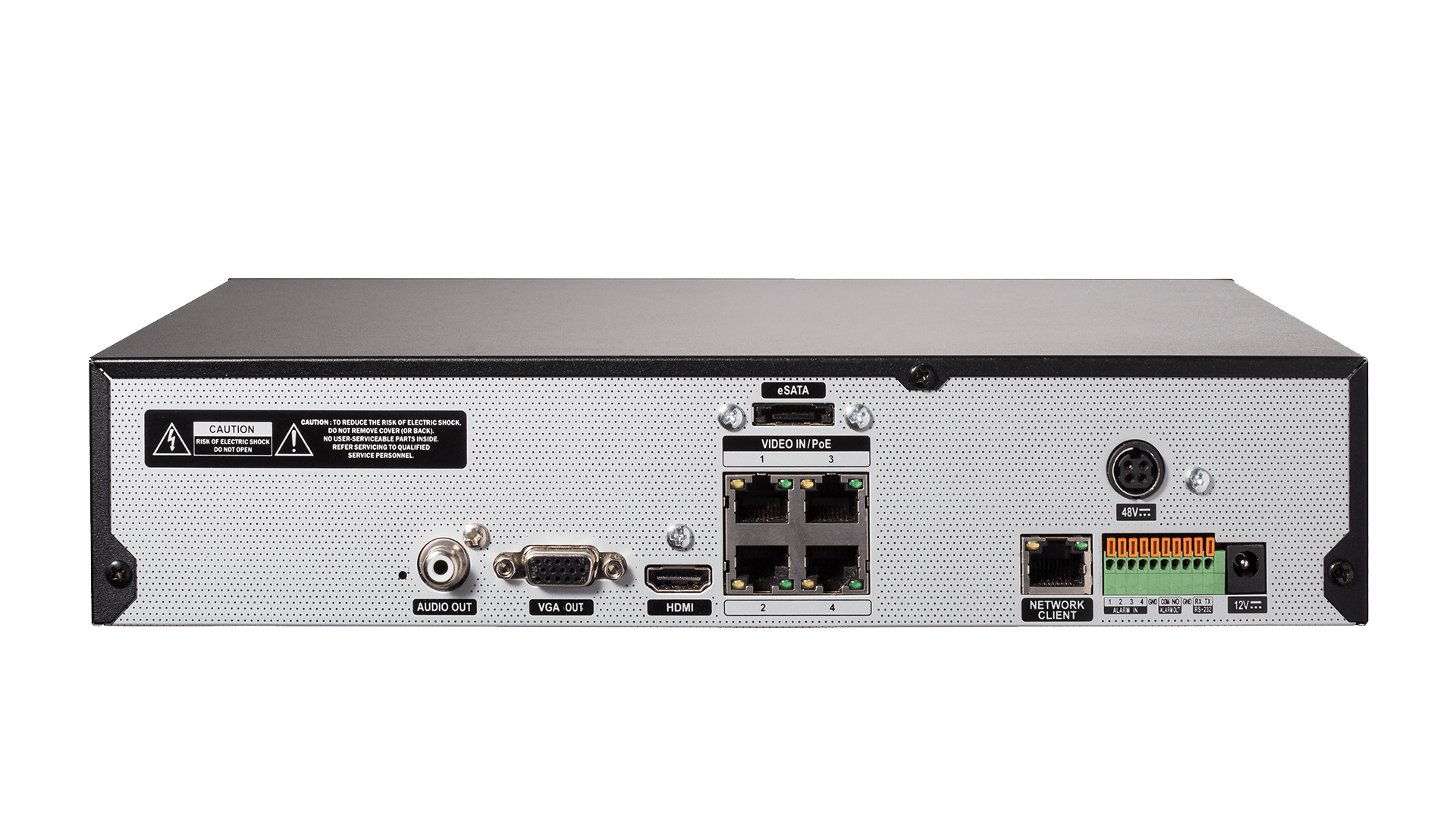

INTERFACE
Audio In/ OutLocal (NVR) : - / 1RCA + 1HDMI
IP Camera : 4 / 4 (Depending on IP Camera)
Alarm In / OutLocal(NVR) : 4 / 1
IP Camera : 4 / 4 (Depending on IP Camera)
Serial InterfaceRS232 (Terminal Block)
USBUSB2.0 x 2
User InterfaceMouse, IR Remote Control, Network Remote Keyboard
GENERAL
Operating SystemEmbedded Linux

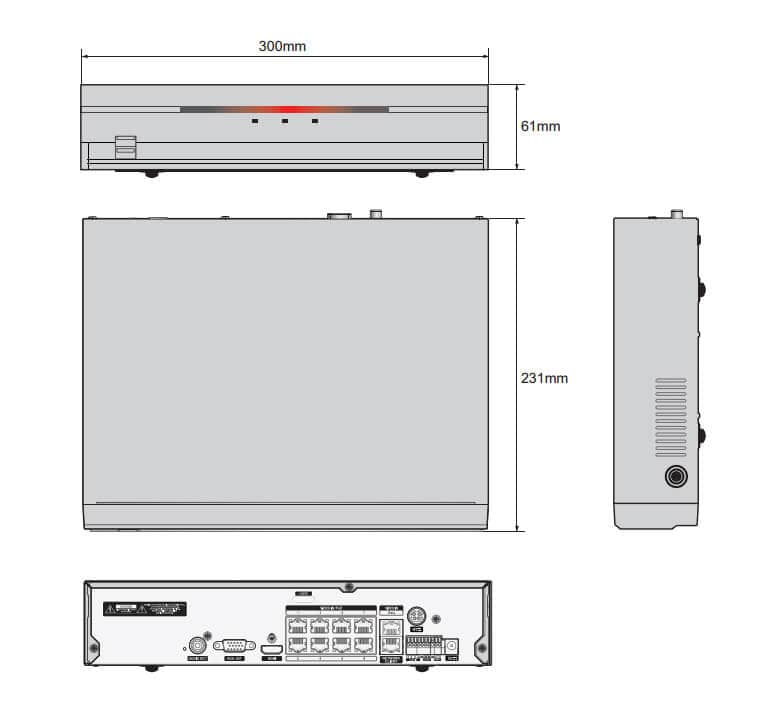

UNIT Dimensions (W x H x D)300mm x 62mm x 231 mm (11.8" x 2.4" x 9.1")
Unit Weight2.6kg (with 1 HDD)
Working Temperature0℃ ~ 40℃
Operating Humidity0% ~ 90%
Power InputDC 12V 2.0A (for NVR), DC48V 1.0A (for PSE)
Power ConsumptionMax. 24W (for NVR), Max. 48W (for PSE)
ApprovalsFCC, CE, KC
