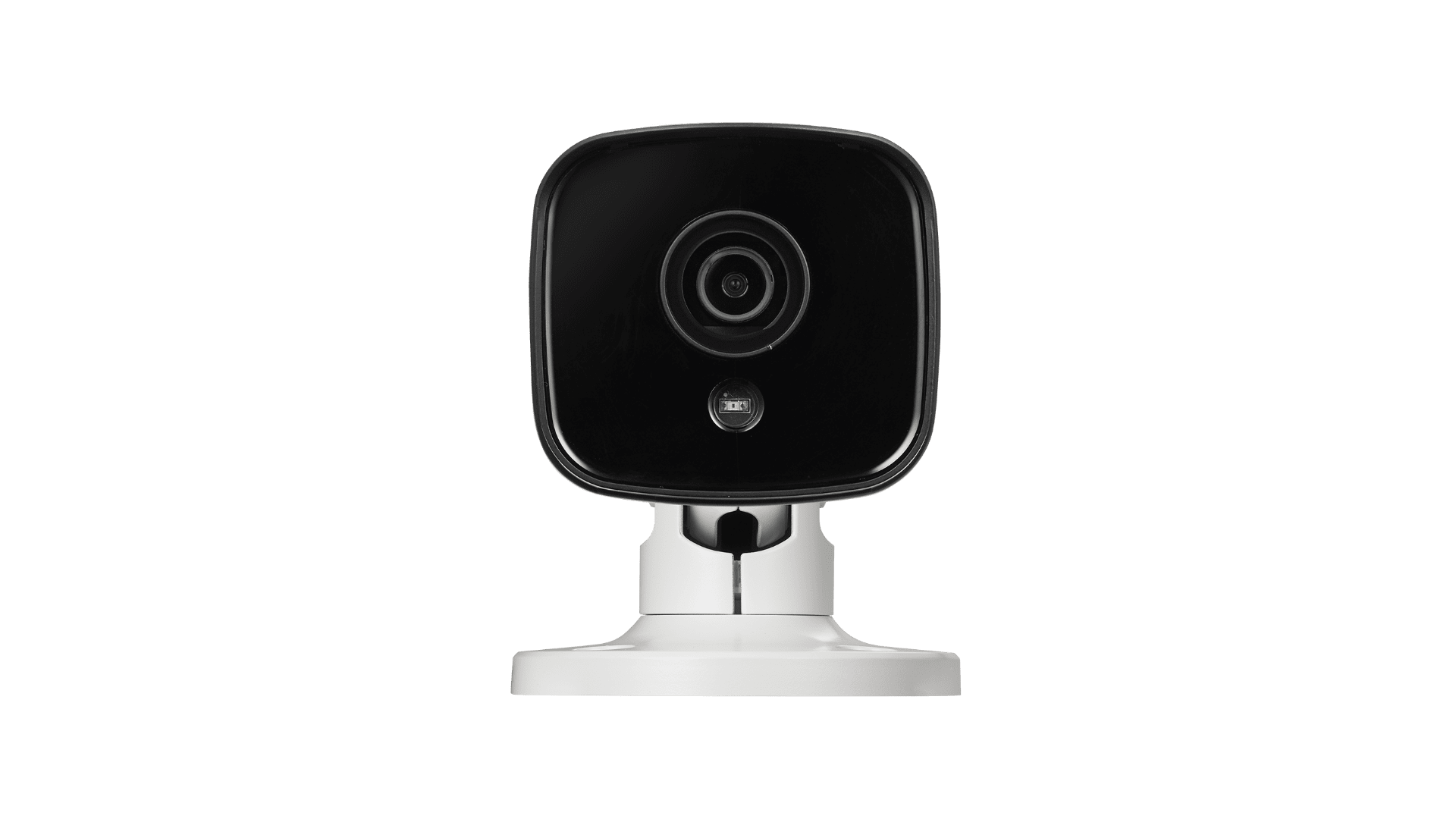

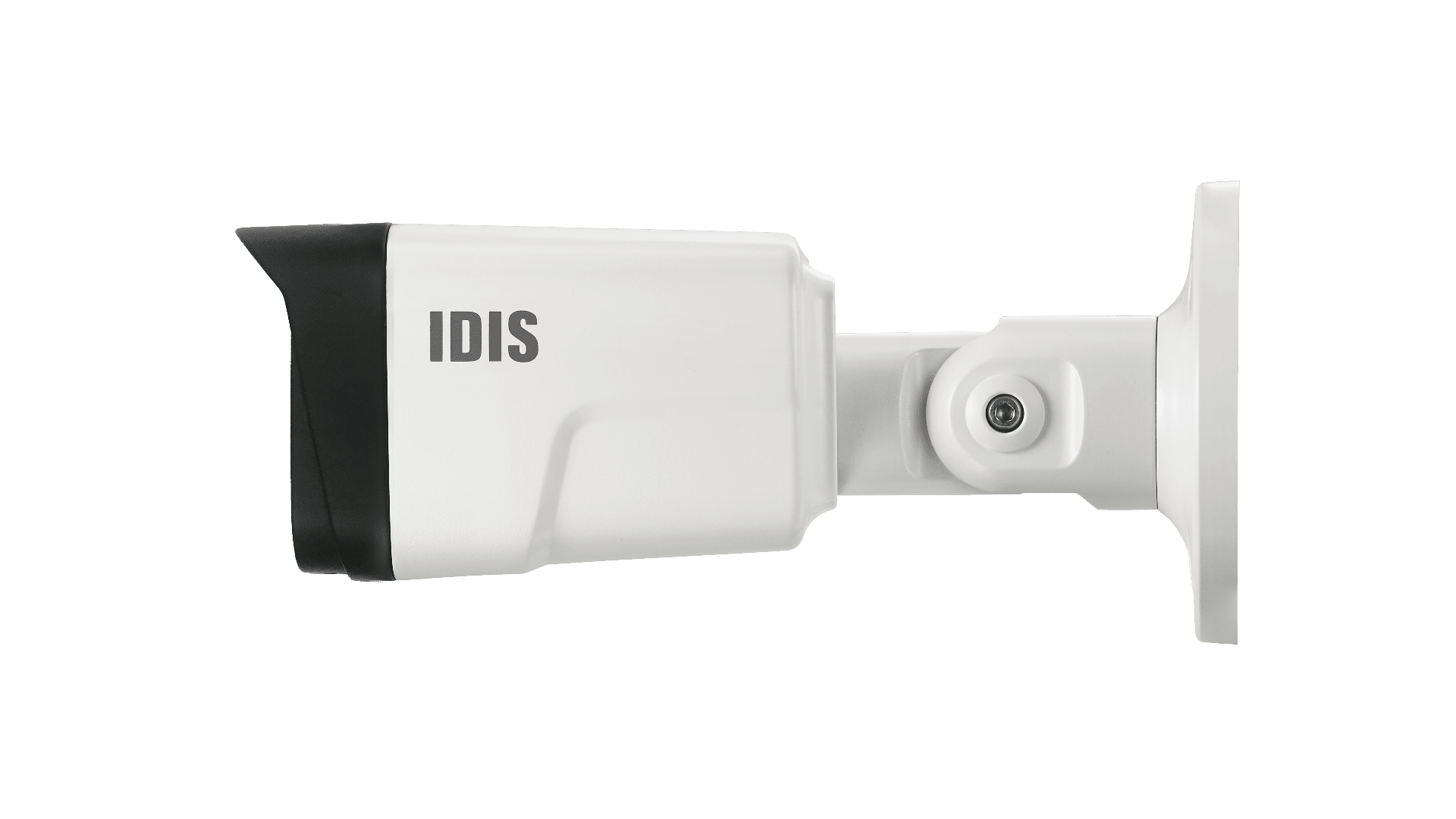

DC-E4213WRX 6.0mm

Full HD IR Bullet Camera
  • Easy installation with DirectIP NVR
  • Full HD (1080p) resolution
  • Fixed-focal lens (f=6.0mm)
  • micro SD/SDHC/SDXC
  • Two-way audio
  • Alarm in / out
  • IK10 / IP67 supports
  • PoE (IEEE 802.3af Class 2)
  • Day and night (ICR)
  • True wide dynamic range (WDR)
  • IR LED (30m / 98.4 ft(4 ea))
  • 3-axis mechanical design for installation
  • Supports ONVIF
Video
Image Sensor1/2.8
Max. Resolution1920 x 1080
Scanning ModeProgressive Scan
Lens TypeFixed-focal
Focal Lengthf=6.0mm
ApertureF 1.6(6.0mm)
Iris ControlFixed Iris
Angular Field of View53.5° (H) 29.5°(V) 62.16°(D) (6.0mm)
Min. IlluminationCOLOR : 0.2 lux @ F1.6
B/W : 0 lux (IR LED ON)(6.0mm)
Dynamic Range120dB (True WDR)
Electronic Shutter SpeedAuto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1~1/5, 1/7.5, 1/15)
Day and Night IR cut filter with auto switch
IR Distance (LEDs)30m / 98.4 ft(4 ea)
Image SettingExposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control)
Backlight CompensationOn / Off
Mirroring / PivotHorizontal / Vertical / Pivot
Image Stabilizer-
De-fogOn / Off
Privacy Masking8 Zones
Intelligent VideoVideo Motion Detection, Active Tampering Alarm, Trip Zone
Video Out -
Network
Video Compression H.265, H.264 (MP), M-JPEG
Intelligent CodecSupported
Bitrate ControlH.265 - CBR / VBR, H.264 - CBR / VBR
Audio CompressionADPCM 16K, G.726, G.711 u-Law, G.711 a-Law
Two-way AudioYes
IP Camera Protocol DirectIP 2.0, ONVIF Profile S
Max. Frame Rate30ips : 1920 x 1080(WDR)
Supported Resolution1920x1080, 1280x720, 704x480, 640x360, 352x240
Multi-video StreamingQuadruple Streaming
Network Protocols DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP,
RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp, SNMPv2
Security SSL Encryption, Multi-user Authority, IEEE 802.1x

IP Filtering, HTTPS
Remote Access Client DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite
EthernetRJ45 (10/100BASE-T)
Recording Session Buffer (NLTSrec)Yes (Up to 60MB)
Edge Storagemicro SD/SDHC/SDXC, Smart Failover (Up to 256GB)
ALARM AND EVENT
Trigger EventMotion Detection, Alarm in, Audio Detection, Tampering, Trip Zone
Event NotificationRemote S/W, Email (with Image)
Audio In/ Out1 / 1
Alarm In / Out1 / 1
Environmental
Vandal Proof CasingIK10
Outdoor ReadyIP67
Operating Temperature-20°C ~ 55°C (-4°F ~ 131°F)
*Starting up at above 0°C (32°F)
Operating Humidity0% ~ 90%
Electrical
Power SourcePoE IEEE 802.3af (Class 2)
Power ConsumptionPoE, IEEE 802.3af(Class 2), 5.6W
ApprovalFCC, CE, KC
Mechanical

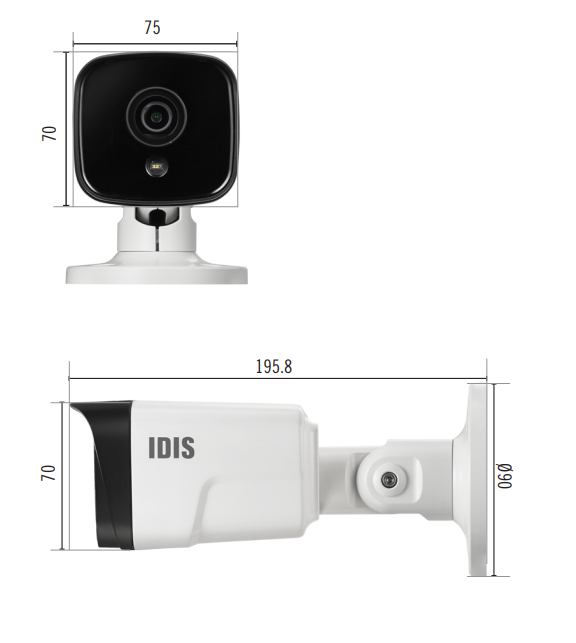

Dimensions (W x H)75mm x 70mm x 197mm (2.95" x 2.75" x 7.75")
Weight0.655 kg
Installation environment Accessory configuration

Wall

Junction Box
Model:DA-JB4150

or

Junction Box
Model:DA-JB2400

Celling

Junction Box
Model:DA-JB4150

or

Junction Box
Model:DA-JB2400

Pole

Junction Box
Model:DA-JB4150

+

Pole Mount
Model:DA-LM2000

or

Pole Mount
Model:DA-LM2000

+

Junction Box
Model:DA-JB2400

Corner

Corner Mount
Model: DA-RM2000

+

Junction Box
Model: DA-JB2400

or

Junction Box
Model: DA-JB4150

+

Corner Mount
Model: DA-RM2000
