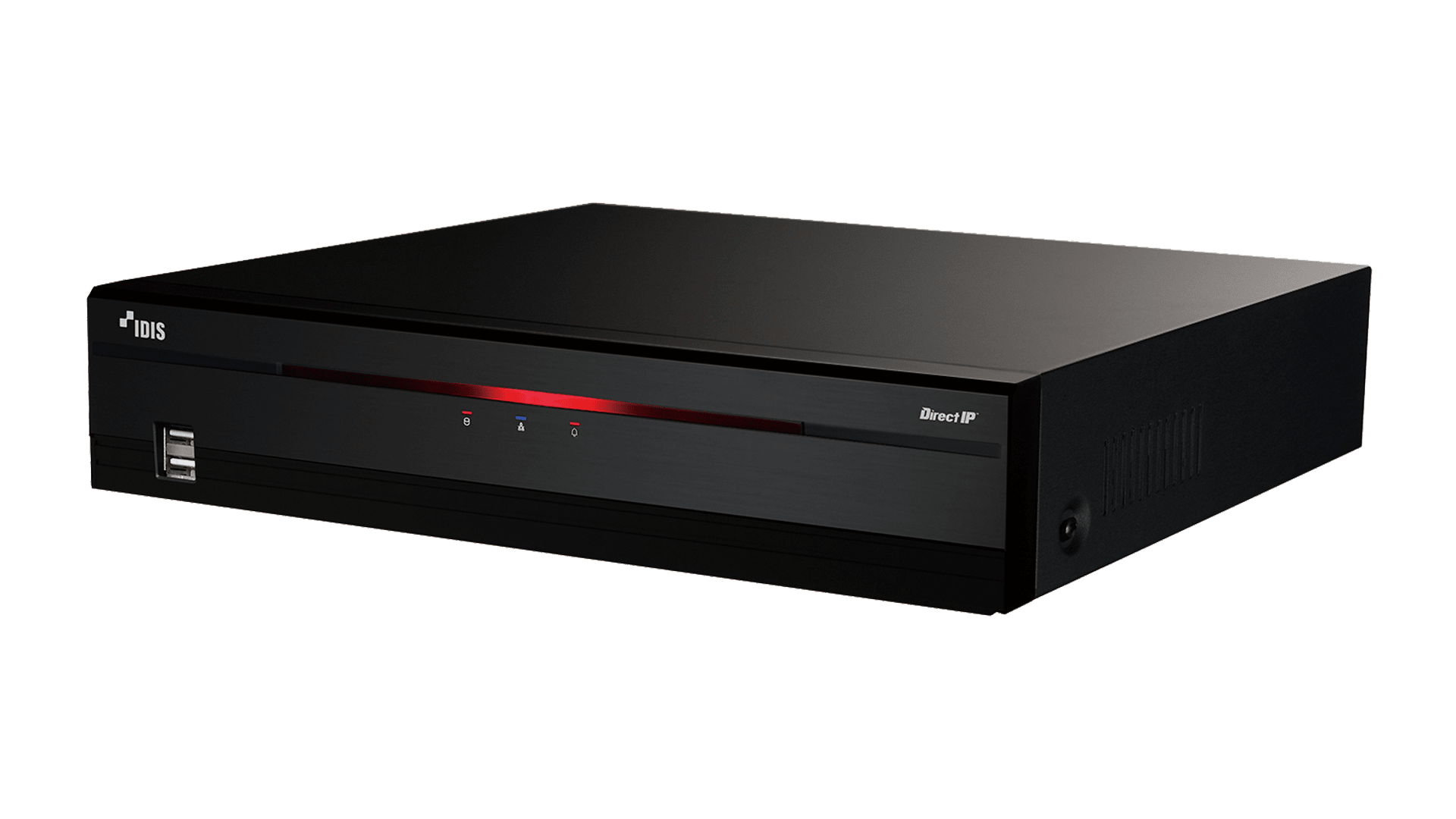

DR-6132P

DirectIP 6100 Series Full HD Recorder
  • Total incoming throughput 300Mbps
  • Up to 480ips Full HD recording
  • Up to 480ips live display
  • Easy to install, set-up, and play with DirectIP cameras
  • Built-in 8 channel Gigabit PoE Switch and expandable up to 32 channel using DirectIP Gigabit PoE Switch
  • Expandable up to 132TB using eSATA storage
  • Supports one click network configuration through FEN service
  • Supports third party cameras (Axis, Panasonic, ONVIF)

DR-6132P

DirectIP 6100 Series Full HD Recorder
  • Direct IP

  • FEN Service

  • PoE

  • ONVIF

CASE STUDY

Banking

Retail

Sports & Leisure

Commercial

VIDEO
Video Inputs32 IP Channels
Max. Incoming Throughput300Mbps
Supported CameraDirectIP, AXIS, PANASONIC, ONVIF
Video Outputs1 HDMI, 1 VGA
Display Resolution1920 x 1200 , 1920 x 1080, 1680 x 1050, 1600 x 1200
Display SpeedUp to 480ips
Digital Zoomx2 ~ x12
RECORDING
Max. Throughput230Mbps, 480ips@Full HD
Recording ResolutionUp to 12MP (Depending on IP Camera)
Encoding ModeCBR, VBR
CompressionH.264
Recording ModeTime-lapse, Event, Pre-event, Panic
Trigger EventsAlarm In, Audio Detection, Motion Detection, Trip-zone, Tampering, Video Loss, Text-in, ANPR, Etc.
PLAYBACK
Performance4ch Full HD Synchronous Playback
Search ModeTime-lapse, Event Log,Thumbnail, Motion, Text-in
Digital Zoomx2 ~ x12
STORAGE
HDDSATA x6, eSATA x4, (Up to 4TB Capacity for Each Disk)
Total Capacity132TB=6TB x (6(Internal) + 4x4(External))
NETWORK
Client ConnectionGigabit Ethernet (Client) x1
Video In ConnectionGigabit Ethernet (IP Camera) x8 +Gigabit Ethernet(Ext) x1
Transmission Speed50Mbps / 100Mbps (BRP Mode)
Camera PowerPoE (IEEE 802.3at Class 4) Supported 8 Ports, 120W
Remote Data ExportIDIS Player, AVI, JPG
Event NotificationEmail (Attach Clip (.cbf) .MP4), Callback to Remote S/W, Push Notification (IDIS Mobile)
Two-way AudioIDIS Center – DC Series, DR Series - DC Series
Client ViewerIDIS Center, IDIS Mobile, IDIS Web, IDIS Solution Suite
INTERFACE
Audio In/ OutLocal (NVR) : 1 RCA / 1RCA + 1HDMI IP Camera : 32 / 32 (Depending on IP Camera)
Alarm In / OutLocal(NVR) : 4 / 1 IP Camera : 32 / 32 (Depending on IP Camera)
Alarm Reset In1
Serial InterfaceRS232 (Terminal Block), RS485 (Terminal Block)
USBUSB 2.0 x 2
User InterfaceFront Buttons, Mouse, IR Remote Control, Network Remote Keyboard
GENERAL
Operating SystemEmbedded Linux

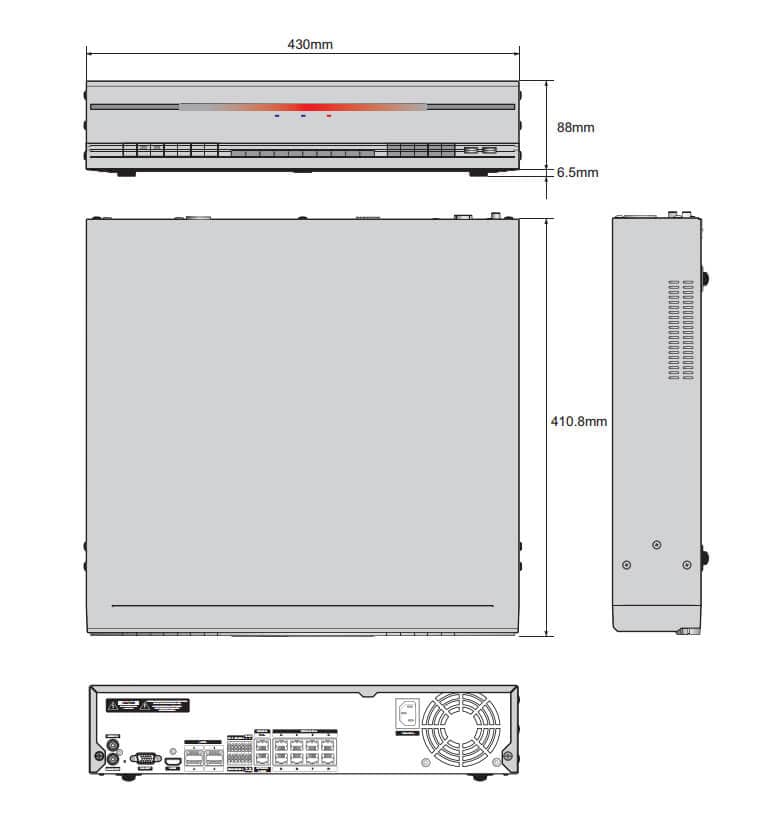

UNIT Dimensions (W x H x D)430mm x 88mm x 410.8mm (16.9" x 3.5" x 16.2")
Unit Weight6.0kg (13.2lb) (with 1 HDD)
Working Temperature0℃ ~ 40℃
Operating Humidity0% ~ 90%
Power InputAC 100-240 V, 50/60Hz, 3.0 ~ 1.5A
Power ConsumptionMax. 200W (with 6 HDDs)
ApprovalsFCC, UL, CE, CB, KC
