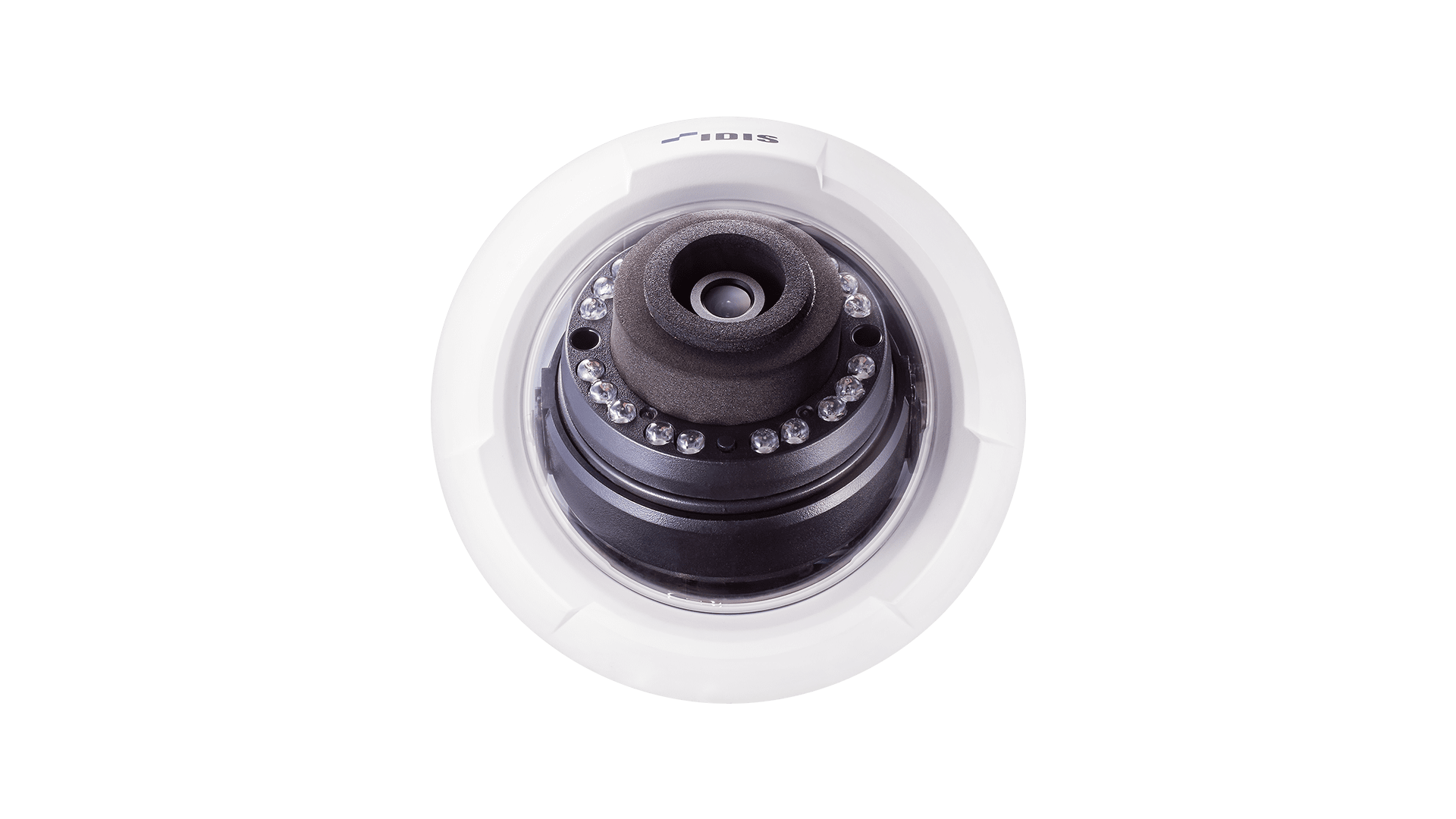

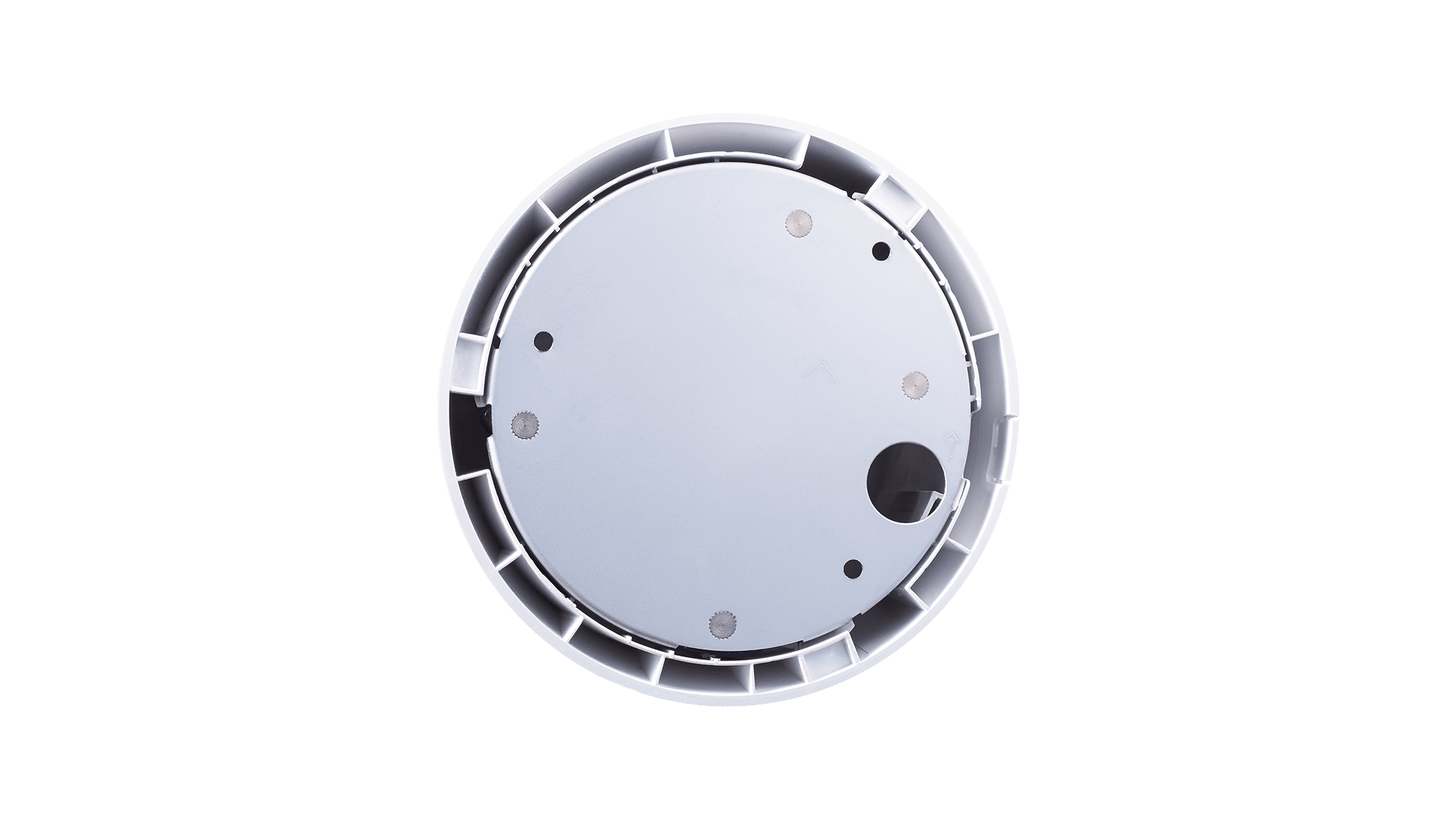

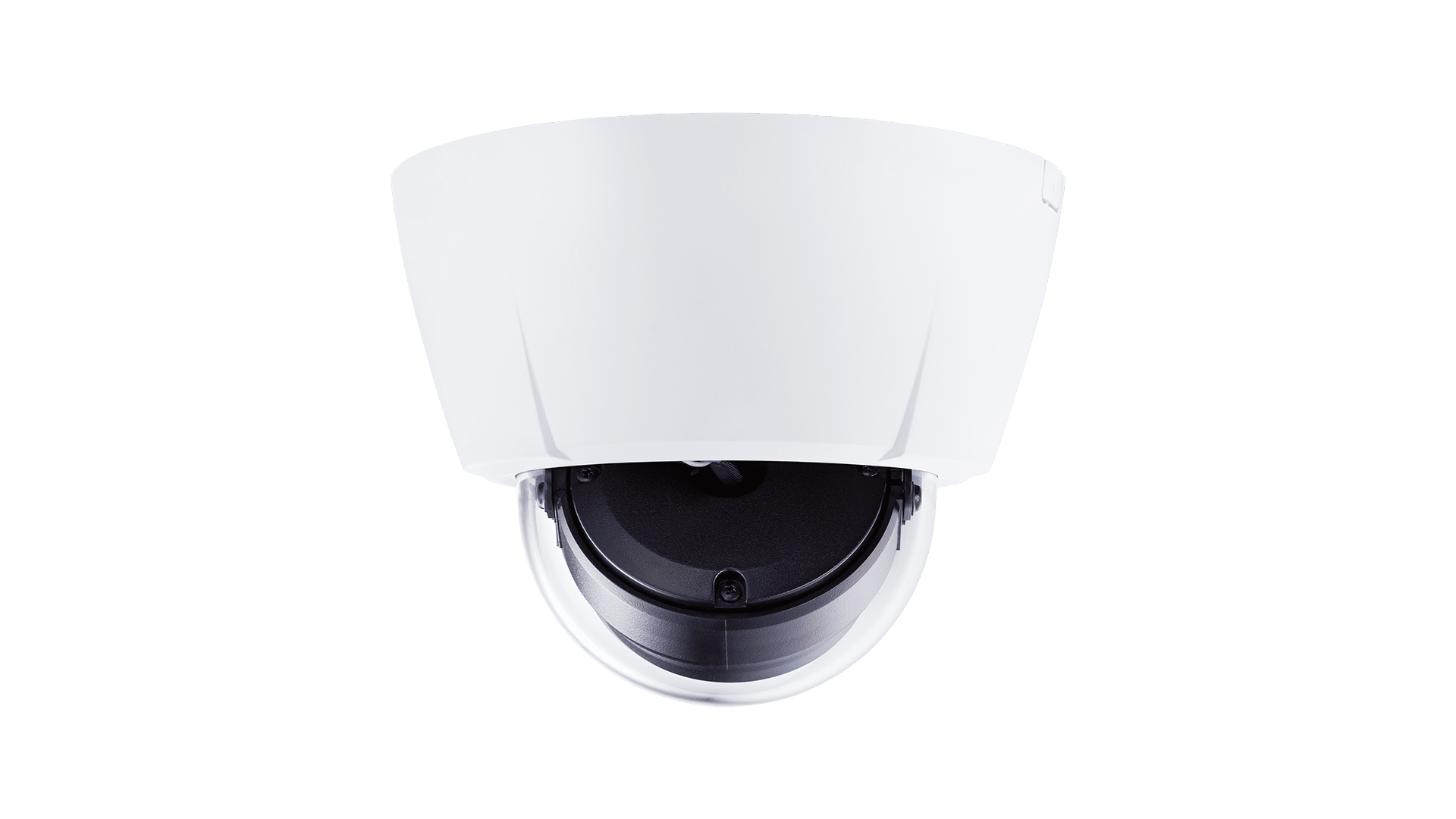

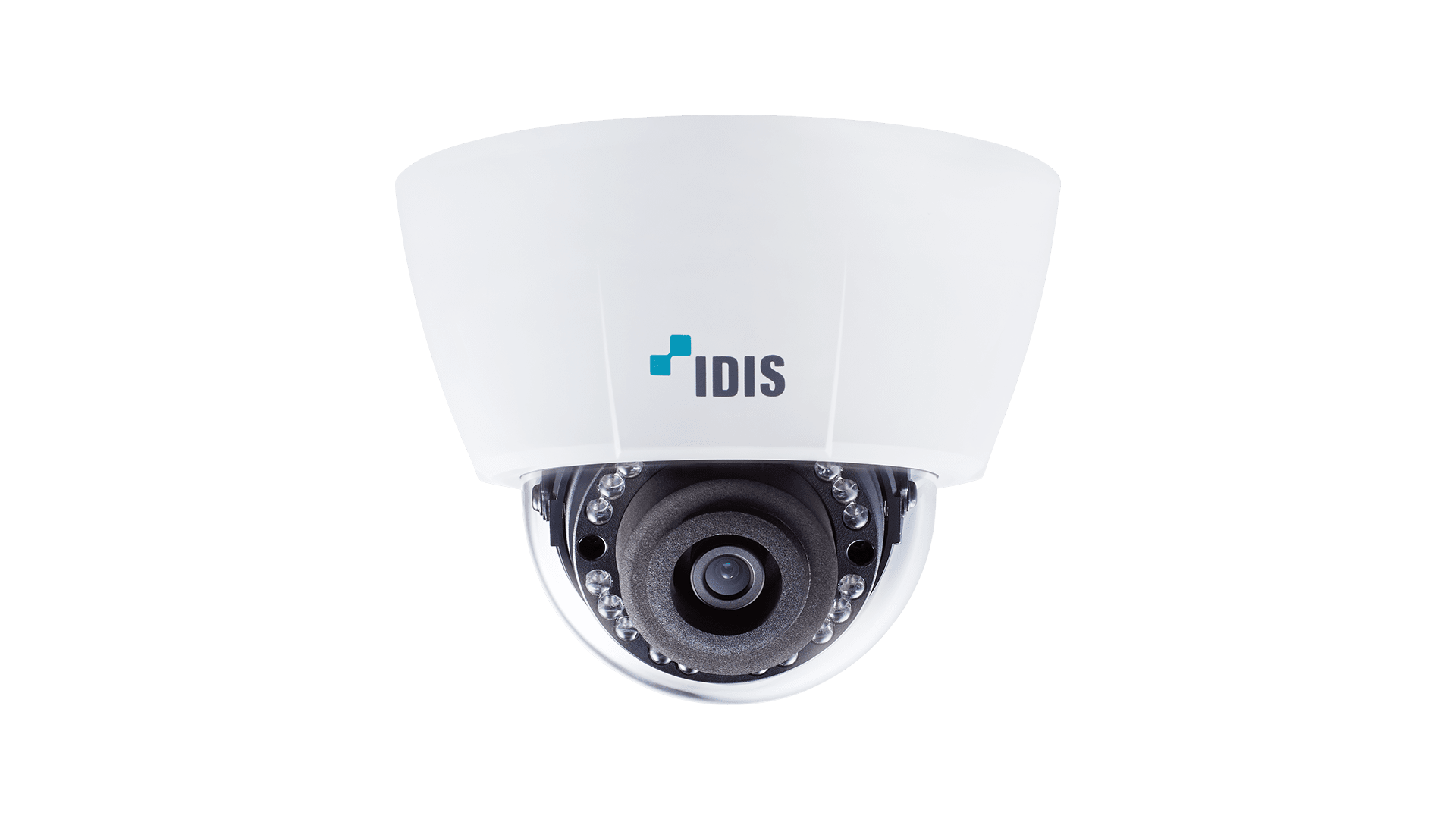

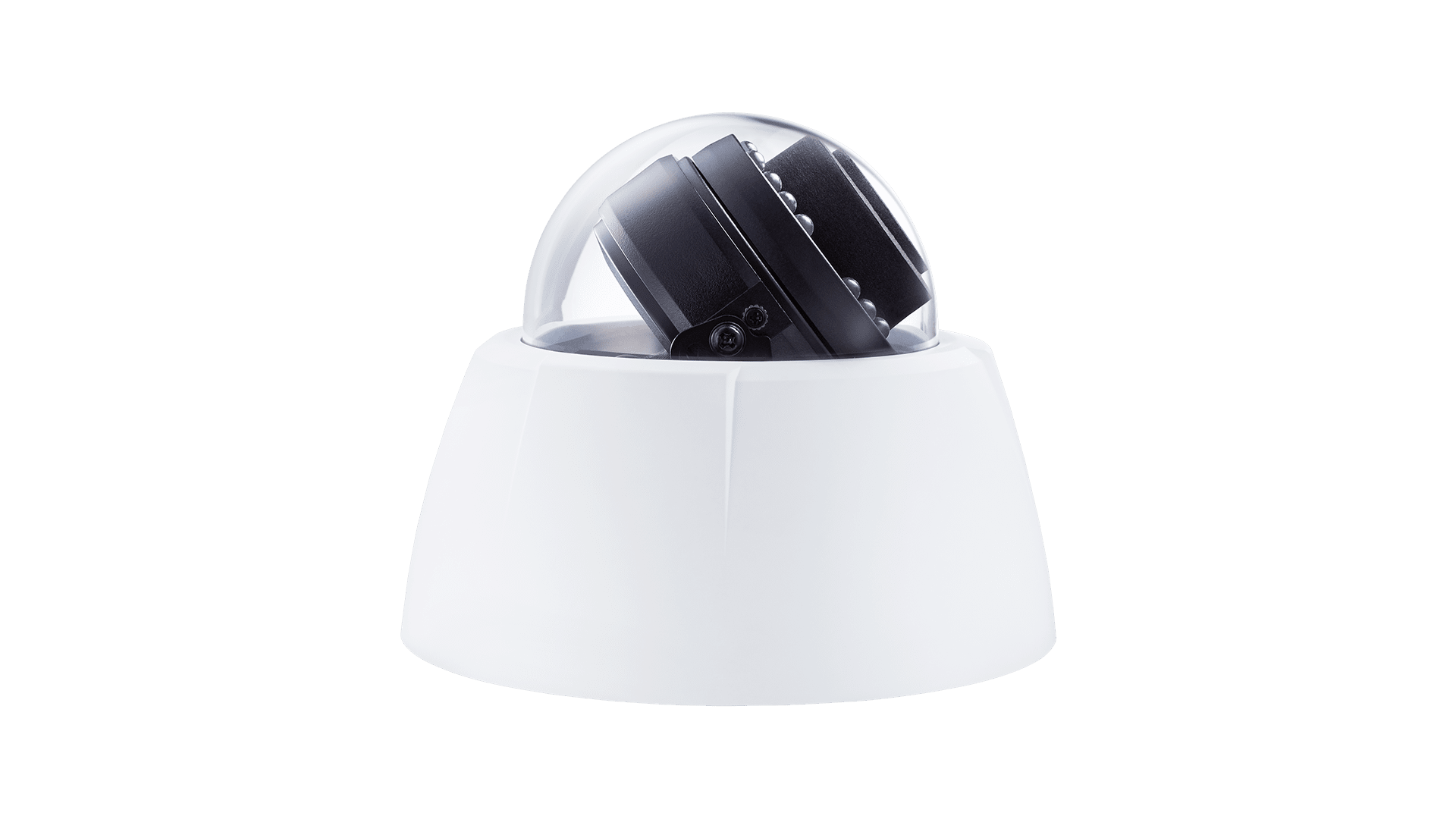

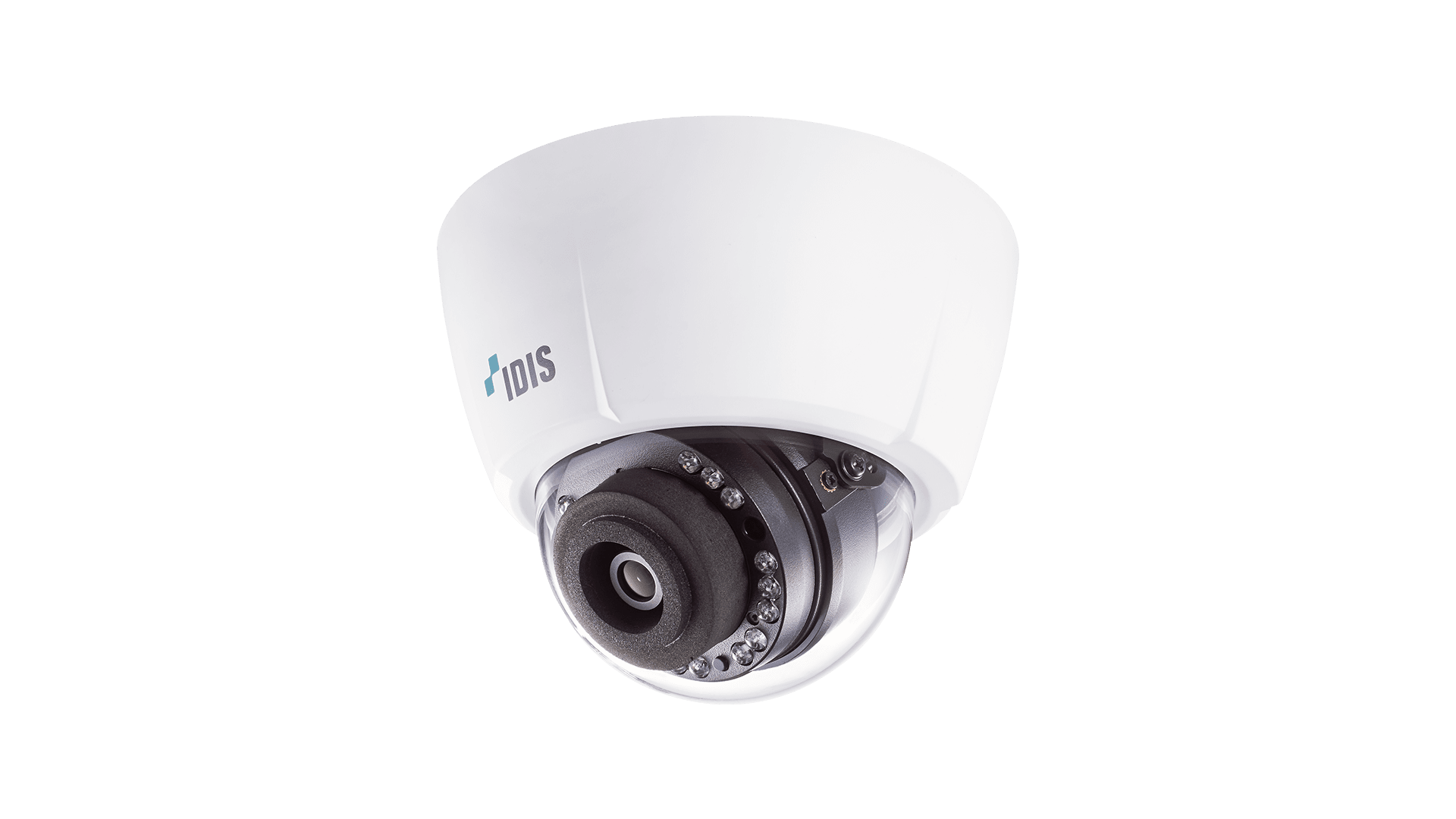

DC-D1212R

Full HD IR Dome Camera
  • Easy installation with DirectIP NVR
  • Full HD (1080p) resolution
  • Fixed-focal lens(f=4.0mm)
  • PoE(IEEE 802.3af class 2)
  • Day&night (ICR)
  • IR LED (Distance : 10m)

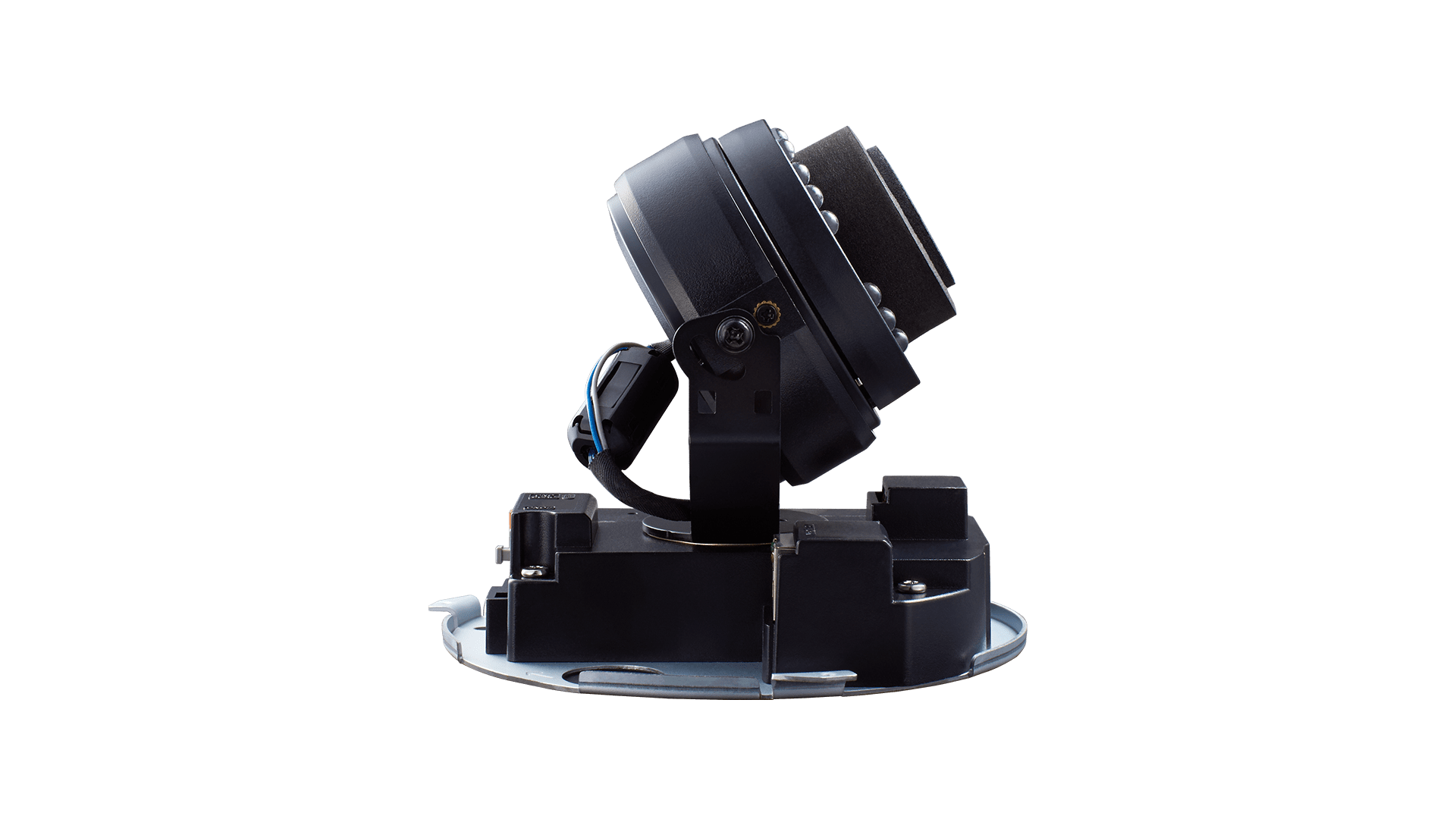

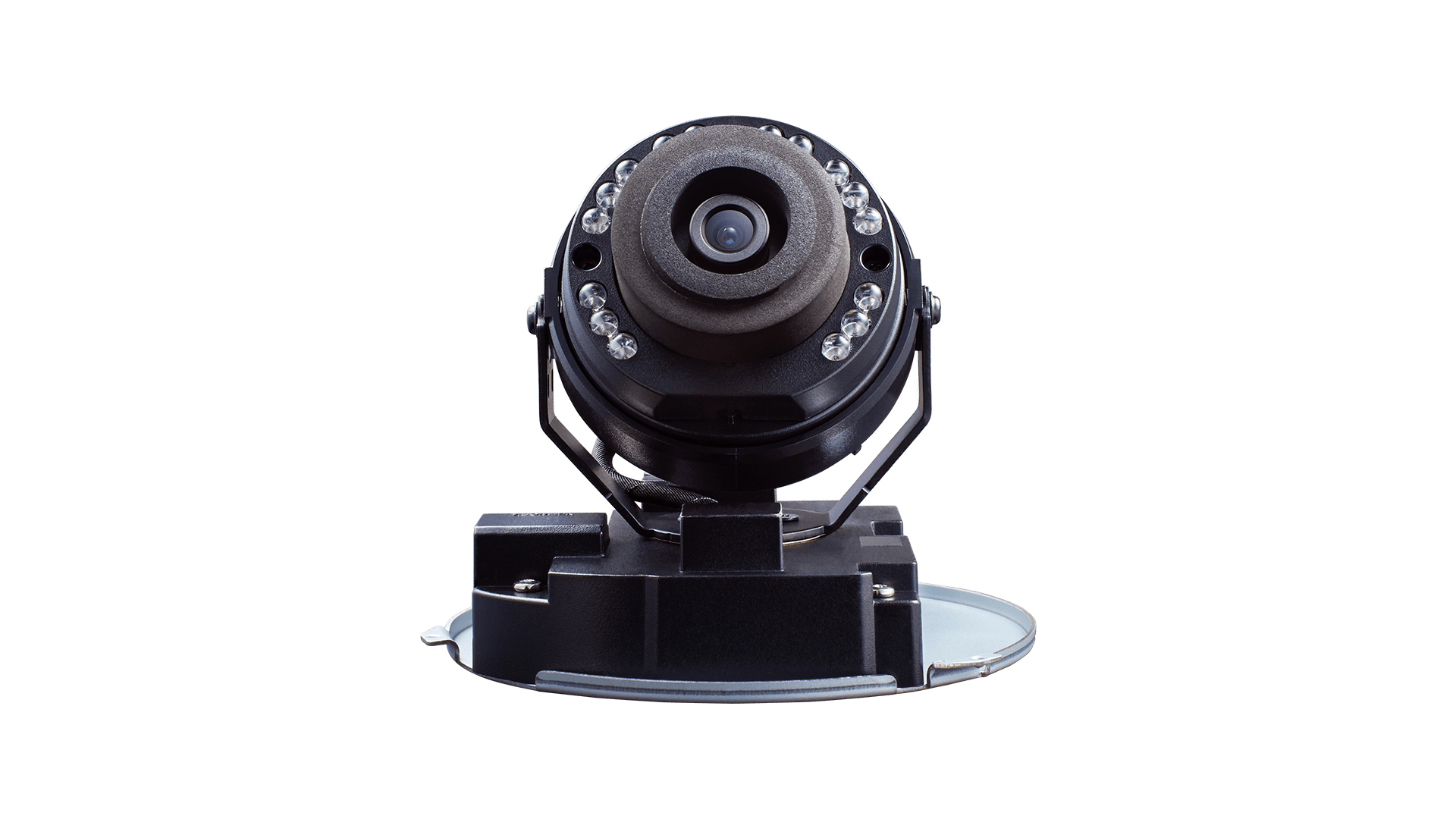

  • 3-axis mechanical design for installation
  • Supports ONVIF

DC-D1212R

Full HD IR Dome Camera
  • Direct IP

  • PoE

  • ONVIF

Video
Image Sensor1/2.7" CMOS
Max. Resolution1920 x 1080
Scanning ModeProgressive Scan
Lens TypeFixed-focal
Focal Lengthf=4.0mm
ApertureF2.0
Iris ControlFixed Iris
Angular Field of View90.3°(H), 47°(V), 108.4°(D)
Pan/Tilt RangePan: -167° ~ 167°, Tilt: 0° ~ 75°, Rotate: -176° ~ 176°
Min. IlluminationCOLOR : 0.2 lux @F2.0 B/W : 0 lux (IR LED ON)
S/N RatioMore than 45dB
Dynamic RangeMore than 70dB
Electronic Shutter SpeedAuto / Manual (1/30 ~ 1/8000), Anti-Flicker, Slow Shutter (1~1/5, 1/7.5, 1/15)
Day and NightIR cut filter with auto switch
IR Distance (LEDs)10 m / 32.8 ft (16 ea)
Image SettingConfigurable Exposure, White Balance, Sharpness
Digital Noise ReductionConfigurable 2DNR
Backlight CompensationOn / Off / HSBLC
Mirroring / PivotHorizontal / Vertical / Pivot
Image Stabilizer-
De-fog
Privacy Masking16 Zones
Intelligent VideoVideo Motion Detection, Active Tampering Alarm, Trip Zone
Video Out1 Terminal Block
Network
Video CompressionH.264 (MP), M-JPEG
Intelligent Codec-
Bitrate ControlH.264 - CBR / VBR
Audio Compression-
Two-way Audio-
IP Camera ProtocolDirectIP, ONVIF Profile S
Max. Frame Rate30ips : 1920 x 1080
Supports Resolution1920x1080, 1280x720, 704x480, 640x360, 352x240
Multi-video StreamingDirectIP™ Mode : Quadruple Streaming

Compatibility Mode : Triple Streaminging
Network ProtocolsDirectIP™ Mode : DirectIP Protocol
Compatibility Mode : RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP
SecurityDirectIP™ Mode : SSL Encryption
Compatibility Mode : Multi-user Authority, IEEE 802.1x  IP Filtering, HTTPS, SSL Encryption
Remote Access ClientDirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite
EthernetRJ45 (10/100BASE-T)
Recording Session BufferYes (Up to 60MB)
Edge Storage-
ALARM AND EVENT
Trigger EventMotion Detection, Tampering, Trip Zone
Event NotificationRemote S/W, Email (with Image)
Audio In/ Out-
Alarm In / Out-
Environmental
Vandal Proof Casing-
Outdoor Ready-
Operating Temperature-10°C ~ +50°C (+14°F ~ +122°F) *Starting up at above 0°C (32°F)
Operating Humidity0% ~ 90%
Electrical
Power SourcePoE (IEEE 802.3af Class 2)
Power Consumption4.8W
ApprovalFCC, CE, KC
Mechanical

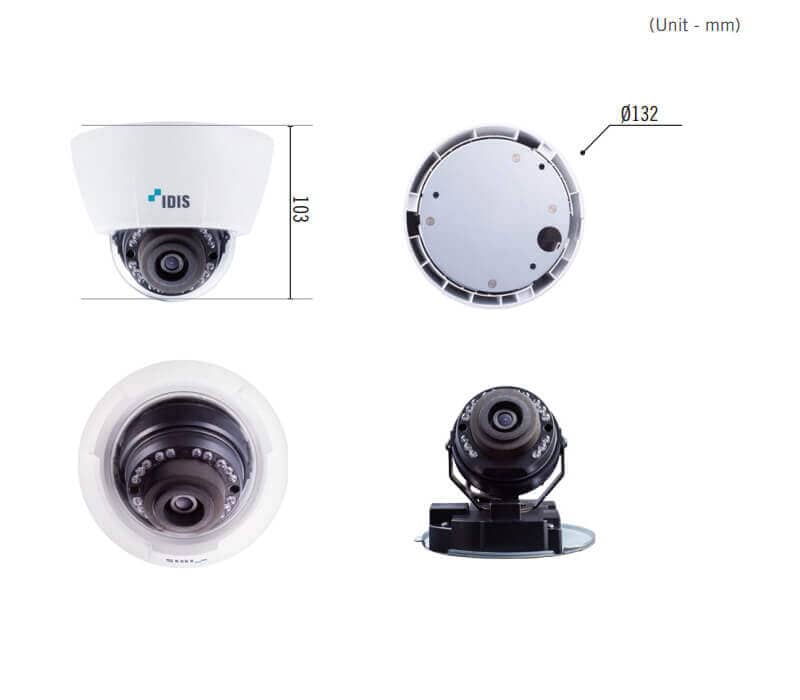

Dimensions (Ø x H)Ø132mm x 103mm (Ø5.2" x 4.06")
Weight0.35 kg (0.78 lb)
