DR-2116P

DirectIP 2100 Series 16 Channel Full HD Recorder
  • Total incoming throughput 116Mbps
  • Up to 240ips Full HD recording
  • Up to 240ips live display
  • Easy to install, set-up, and play with DirectIP cameras
  • Built-in 8 channel PoE Switch and expandable up to 16 channel using DirectIP Gigabit PoE Switch
  • Expandable up to 8TB
  • Supports one click network configuration through FEN service
  • Supports third party cameras (Axis, Panasonic, ONVIF)

DR-2116P

DirectIP 2100 Series 16 Channel Full HD Recorder
  • Direct IP

  • FEN Service

  • PoE

  • ONVIF

CASE STUDY

Banking

Retail

Sports & Leisure

Commercial

VIDEO
Video Inputs16 IP Channels
Max. Incoming Throughput116Mbps
Supported CameraDirectIP, AXIS, PANASONIC, ONVIF
Video Outputs1 HDMI, 1 VGA
Display Resolution1920 x 1200 , 1920 x 1080, 1680 x 1050, 1600 x 1200
Display SpeedUp to 240ips
Digital Zoomx2 ~ x12
RECORDING
Max. Throughput64Mbps, 240ips@Full HD
Recording ResolutionUp to 12MP (Depending on IP Camera)
Encoding ModeCBR, VBR *
CompressionH.264
Recording ModeTime-lapse, Event, Pre-event, Panic
Trigger EventsAlarm In, Audio Detection, Motion Detection, Trip-zone, Tampering, Video Loss, Text-in, ANPR, Etc.
PLAYBACK
Performance4ch Full HD Synchronous Playback
Search ModeTime-lapse, Event Log, Motion, Text-in
Digital Zoomx2 ~ x12
STORAGE
HDDSATA x2 (Up to 4TB Capacity for Each Disk)
Total Capacity8TB=4TB x 2
NETWORK
Client ConnectionGigabit Ethernet (Client) x1
Video In ConnectionFast Ethernet (IP Camera) x8 +Gigabit Ethernet(Ext) x1
Transmission Speed20Mbps
Camera PowerPoE (IEEE 802.3at Class 4) Supported 8 Ports, 50W
Remote Data ExportIDIS Player, AVI, JPG
Event NotificationEmail (Attach Clip (.cbf) .MP4), Callback to Remote S/W, Push Notification (IDIS Mobile)
Two-way AudioIDIS Center – DC Series, DR Series - DC Series
Client ViewerIDIS Center, IDIS Mobile, IDIS Web, IDIS Solution Suite
INTERFACE
Audio In/ OutLocal (NVR) : - / 1RCA + 1HDMI IP Camera : 16 / 16 (Depending on IP Camera)
Alarm In / OutLocal(NVR) : 4 / 1 IP Camera : 16 / 16 (Depending on IP Camera)
Alarm Reset In-
Serial InterfaceRS232 (Terminal Block)
USBUSB2.0 x 2
User InterfaceMouse, IR Remote Control, Network Remote Keyboard
GENERAL
Operating SystemEmbedded Linux

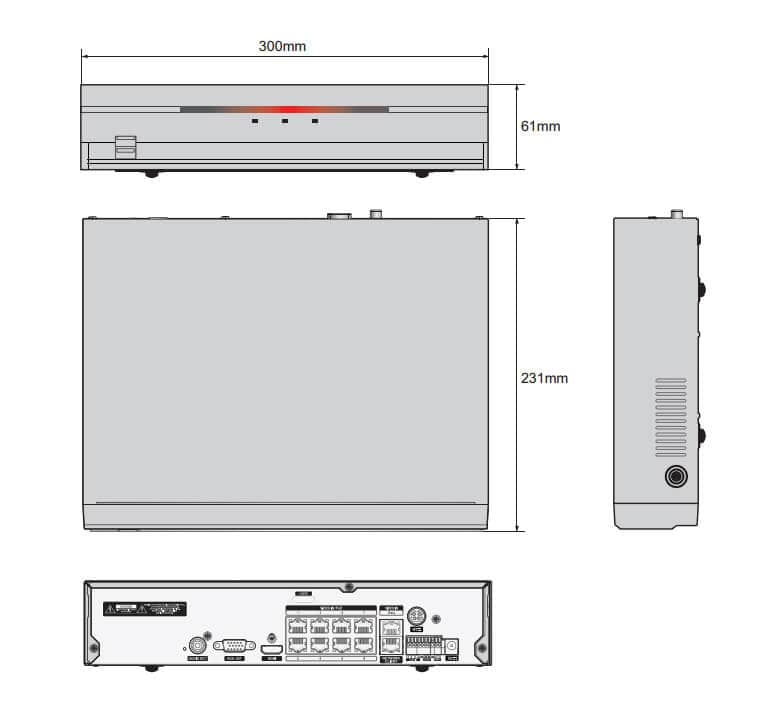

UNIT Dimensions (W x H x D)300mm x 62mm x 231mm
Unit Weight2.6kg (with 1 HDD)
Working Temperature0℃ ~ 40℃
Operating Humidity0% ~ 90%
Power InputDC 12V 2.0A (for NVR), DC48V 1.0A (for PSE)
Power ConsumptionMax. 24W (for NVR), Max. 48W (for PSE)
ApprovalsFCC, CE, KC
